Données techniques
| Généralités | |
|---|---|
| Structure | Basic Contact Probe |
| Type/famille | F100HP |
| Pas (mm/mil) | 2,54 / 100 |
| Température | -45°C...+80°C |
| Définition complémentaire | HP |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 33.3 |
| Hauteur hors tout (mm) | 8.4 |
| Diamètre du style de pointe (mm) | 1.5 |
| Diamètre du fût (mm) | 1.37 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau du piston | Beryllium copper |
| Revêtement du piston | Progressive |
| Matériau du fût | Bronze |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Silver |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 130 |
| Force du ressort (cN) | 200 |
| Course nominale (mm) | 4.3 |
| Course maximale (mm) | 6.4 |
| Précision de pointage +/- (mm) | 0.08 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 5 |
| Résistance de contact typique (mΩ) | 40 |
Graphiques
Beschreibung des Produkts

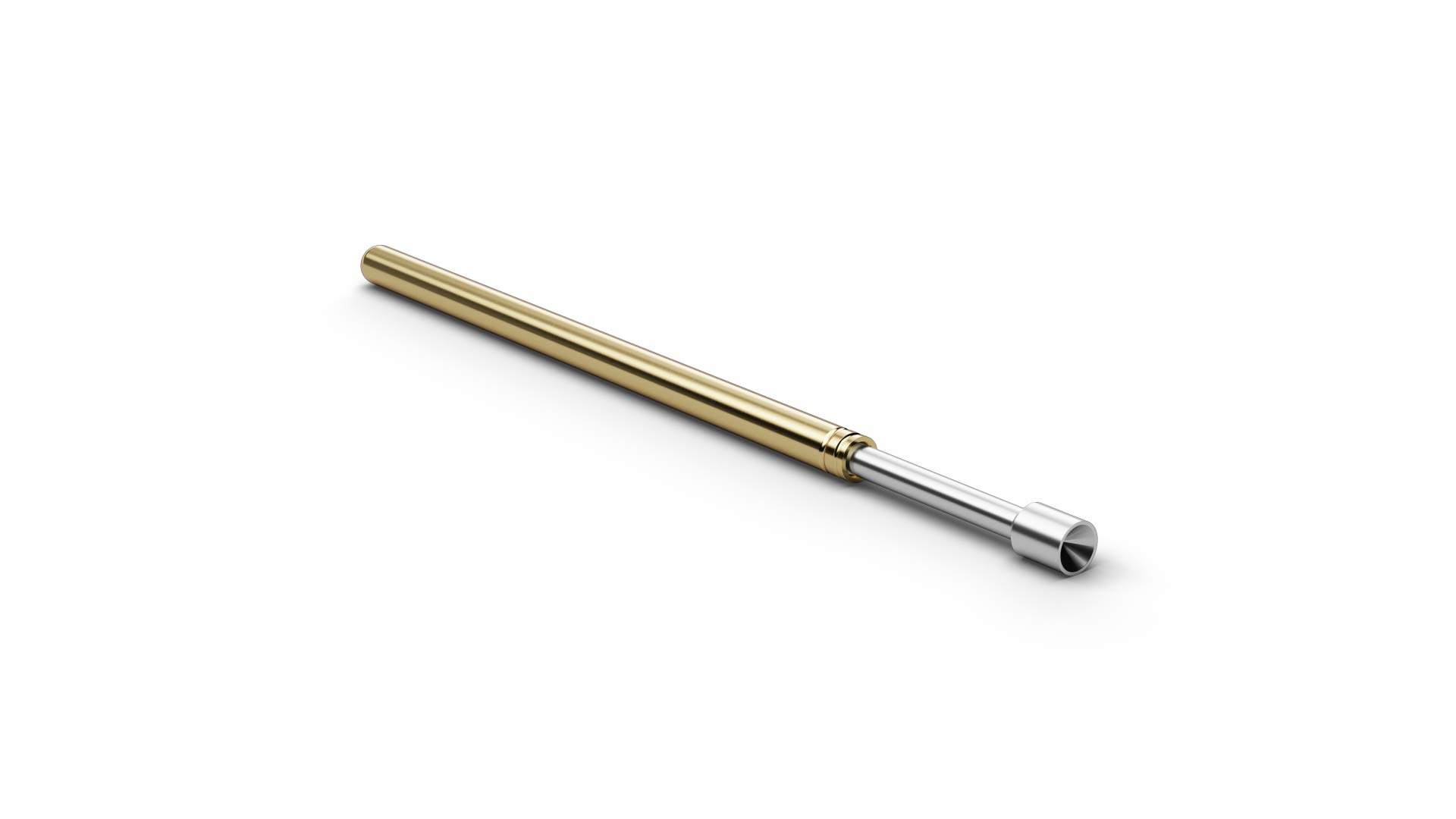

The Basic Contact Probe F10005B150P200HP (item number 1135348) is a spring-loaded probe for temporary electrical contact with test points. With tip style 05 (Concave stepped), F10005B150P200HP combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F10005B150P200HP combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.5 mm. F10005B150P200HP operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10005B150P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. Two features address difficult surface conditions on F10005B150P200HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
