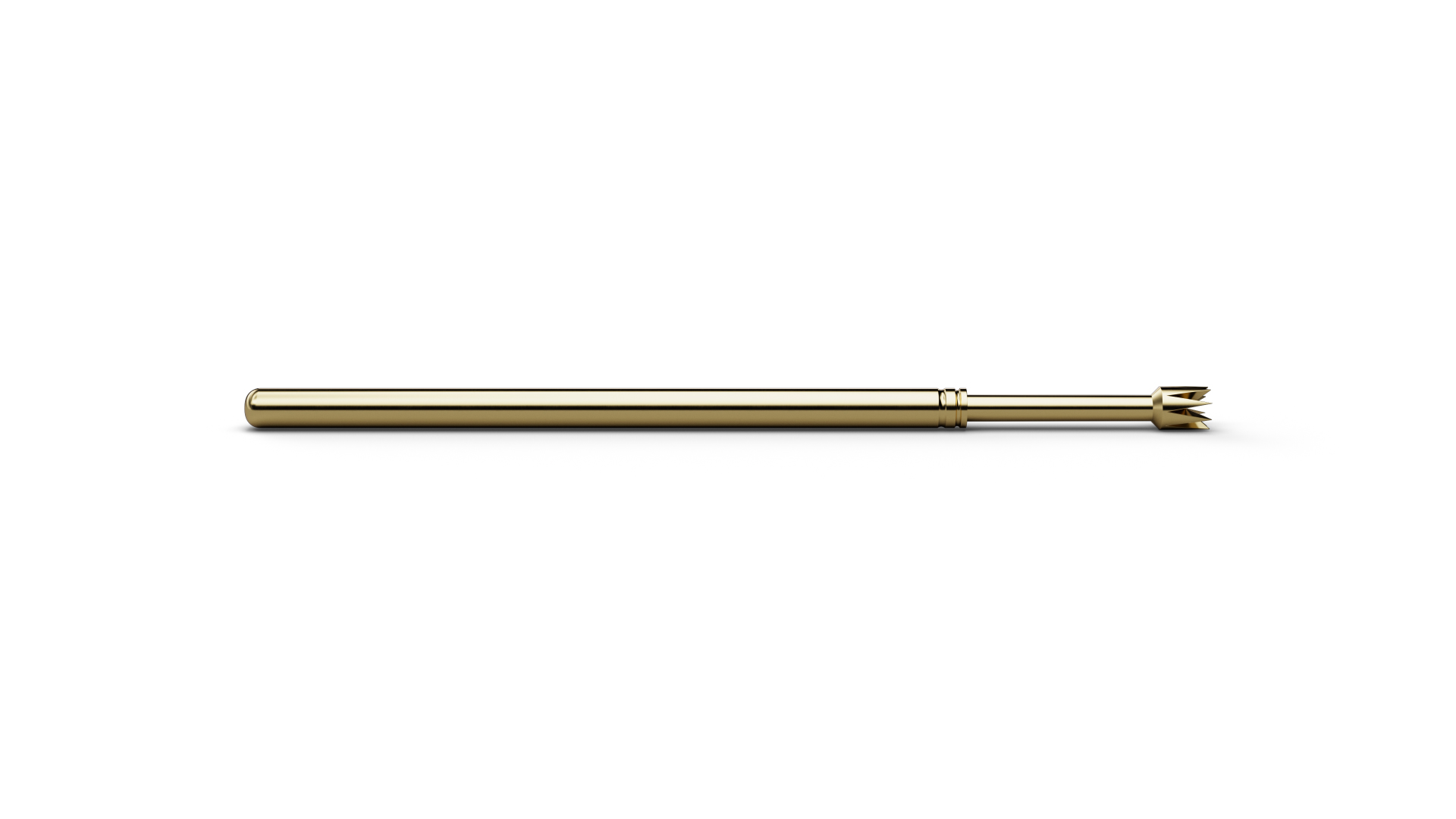

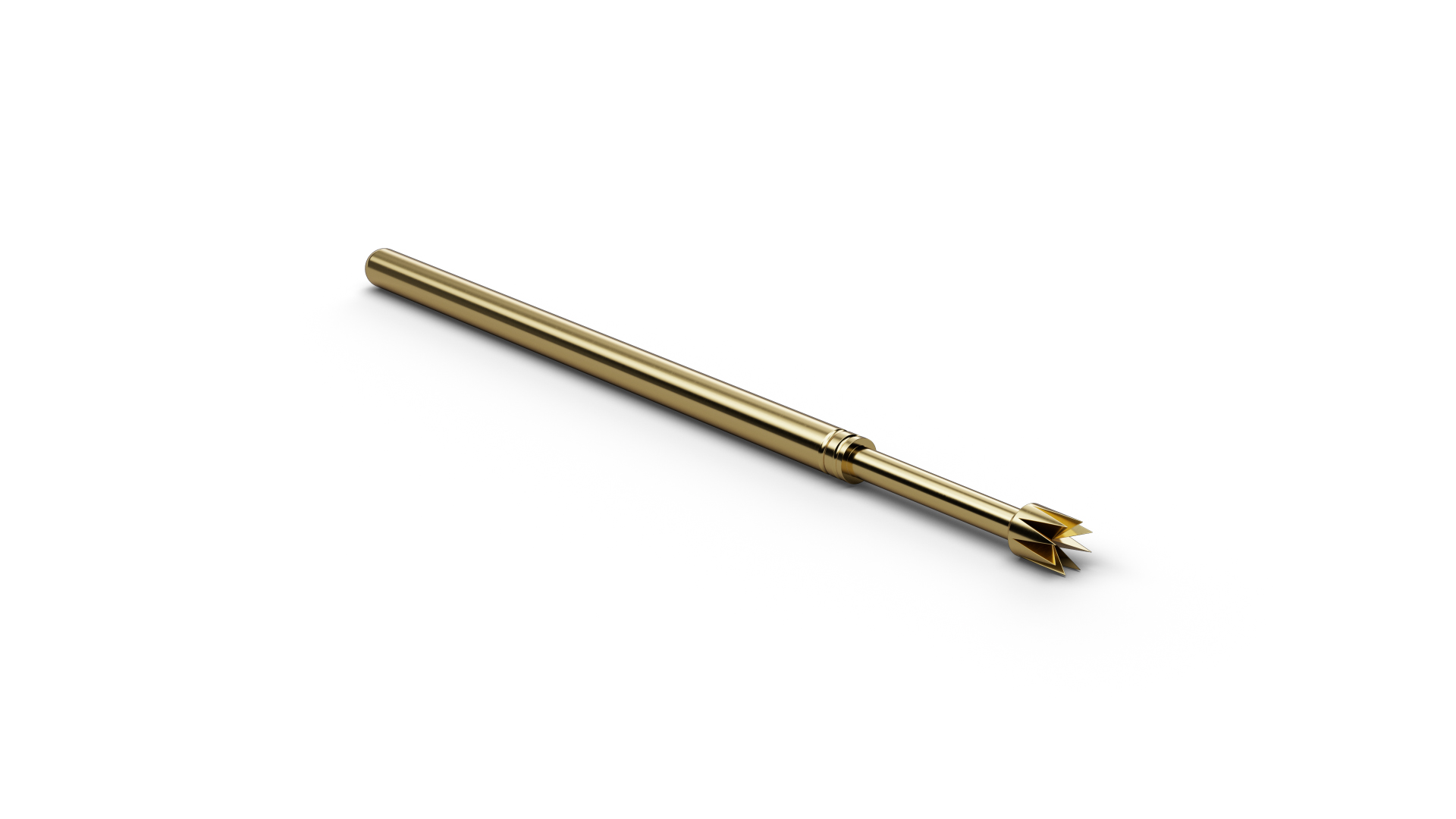

F10063B150P300HP (item number 1156258) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 63 (8-point crown stepped (self-cleaning)), F10063B150P300HP combines ICT/FCT use with a geometry intended for wire-wrap posts, including contacts that are slightly bent or twisted. F10063B150P300HP combines a pitch of 2.54 mm / 100 mil with tip style 63 (8-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F10063B150P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. F10063B150P300HP is specified for 5 A continuous current. The P/HP configuration of F10063B150P300HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
