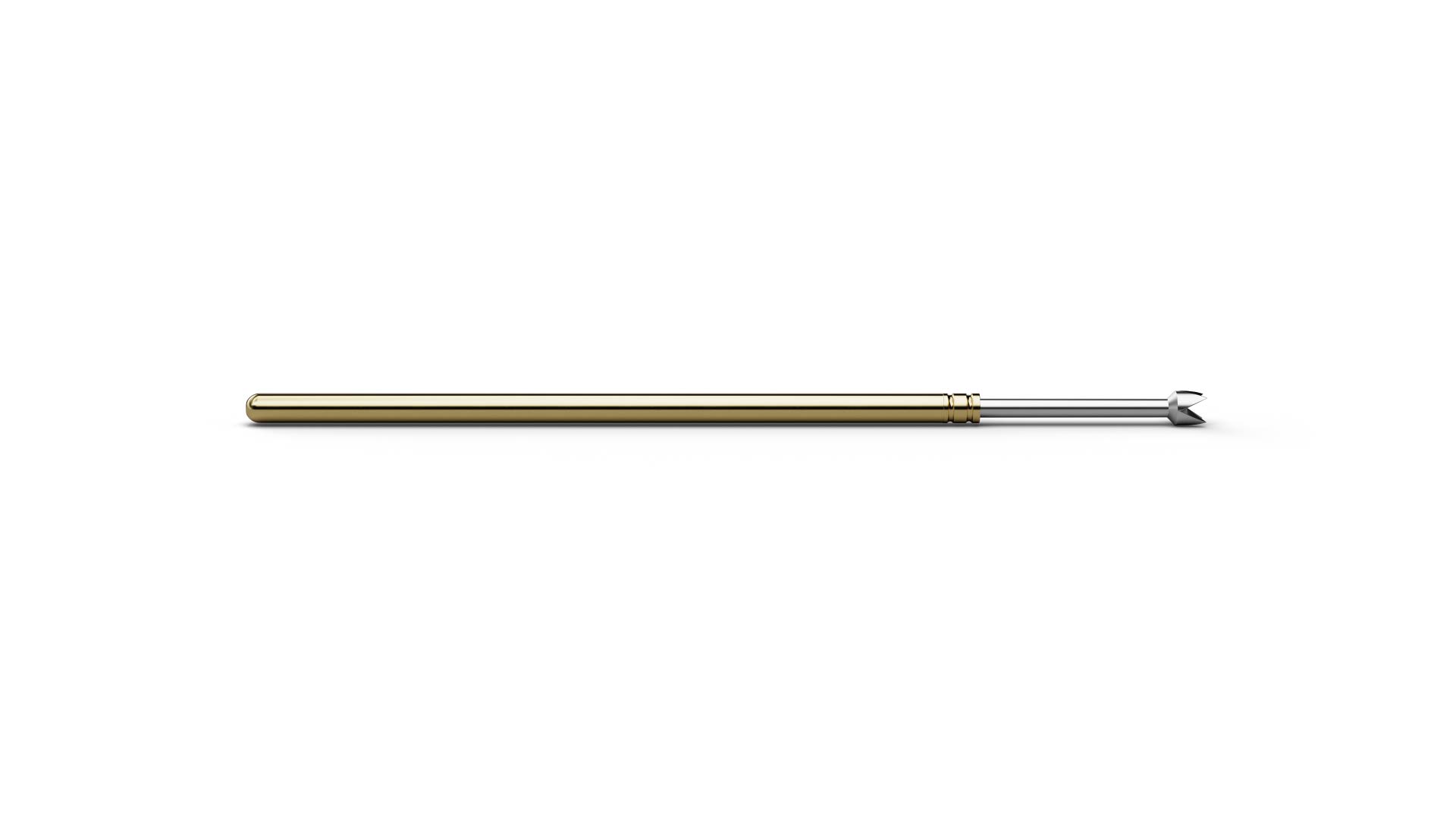

F07514S120P200HP (item number 1164988) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 14 (4-point crown stepped (self-cleaning)), F07514S120P200HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F07514S120P200HP combines a pitch of 1.9 mm / 75 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. For F07514S120P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. F07514S120P200HP is specified for 4 A continuous current. On F07514S120P200HP, Progressive Coating and the increased spring preload of the HP version form a combined solution for difficult ICT/FCT contacting conditions involving OSP, flux residues, oxidation or contamination.
