Données techniques
| Généralités | |
|---|---|
| Structure | Double Coaxial Probe |
| Type/famille | F836 MTD |
| Pas (mm/mil) | 1,5 |
| Température | -45°C...+100°C |
| Dimensions | |
|---|---|
| Longueur totale (mm) | 28 |
| Hauteur hors tout (mm) | 14 |
| Diamètre du style de pointe (mm) | 0.7 |
| Diamètre du fût (mm) | 8 |
| Matériaux et surfaces | |
|---|---|
| Style de pointe | 05 |
| Matériau de la pointe | Bronze |
| Revêtement de la pointe | Gold |
| Matériau du piston | Brass |
| Revêtement du piston | Gold |
| Matériau du fût | Brass |
| Revêtement du fût | Gold |
| Matériau du ressort | Spring steel |
| Revêtement du ressort | Gold |
| Spécifications mécaniques | |
|---|---|
| Précontrainte (cN) | 150 |
| Force du ressort (cN) | 450 |
| Course nominale (mm) | 1.5 |
| Course maximale (mm) | 2 |
| Connexion | Solder Connection |
| DUT | MTD male E7Z008-C01 |
| Spécifications électriques | |
|---|---|
| Courant continu (A) | 1 |
| Résistance de contact typique (mΩ) | 100 |
Beschreibung des Produkts

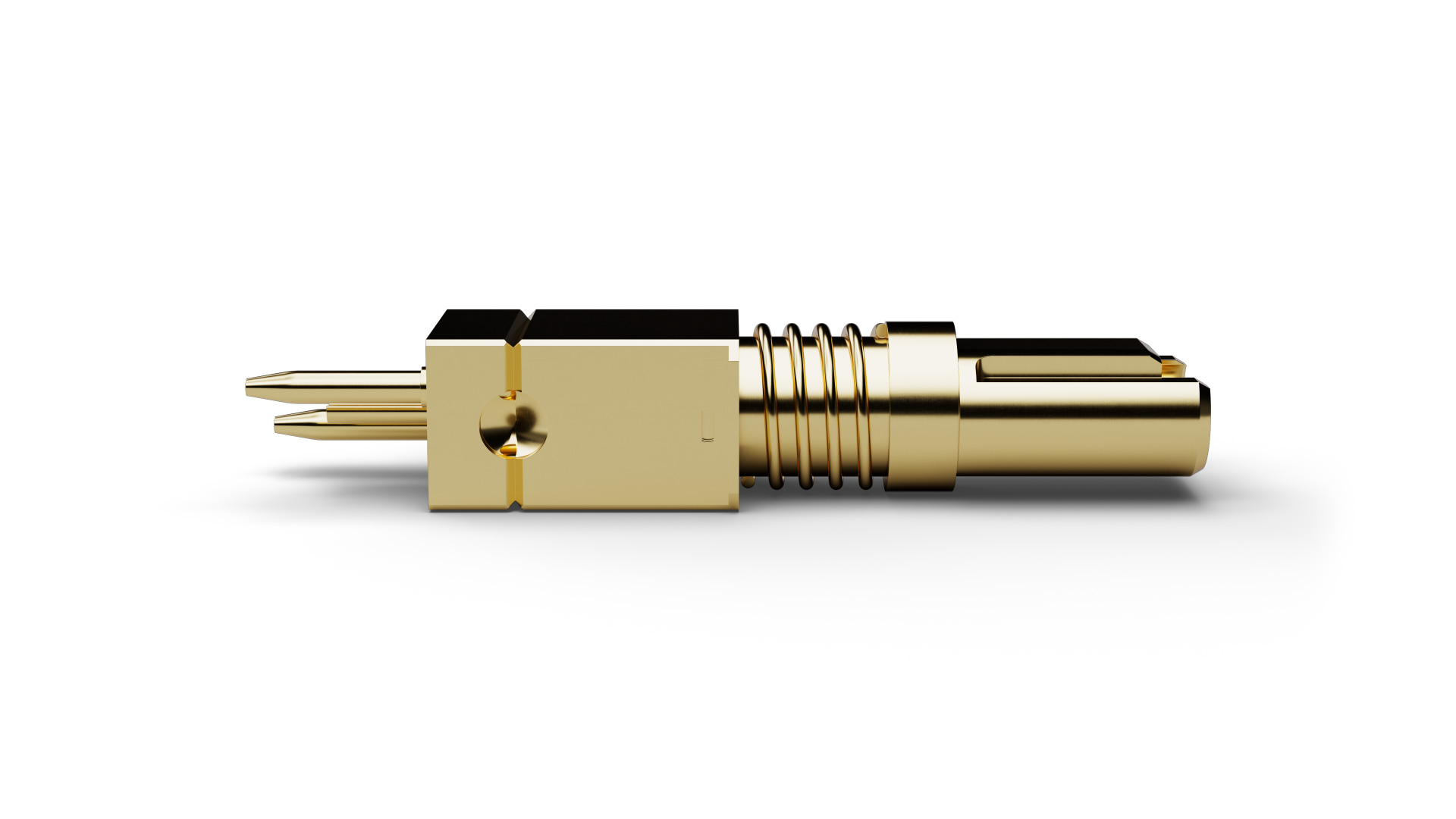

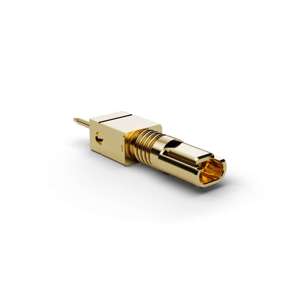

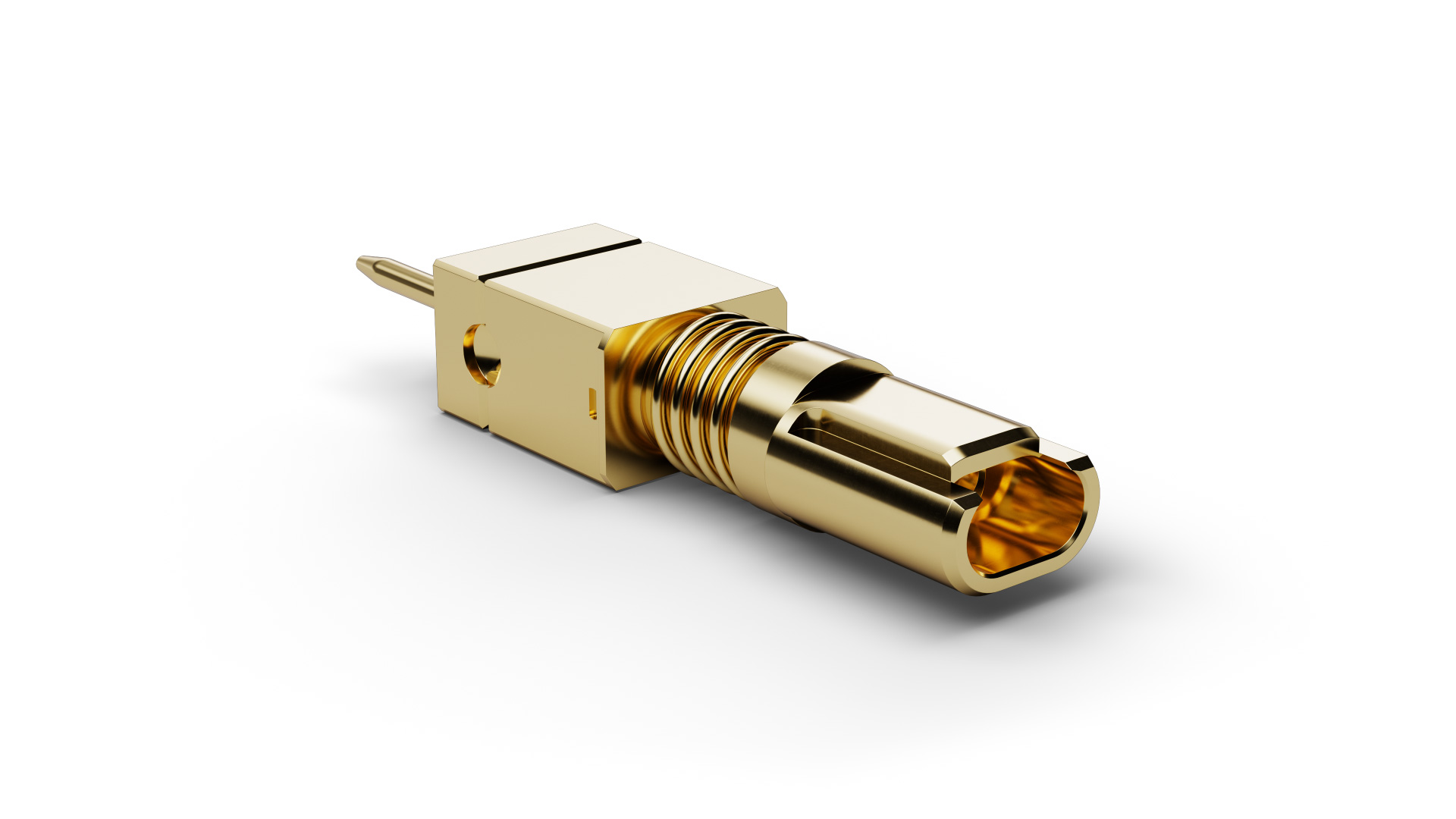

F83605S070L535-MTDm (item number 1168264) is a Kelvin Probe for measuring very low resistance values with reduced influence from lead and contact resistance. The separate current and voltage paths in F83605S070L535-MTDm support four-wire measurements in which lead and contact resistance have minimal influence on the result. The design combines a pitch of 1.5 mm with tip style 05 (Concave stepped) and a tip diameter of 0.7 mm. For F83605S070L535-MTDm, spring force is 450 cN at a nominal travel of 1.5 mm. F83605S070L535-MTDm is specified for 1 A continuous current.
