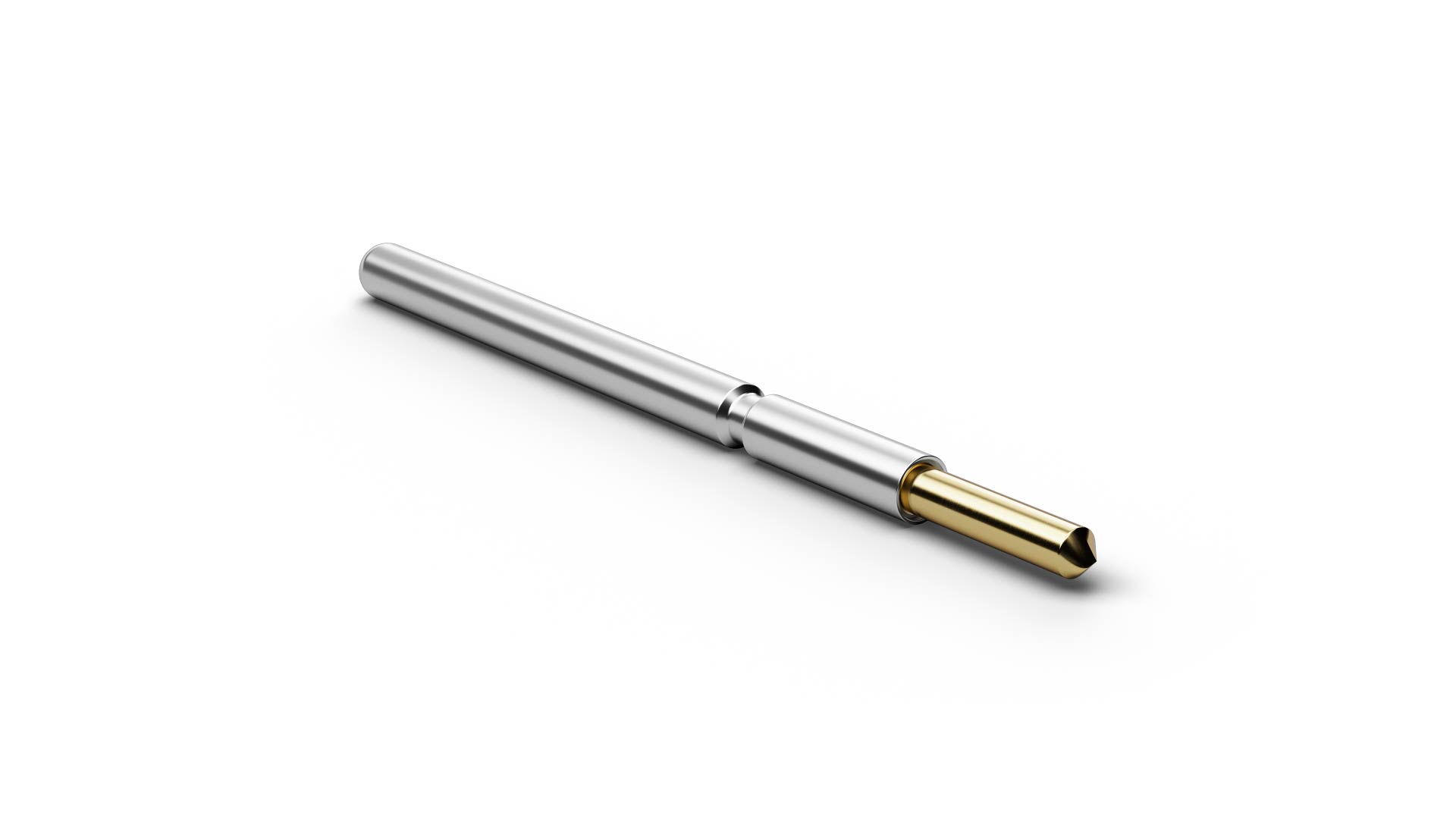

The Pogo Connector P06701S048L075L114A (item number 1001479) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P06701S048L075L114A is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P06701S048L075L114A is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P06701S048L075L114A, a pitch of 1.27 mm / 50 mil is combined with 75 cN spring force and 0.8 mm nominal travel. The electrical rating of P06701S048L075L114A combines 4 A continuous current with 70 mΩ typical contact resistance. On P06701S048L075L114A, tip style 01 (Conical 90°) has a diameter of 0.48 mm.
