Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P067-L114 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 11.4 |
| Protrusion height (mm) | 2.2 |
| Tip style diameter (mm) | 0.48 |
| Barrel diameter (mm) | 0.67 |
| Materials and surfaces | |
|---|---|
| Tip style | 01 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Silver |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 75 |
| Nominal travel (mm) | 0.8 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 70 |

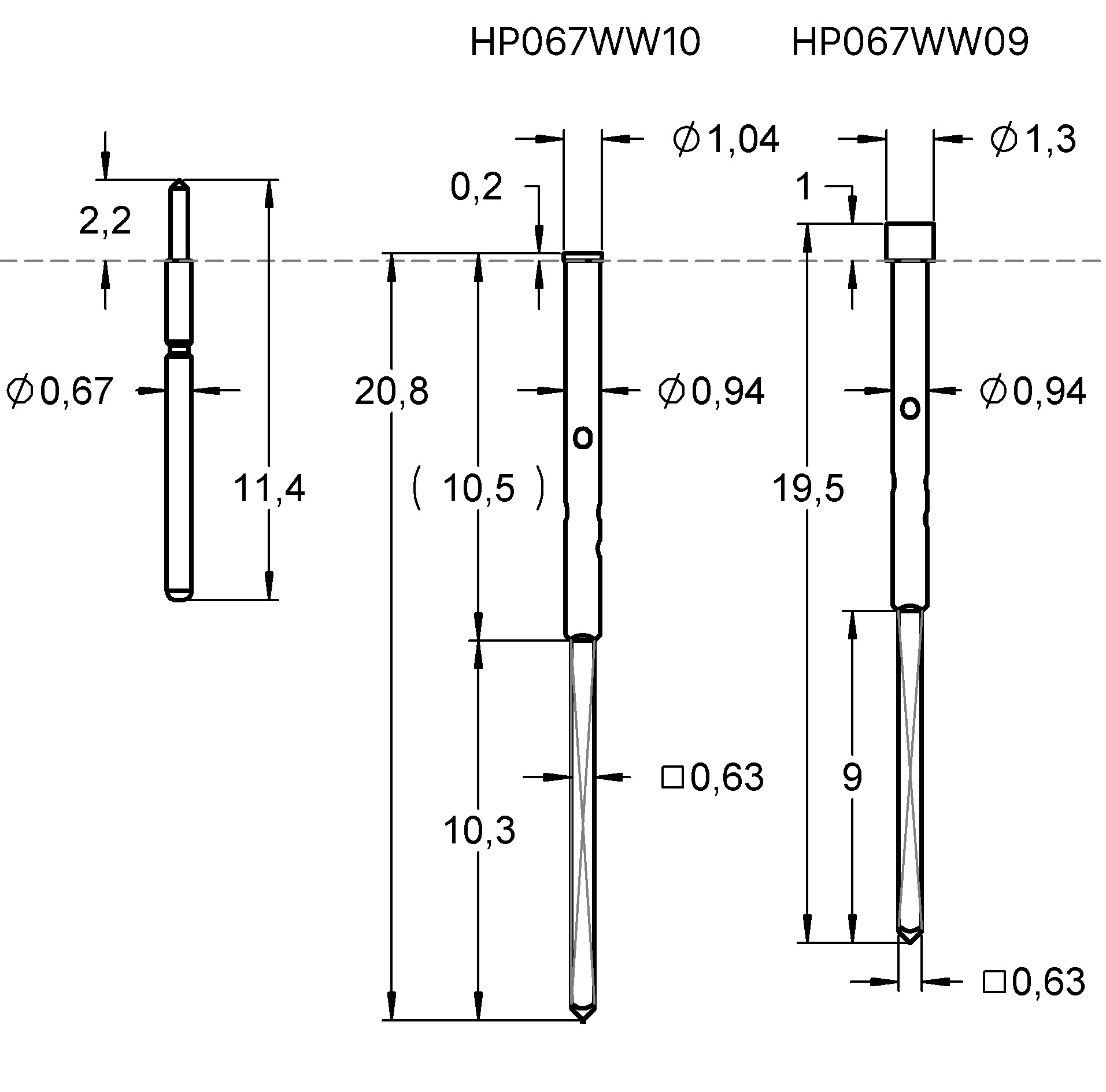

Graphics
