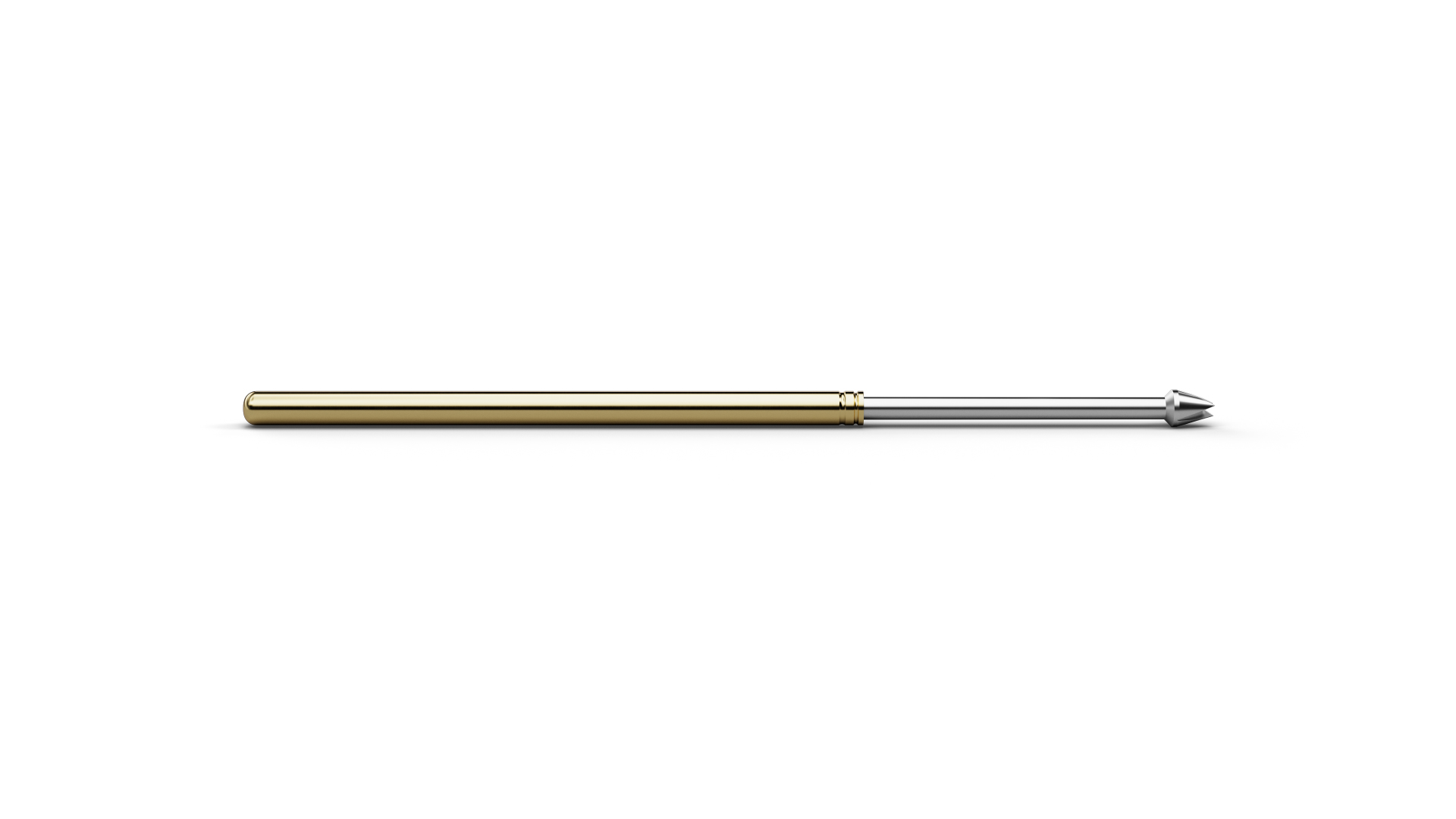

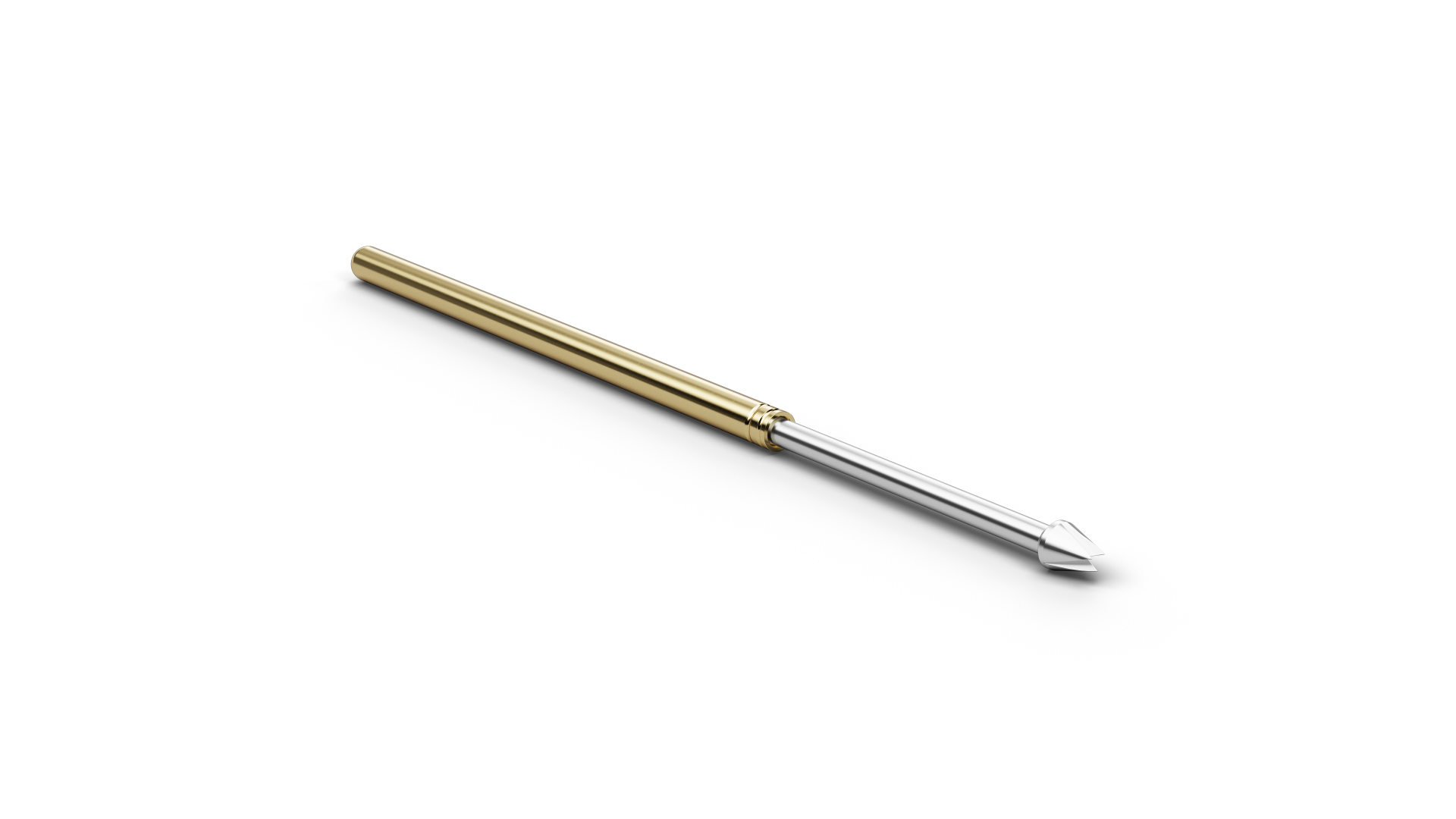

F58835S150P300 (item number 1041857) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 35 (3-point crown stepped (self-cleaning)), F58835S150P300 combines ICT/FCT use with a geometry intended for solder pads and vias. F58835S150P300 combines a pitch of 2.54 mm / 100 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. For F58835S150P300, spring force is 300 cN at a nominal travel of 9.3 mm. F58835S150P300 is rated for 5 A continuous current with a typical contact resistance of 60 mΩ. The plunger in F58835S150P300 is made of steel and uses Progressive Coating.
