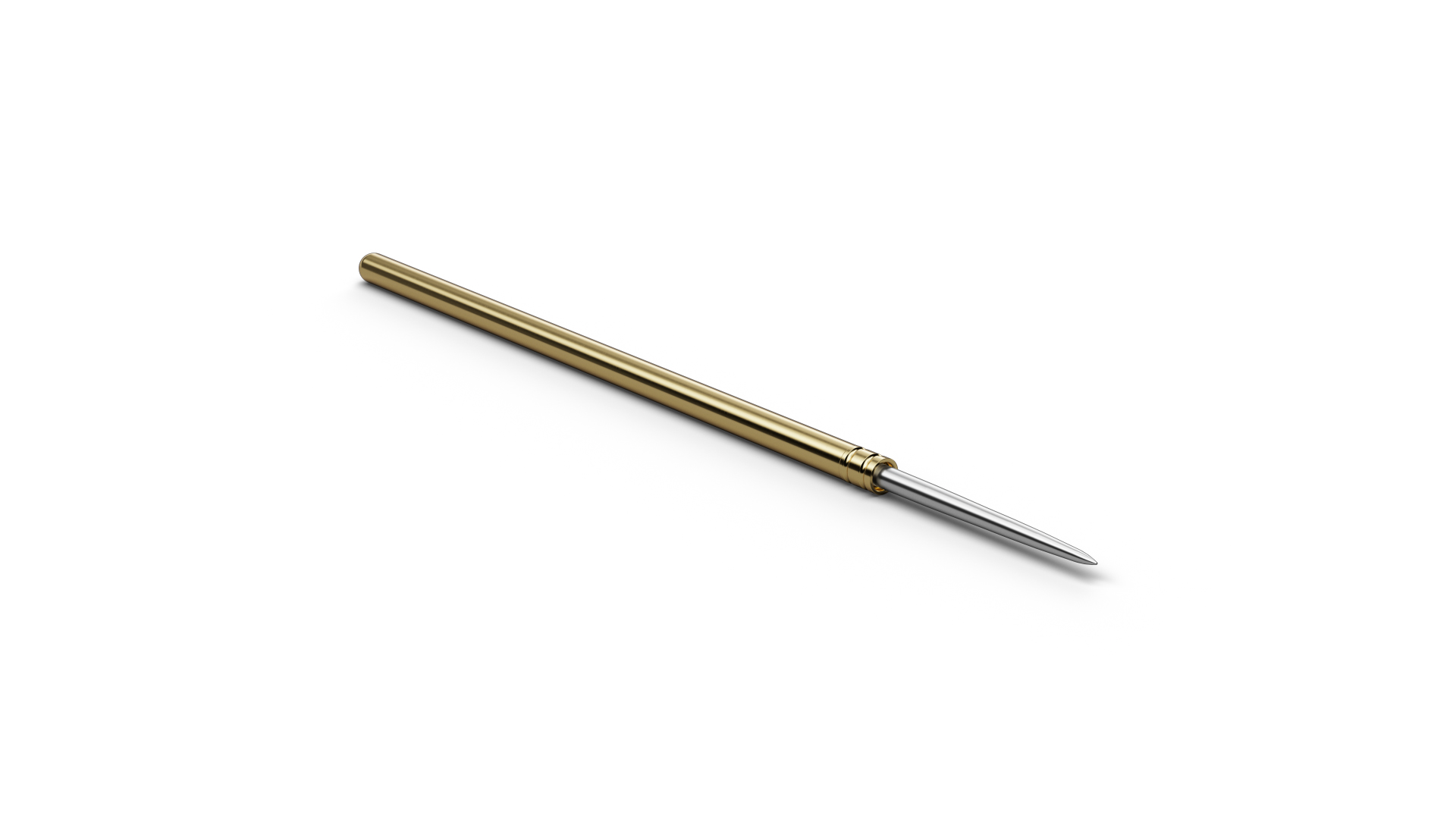

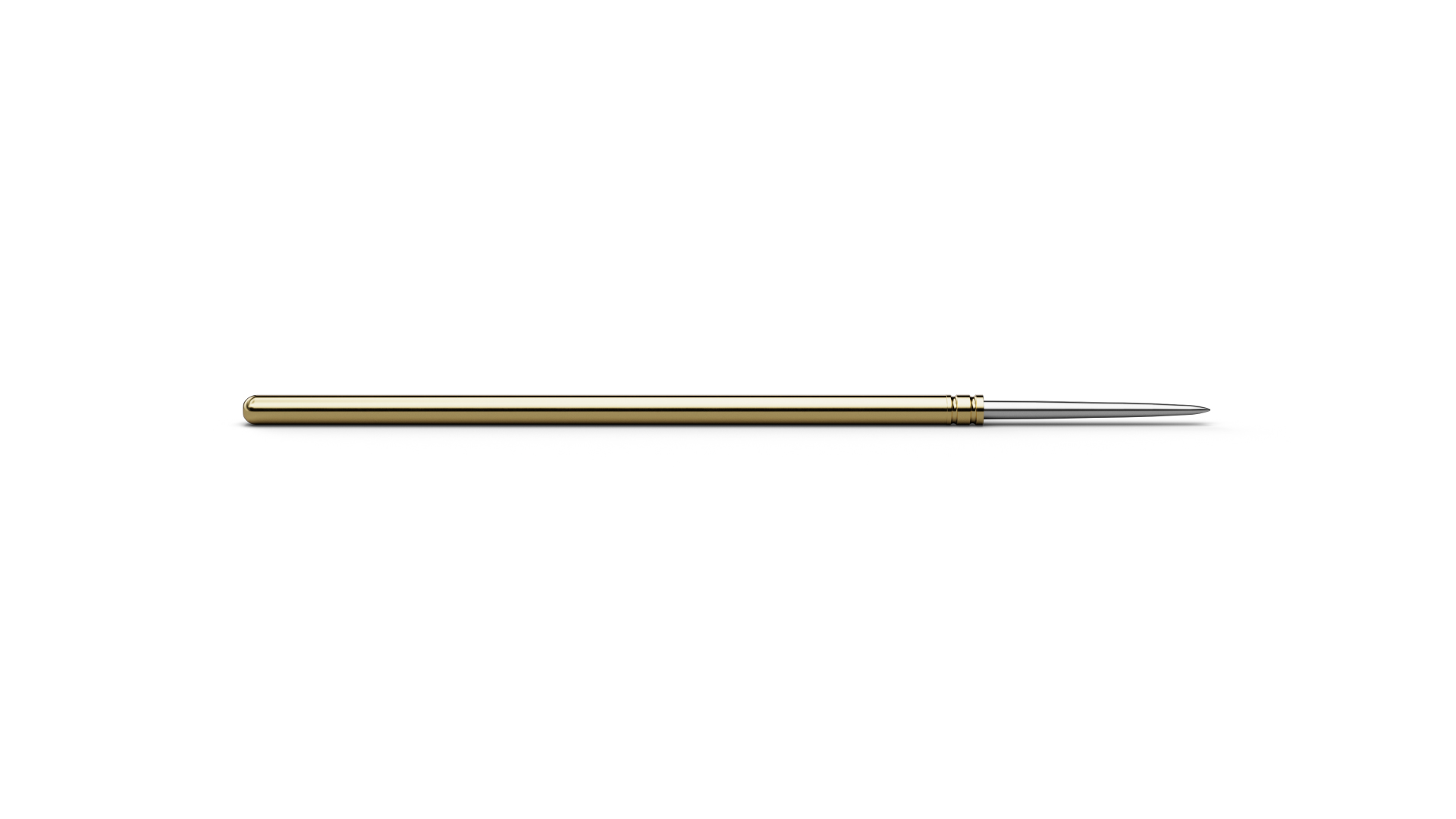

The Basic Contact Probe F07510S064P200HP (item number 1143889) is a spring-loaded probe for temporary electrical contact with test points. With tip style 10 (Flexible needle), F07510S064P200HP combines ICT/FCT use with a geometry intended for solder pads and vias. F07510S064P200HP combines a pitch of 1.9 mm / 75 mil with tip style 10 (Flexible needle) and a tip diameter of 0.64 mm. For F07510S064P200HP, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F07510S064P200HP combines 4 A continuous current with 20 mΩ typical contact resistance. The P/HP configuration of F07510S064P200HP pairs contamination-resistant Progressive Coating with increased spring preload so that difficult surfaces such as OSP, oxidized pads or flux-contaminated test points can be contacted more effectively.
