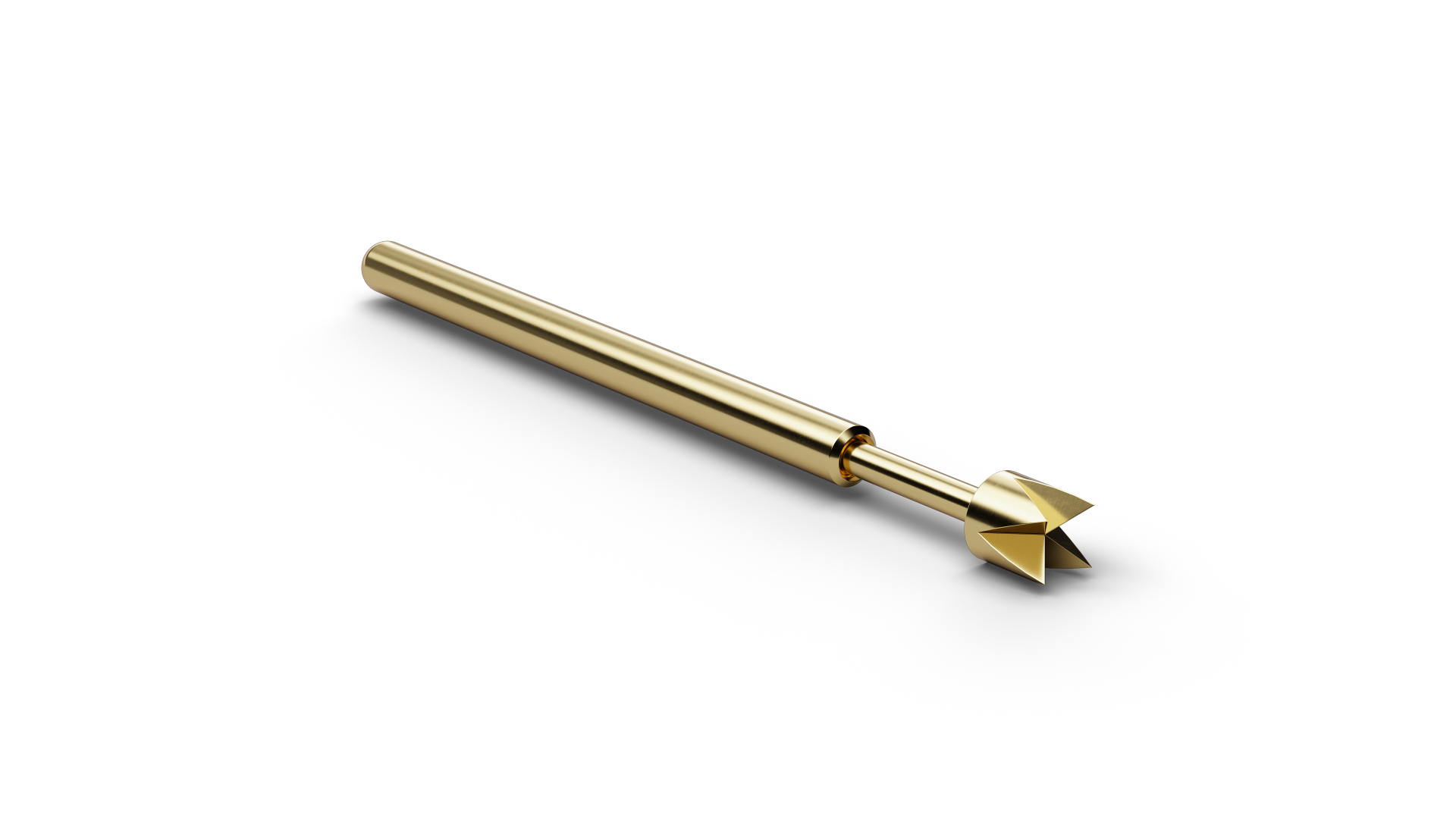

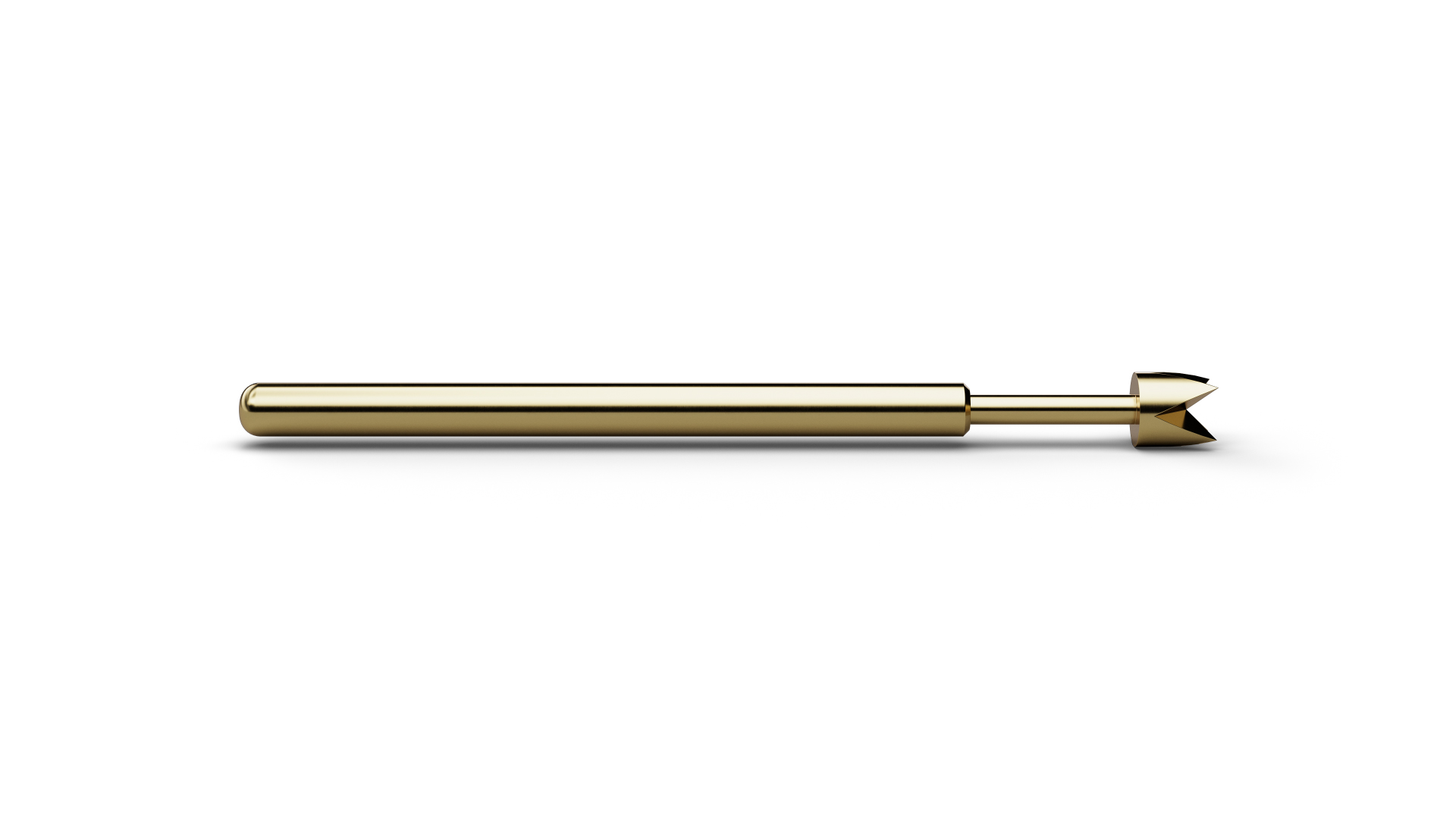

The Basic Contact Probe F56214S190L150 (item number 1001320) is a spring-loaded probe for temporary electrical contact with test points. With tip style 14 (4-point crown stepped (self-cleaning)), F56214S190L150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F56214S190L150 combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.9 mm. F56214S190L150 operates with 150 cN spring force and 2.7 mm nominal travel. The electrical rating of F56214S190L150 combines 5 A continuous current with 20 mΩ typical contact resistance. The plunger in F56214S190L150 is made of steel and uses Longtime Gold plating.
