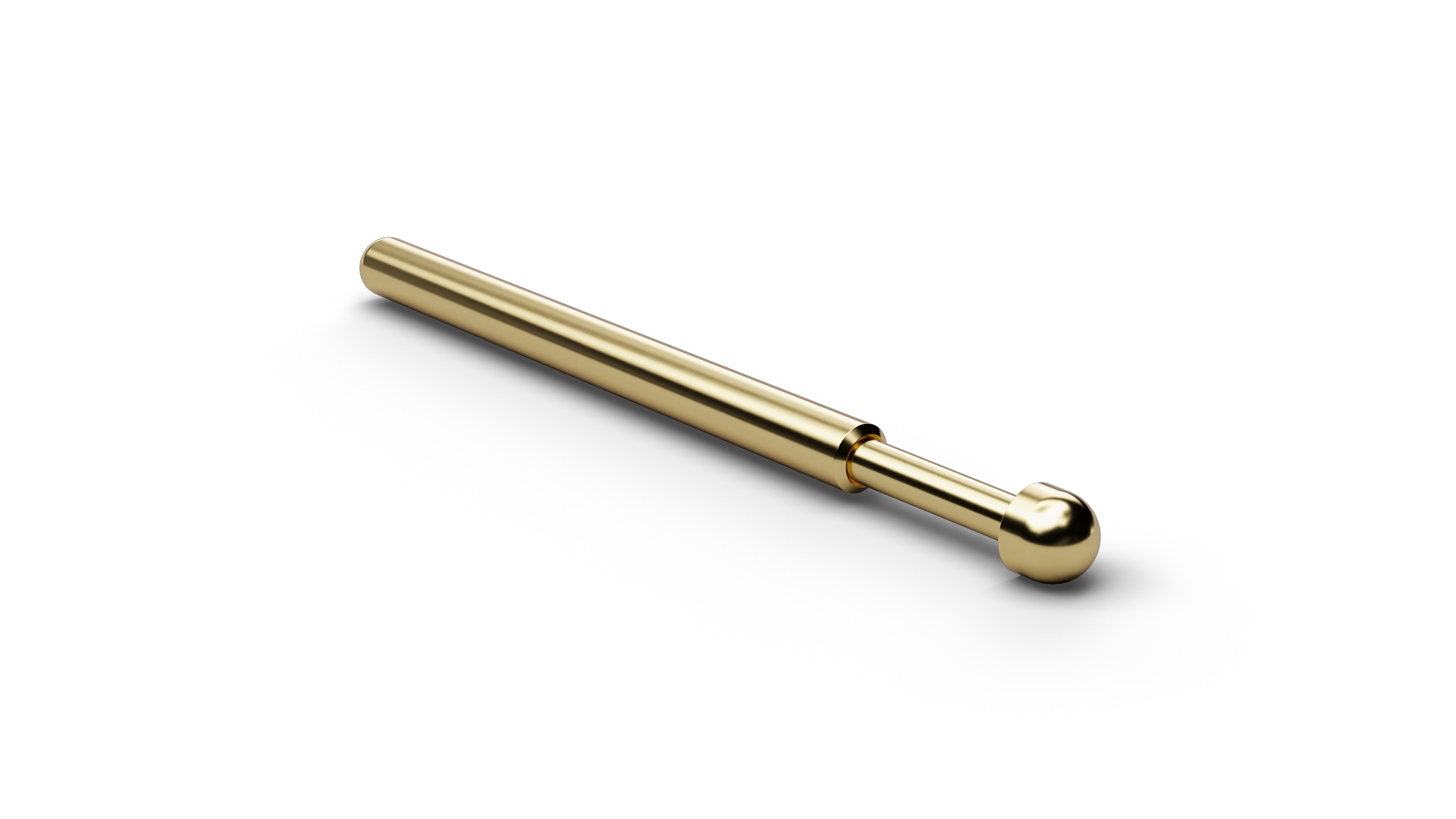

F56312B250G180 (item number 1001331) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 12 (Spherical stepped), F56312B250G180 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. The design combines a pitch of 3 mm / 118 mil with tip style 12 (Spherical stepped) and a tip diameter of 2.5 mm. For F56312B250G180, spring force is 180 cN at a nominal travel of 4.3 mm. F56312B250G180 is rated for 6 A continuous current with a typical contact resistance of 100 mΩ. The plunger in F56312B250G180 is made of beryllium copper and is gold-plated.
