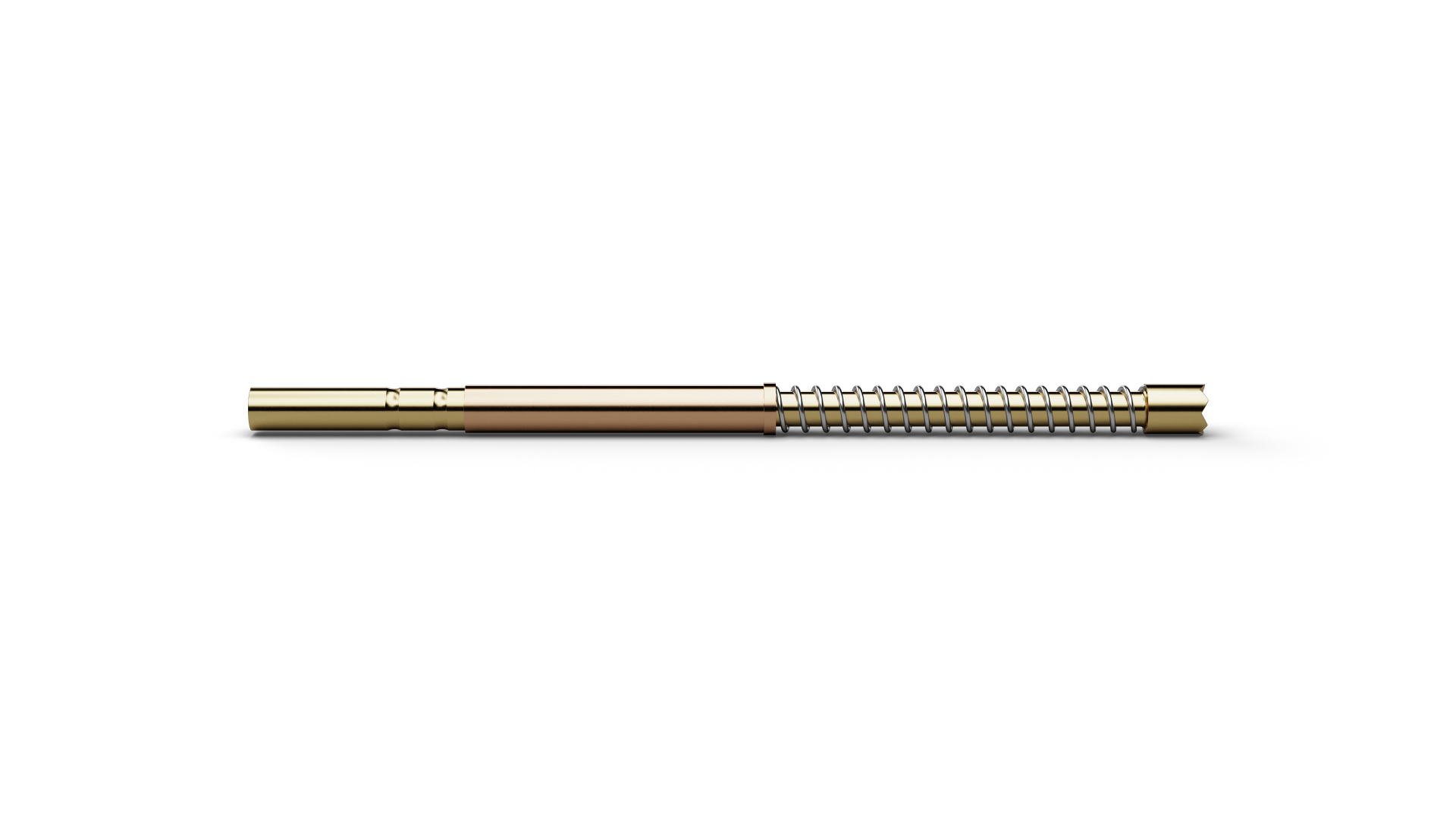

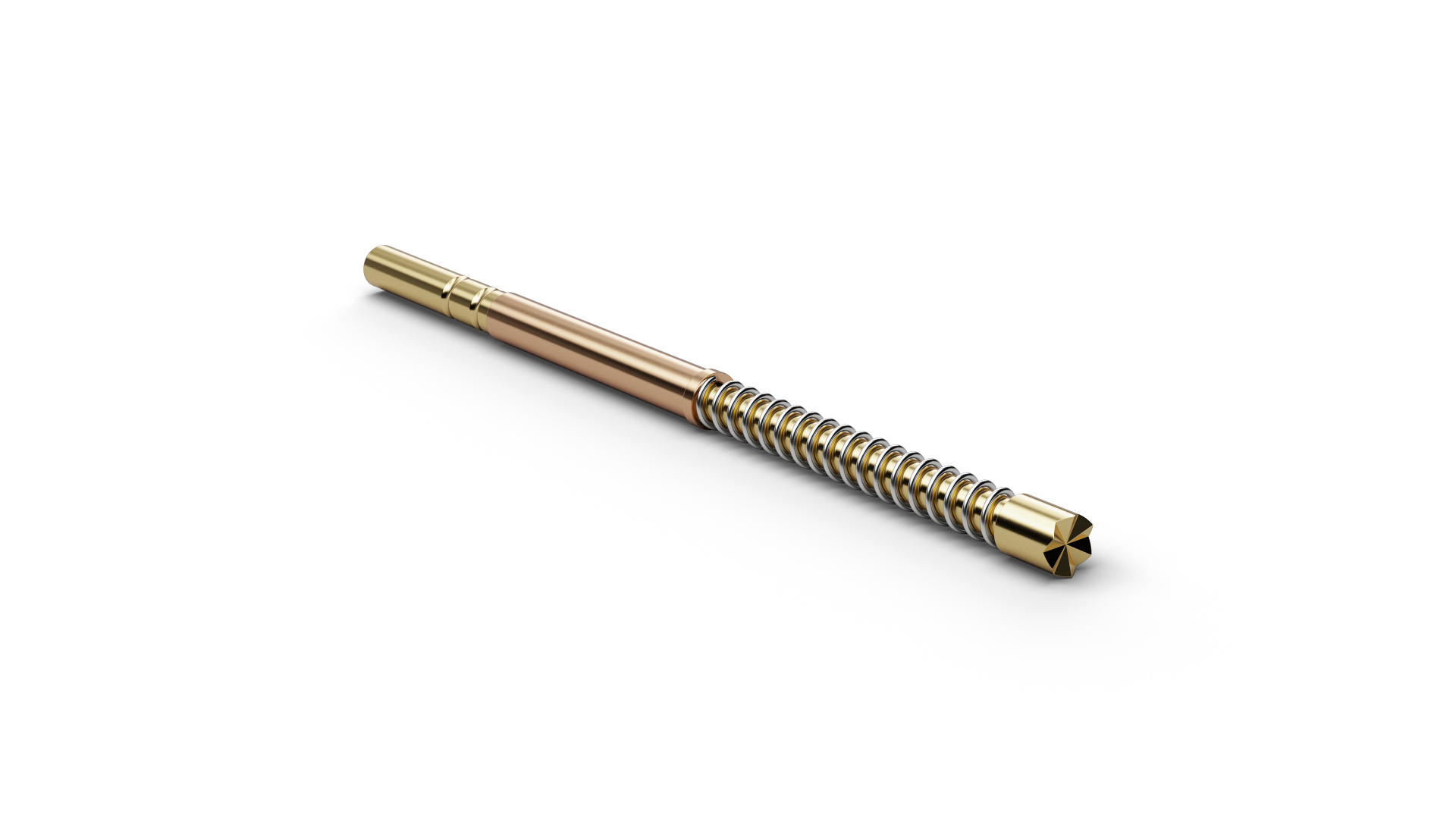

The High Current Probe HCF33009S210L210 (item number 1001366) is designed for safe transmission of high electrical currents in test and contacting applications. HCF33009S210L210 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF33009S210L210, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF33009S210L210 includes power-electronics testing. The electrical rating of HCF33009S210L210 combines 14 A continuous current with 15 mΩ typical contact resistance. For HCF33009S210L210, spring force is 210 cN at a nominal travel of 5.6 mm.
