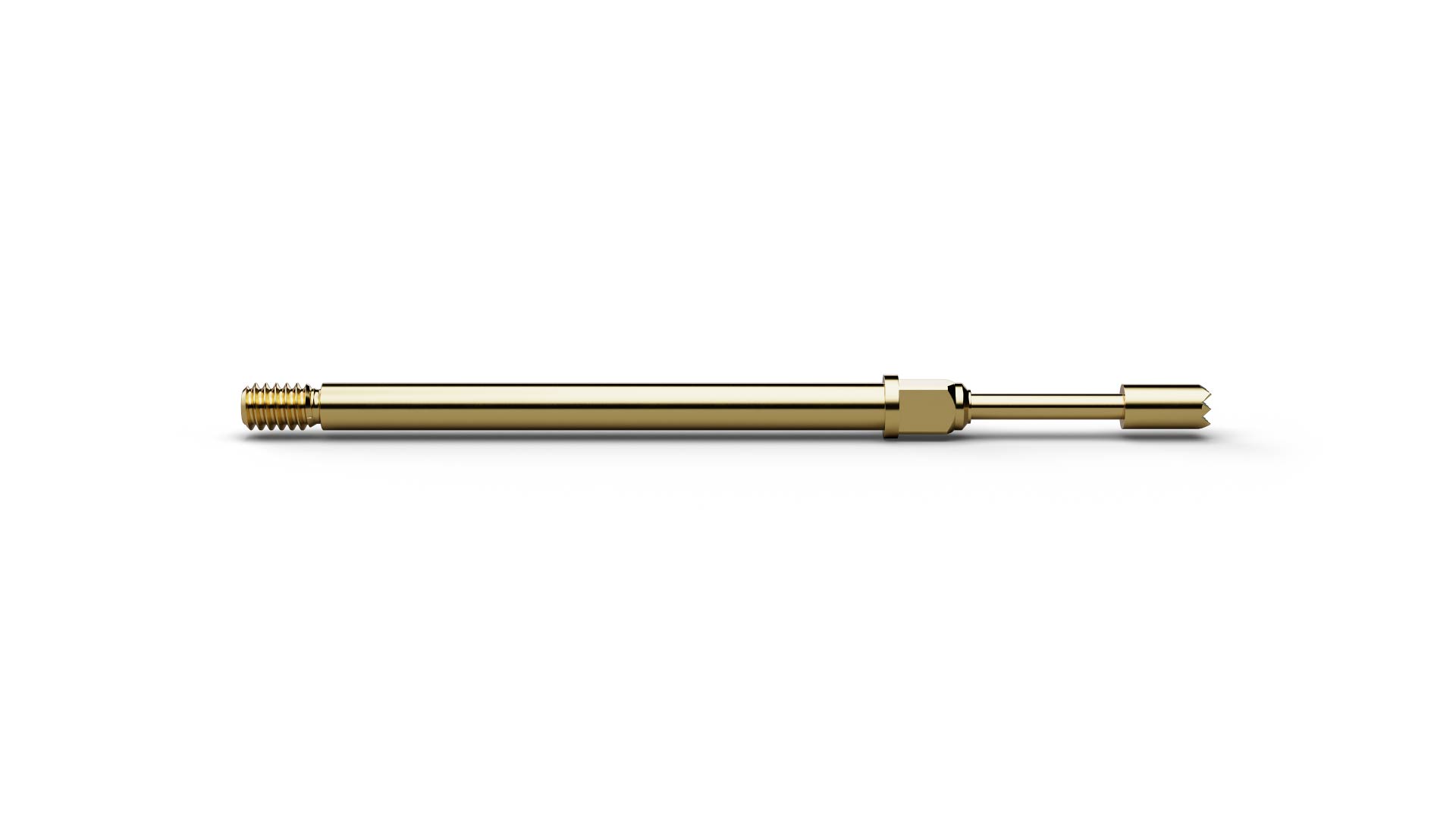

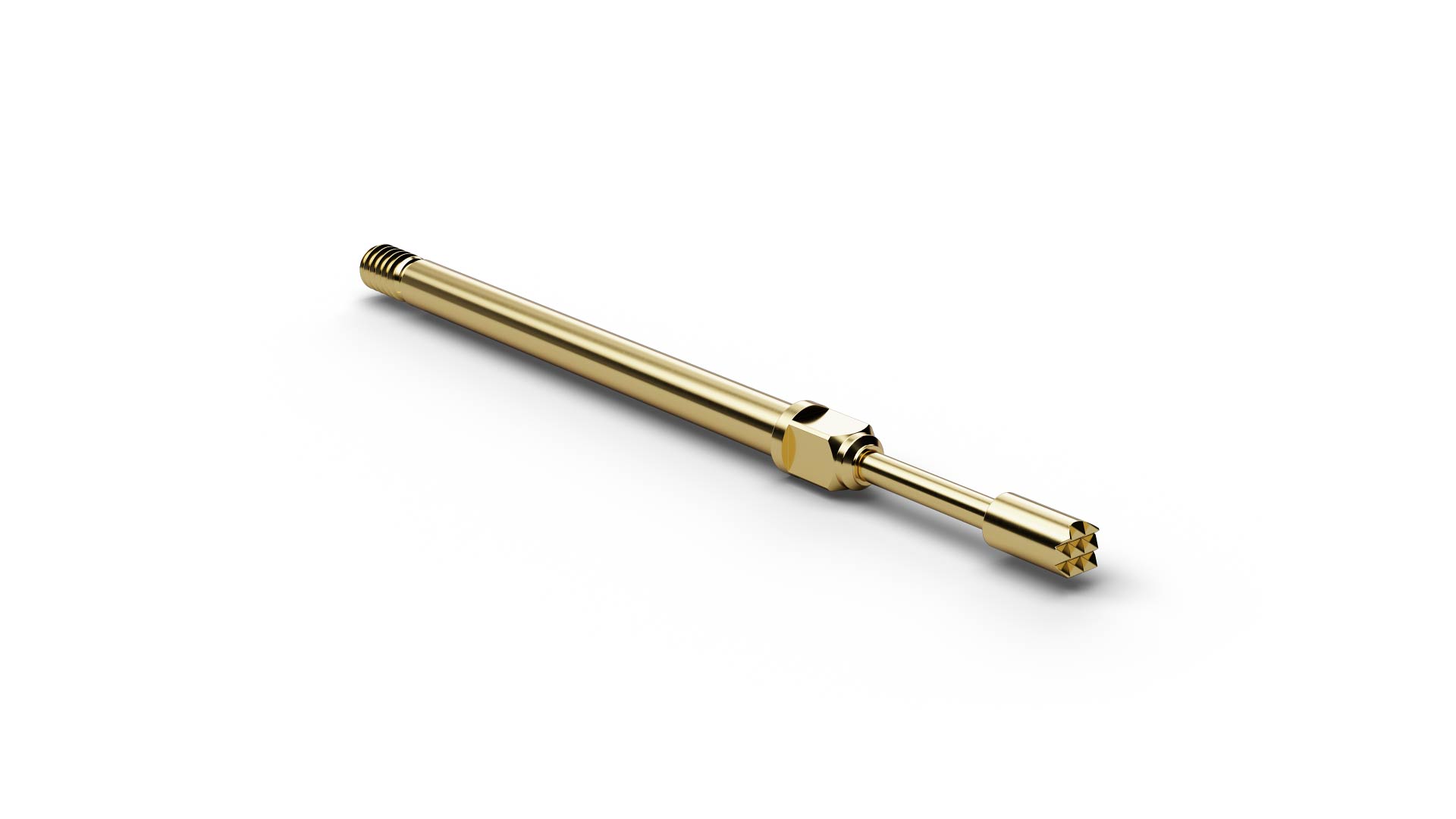

F73106B130G300 (item number 1001419) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73106B130G300 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73106B130G300 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73106B130G300 uses an M1.4 thread. On F73106B130G300, a pitch of 2.4 mm / 94 mil is combined with 300 cN spring force and 3.5 mm nominal travel. The electrical rating of F73106B130G300 combines 5 A continuous current with 30 mΩ typical contact resistance.
