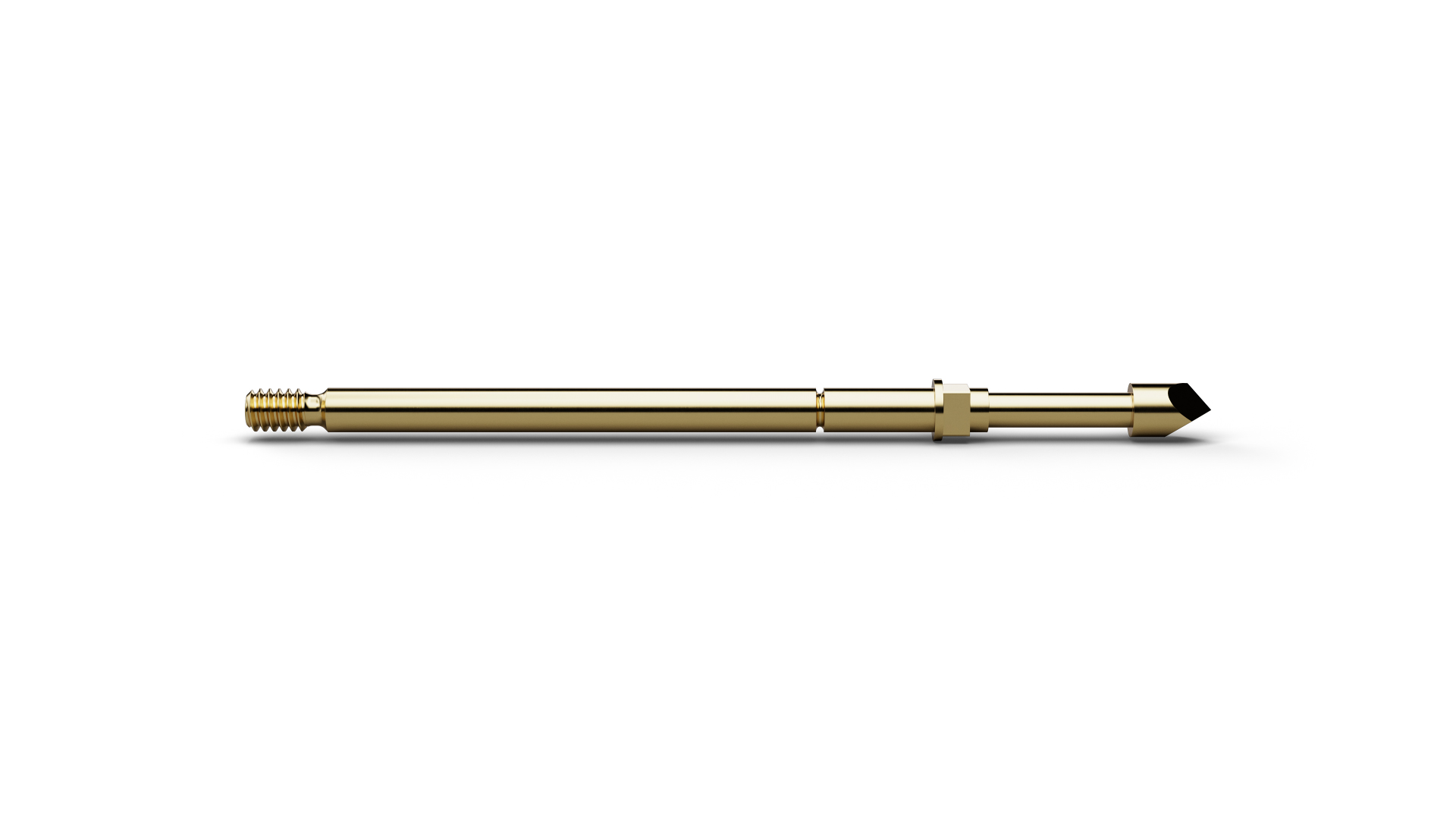

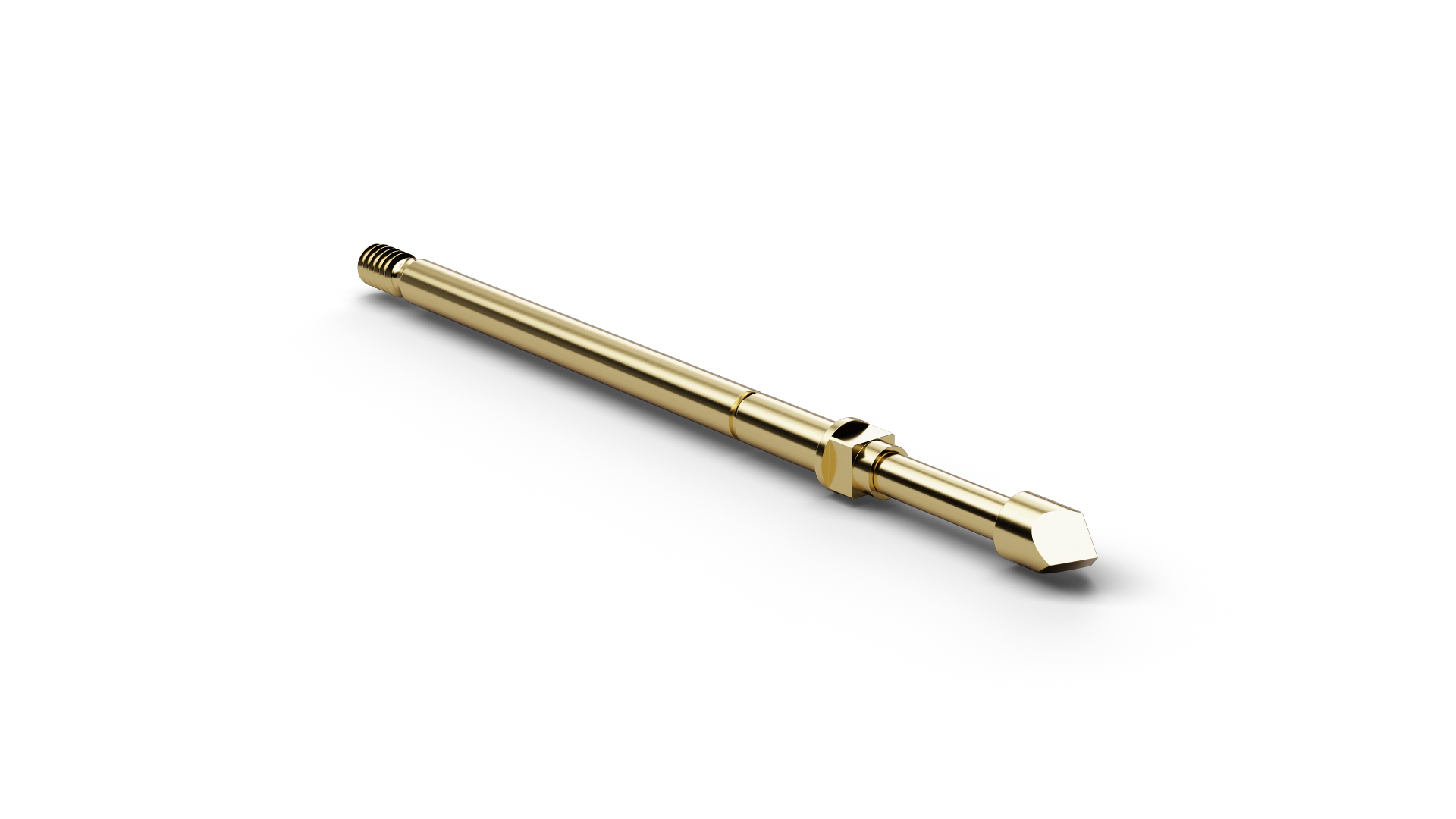

F73215B200G150 (item number 1001474) is a threaded Contact Probe for fixtures where the probe must remain securely in its installed position. The threaded mounting of F73215B200G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The design of F73215B200G150 is well suited to wire-harness and connector testing and to fixtures exposed to vibration or lateral forces where probe migration must be prevented. F73215B200G150 is installed using a M1.6 thread. F73215B200G150 combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 2 mm. F73215B200G150 operates with 150 cN spring force and 4 mm nominal travel.
