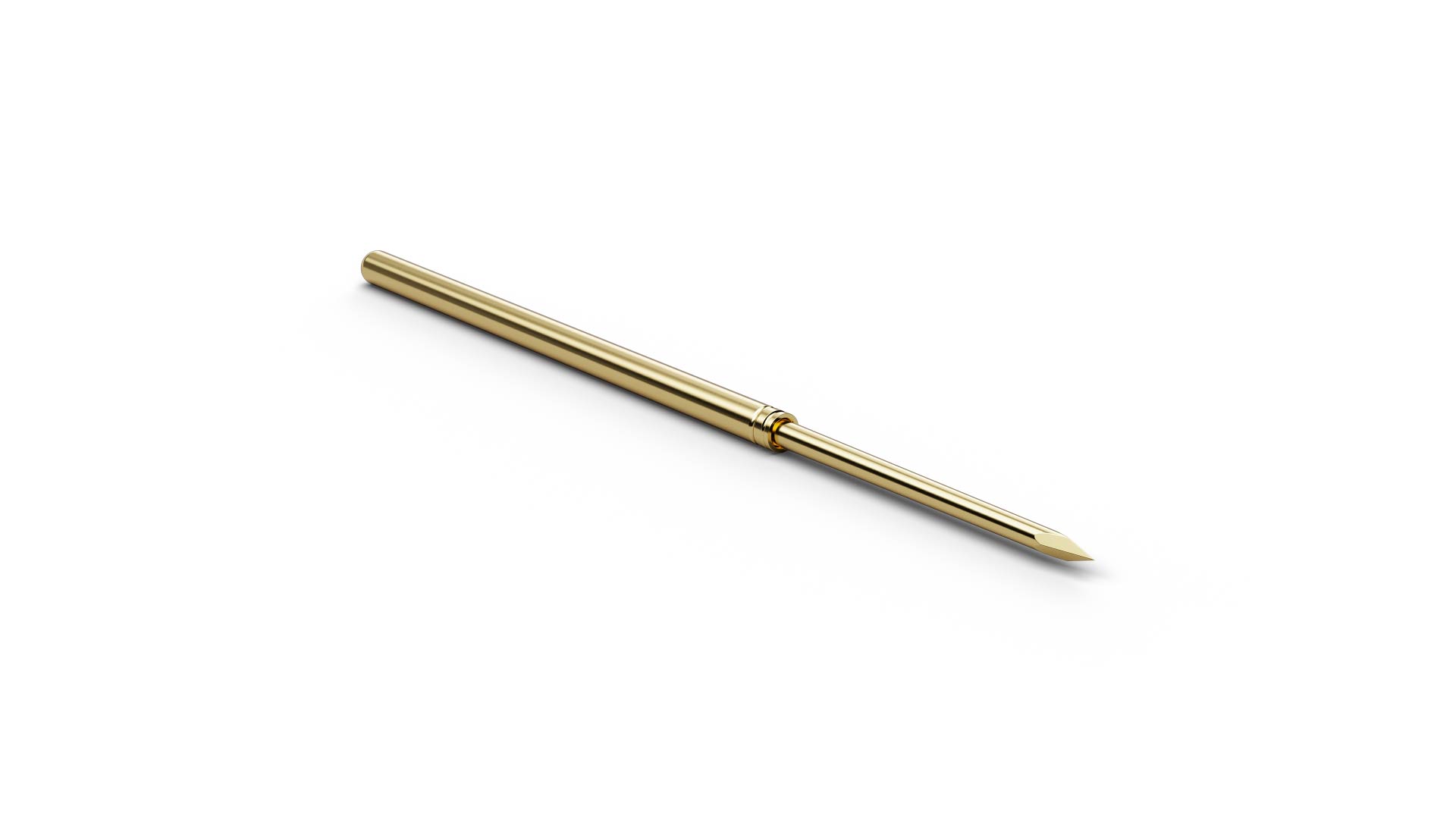

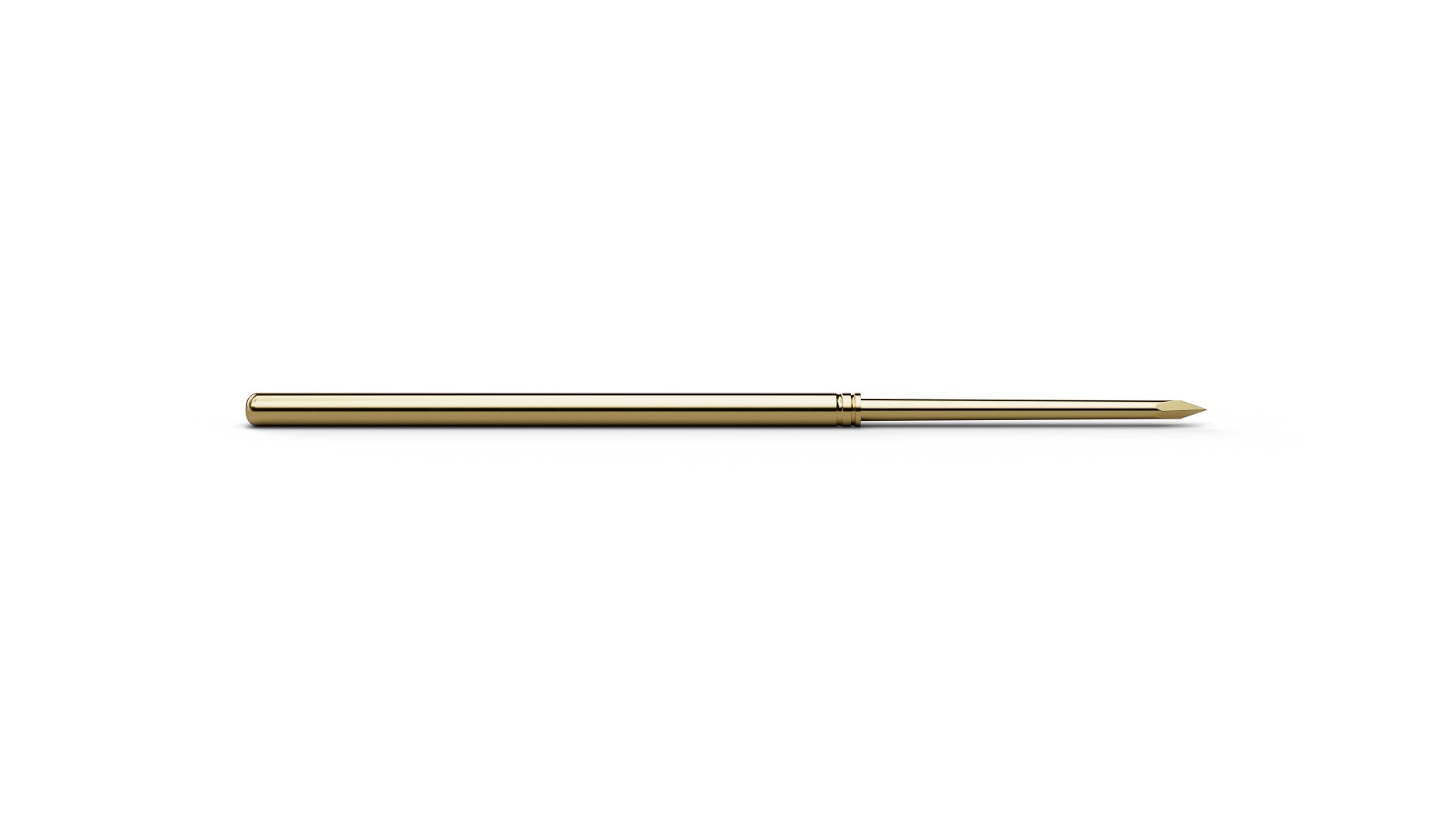

F58833S076L180 (item number 1001477) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F58833S076L180 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. The design combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.76 mm. For F58833S076L180, spring force is 180 cN at a nominal travel of 9.3 mm. F58833S076L180 is rated for 5 A continuous current with a typical contact resistance of 30 mΩ. The plunger in F58833S076L180 is made of steel and uses Longtime Gold plating.
