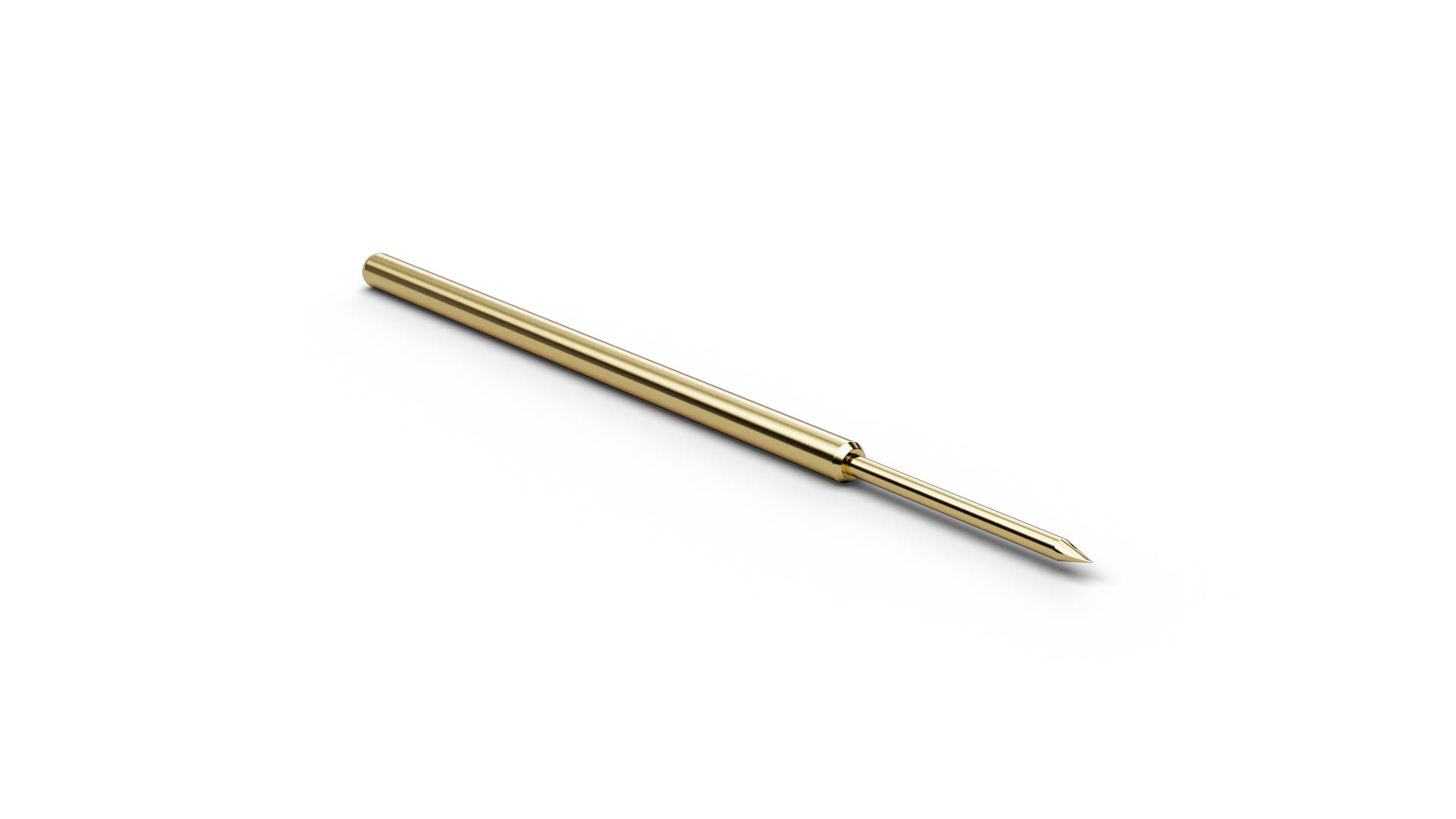

As a Basic Contact Probe, F70118B050G150 (item number 1001495) establishes a spring-loaded electrical connection to the test point. With tip style 18 (Conical 30°), F70118B050G150 combines ICT/FCT use with a geometry intended for solder pads and vias. F70118B050G150 combines a pitch of 1.9 mm / 75 mil with tip style 18 (Conical 30°) and a tip diameter of 0.5 mm. F70118B050G150 operates with 150 cN spring force and 4 mm nominal travel. The electrical rating of F70118B050G150 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F70118B050G150 is made of beryllium copper and is gold-plated.
