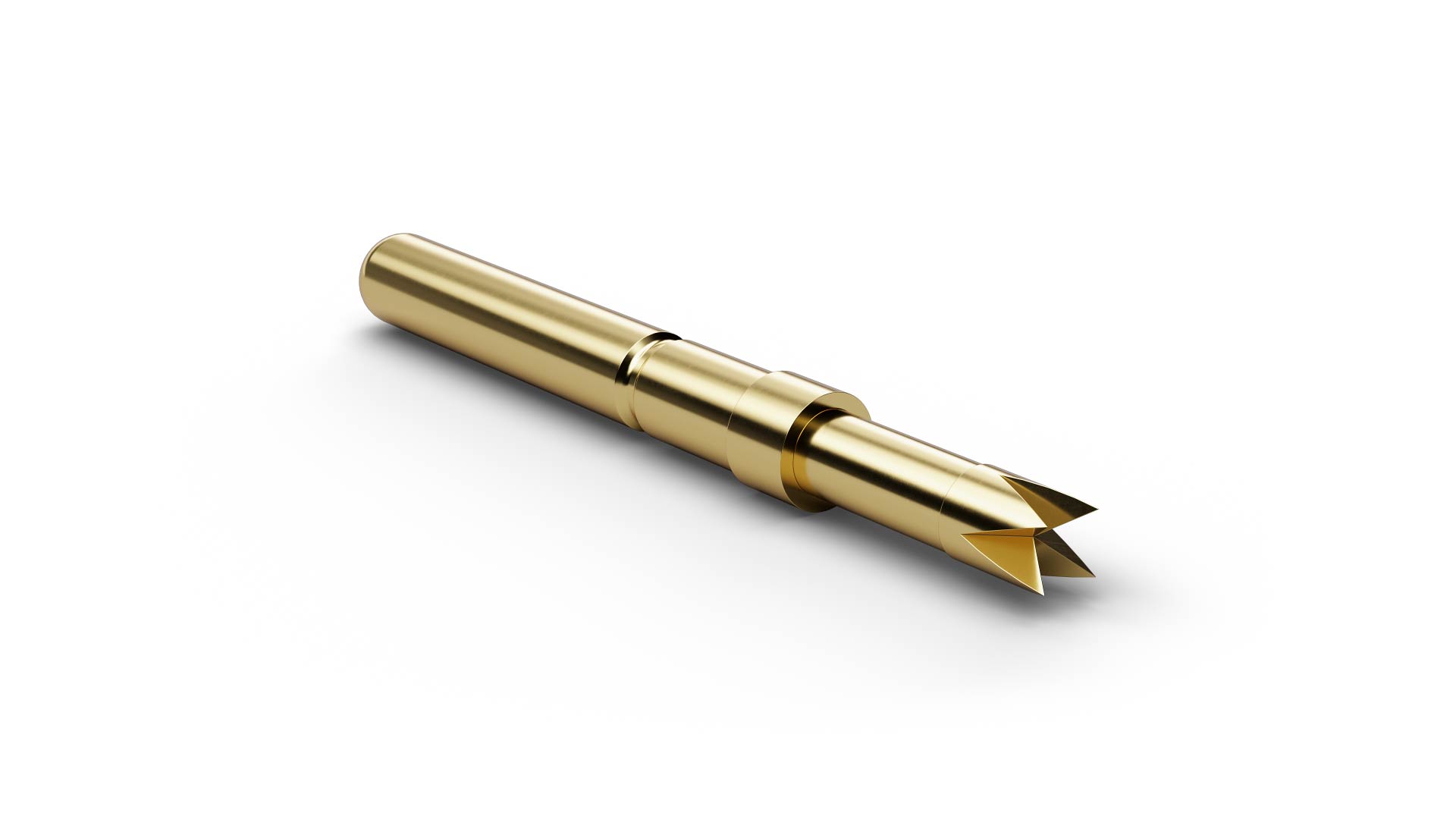

As a Basic Contact Probe, F77314S230L150 (item number 1001526) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F77314S230L150 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F77314S230L150 combines a pitch of 3.5 mm / 138 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 2.3 mm. For F77314S230L150, spring force is 150 cN at a nominal travel of 4 mm. The electrical rating of F77314S230L150 combines 10 A continuous current with 25 mΩ typical contact resistance. The plunger in F77314S230L150 is made of steel and uses Longtime Gold plating.
