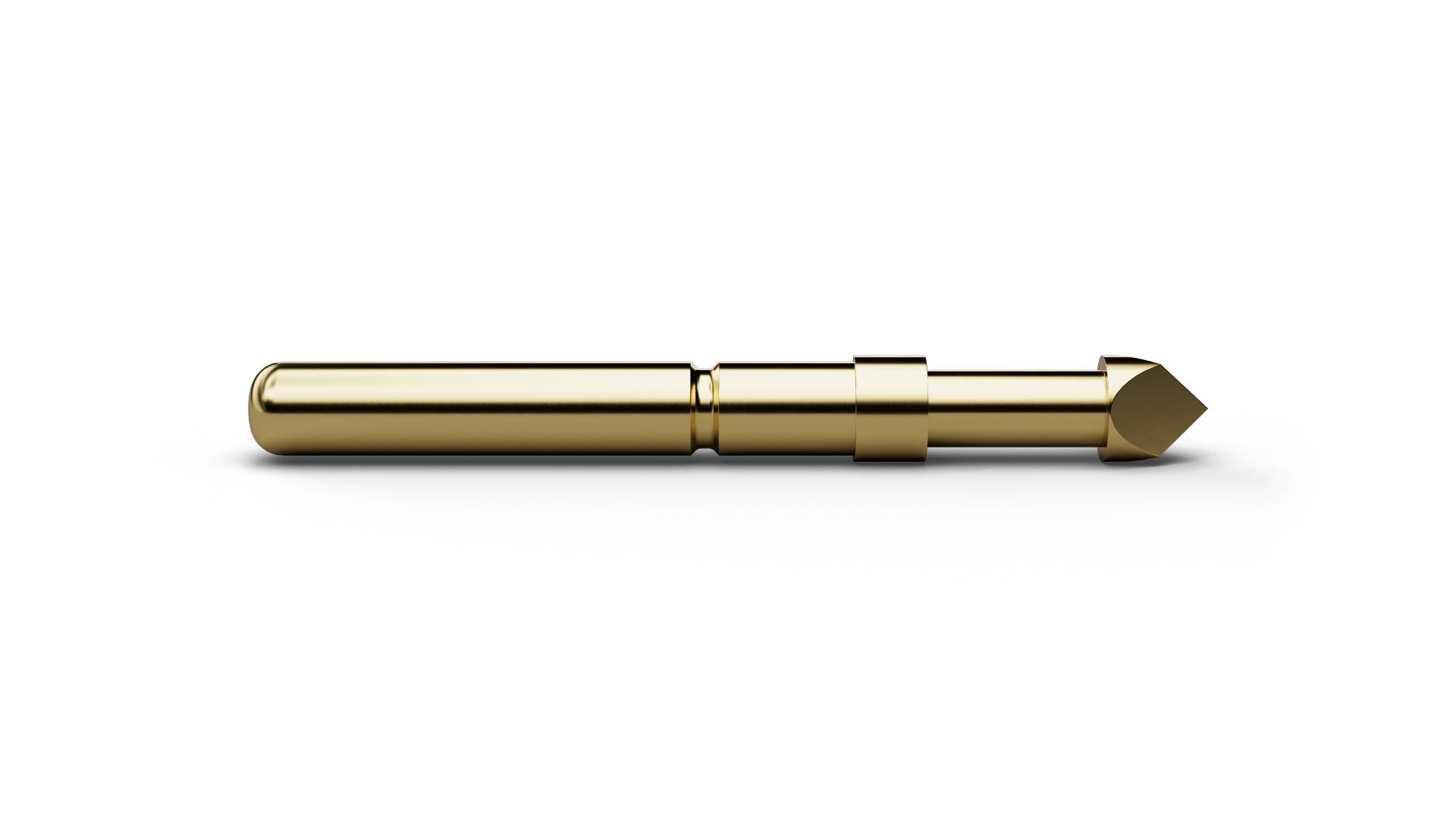

F77315B300G400 (item number 1001530) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 15 (Triangular 45° stepped), F77315B300G400 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F77315B300G400 combines a pitch of 3.5 mm / 138 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 3 mm. F77315B300G400 operates with 400 cN spring force and 4 mm nominal travel. The electrical rating of F77315B300G400 combines 10 A continuous current with 25 mΩ typical contact resistance. The plunger in F77315B300G400 is made of beryllium copper and is gold-plated.
