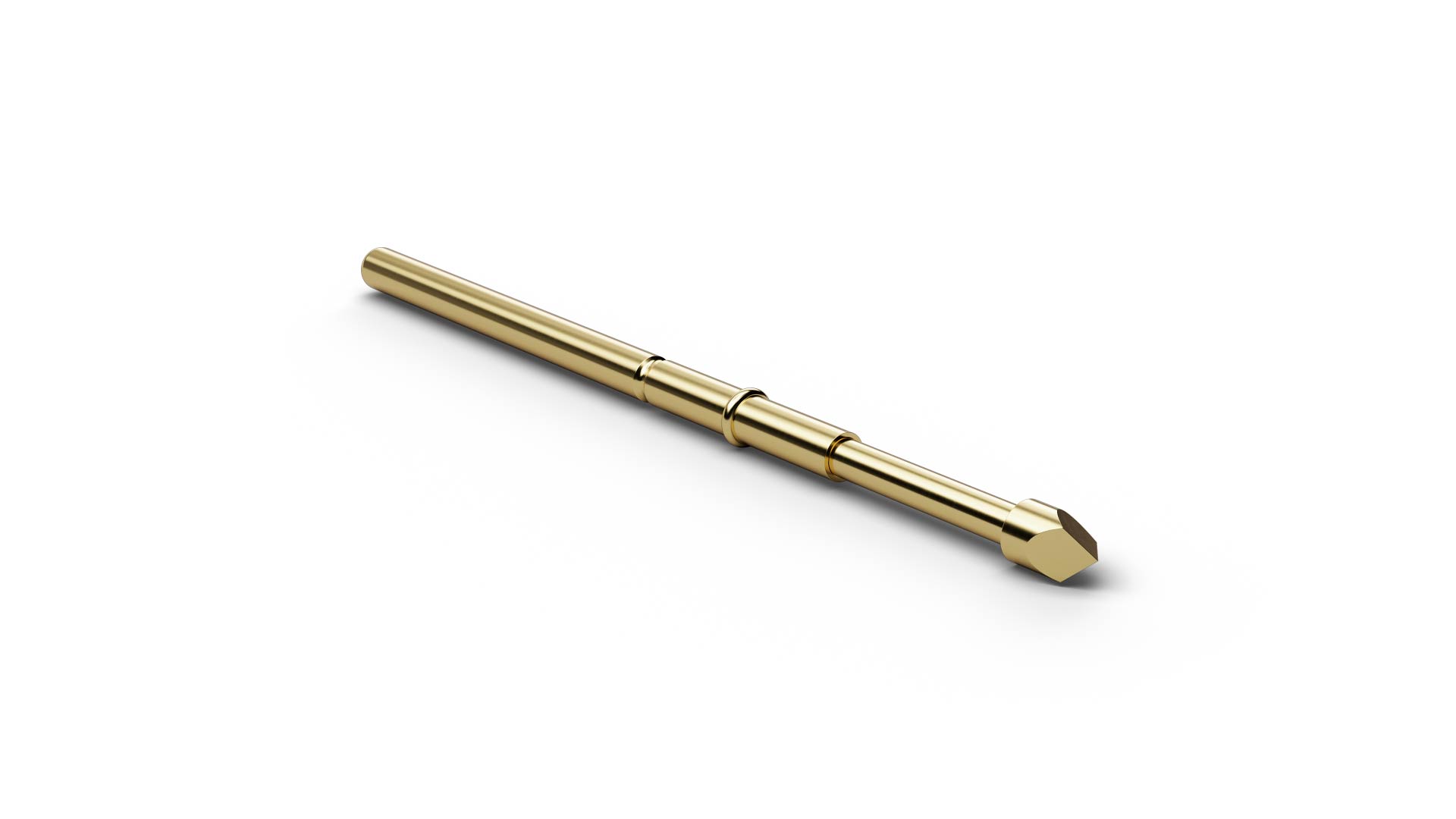

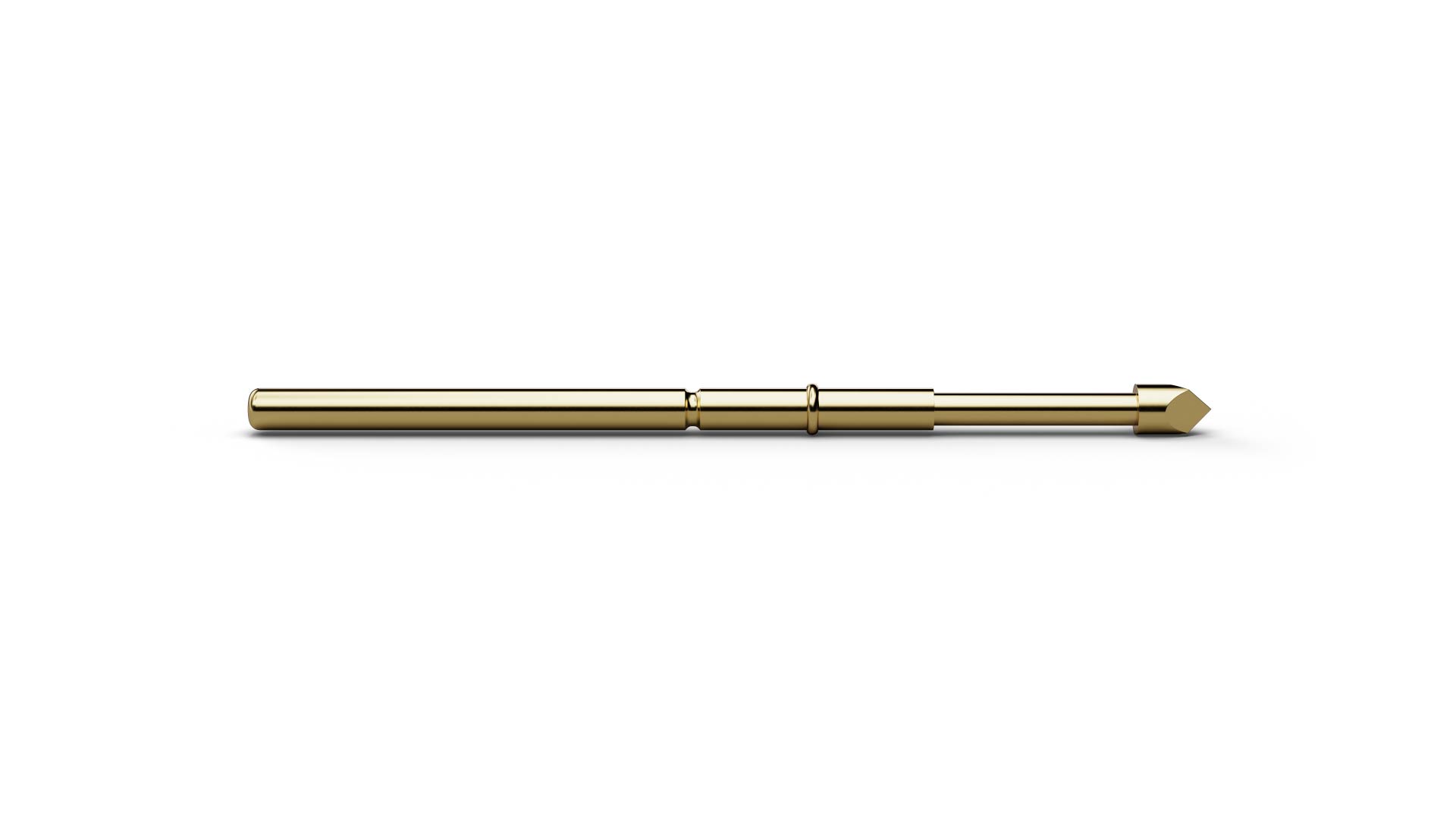

F78615B200G150 (item number 1001555) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 15 (Triangular 45° stepped), F78615B200G150 combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F78615B200G150 combines a pitch of 2.54 mm / 100 mil with tip style 15 (Triangular 45° stepped) and a tip diameter of 2 mm. For F78615B200G150, spring force is 150 cN at a nominal travel of 6.4 mm. F78615B200G150 is rated for 5 A continuous current with a typical contact resistance of 25 mΩ. The plunger in F78615B200G150 is made of beryllium copper and is gold-plated.
