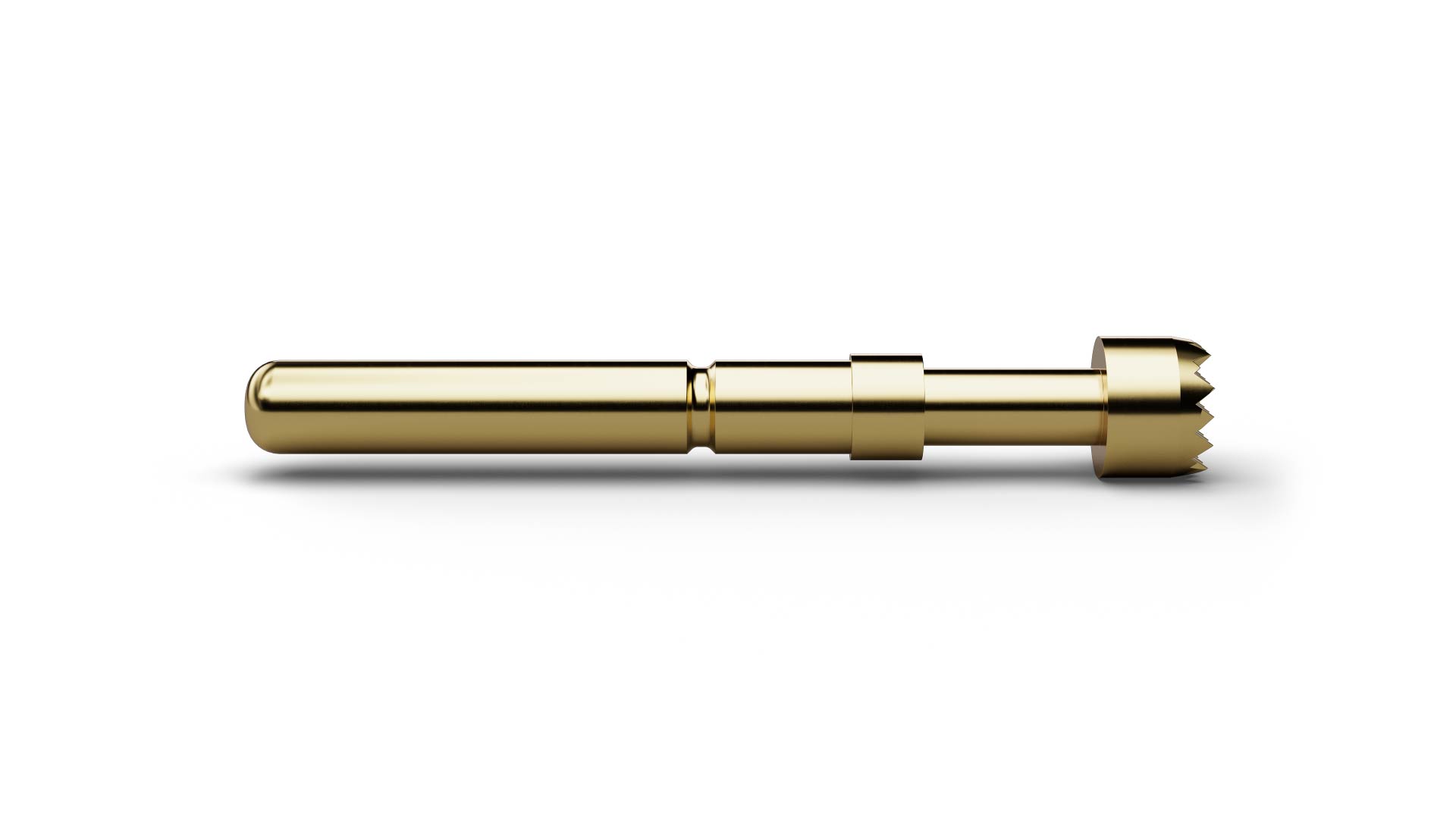

As a Basic Contact Probe, F77306B400G150 (item number 1001584) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F77306B400G150 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77306B400G150 combines a pitch of 3.5 mm / 138 mil with tip style 06 (Serrated stepped) and a tip diameter of 4 mm. For F77306B400G150, spring force is 150 cN at a nominal travel of 4 mm. The electrical rating of F77306B400G150 combines 10 A continuous current with 25 mΩ typical contact resistance. The plunger in F77306B400G150 is made of beryllium copper and is gold-plated.
