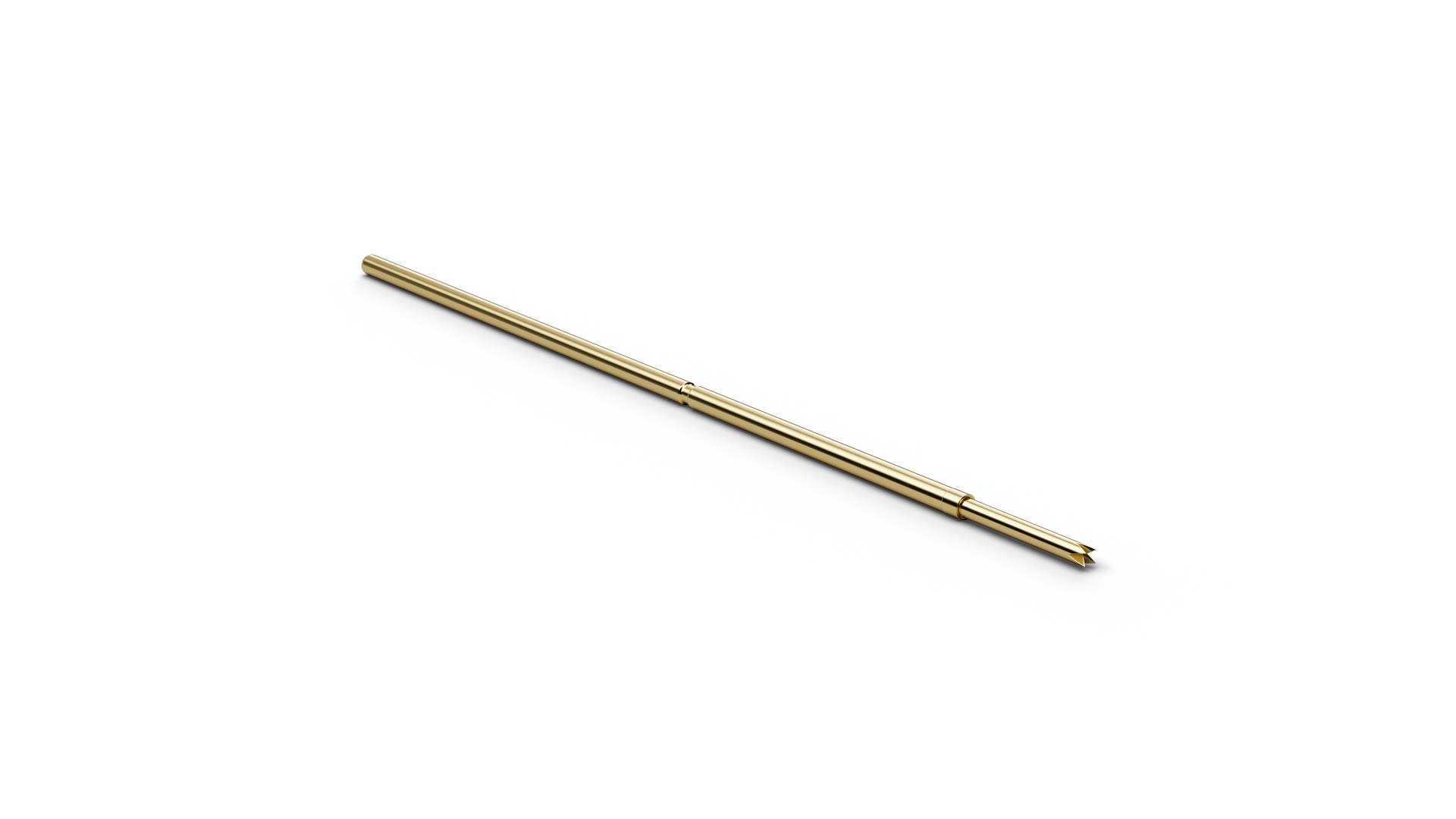

As a Basic Contact Probe, F76821S060L130 (item number 1001614) establishes a spring-loaded electrical connection to the test point. With tip style 21 (4-point crown (self-cleaning)), F76821S060L130 combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F76821S060L130 combines a pitch of 1.27 mm / 50 mil with tip style 21 (4-point crown (self-cleaning)) and a tip diameter of 0.6 mm. F76821S060L130 operates with 130 cN spring force and 3.2 mm nominal travel. F76821S060L130 is rated for 3 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F76821S060L130 is made of steel and uses Longtime Gold plating.
