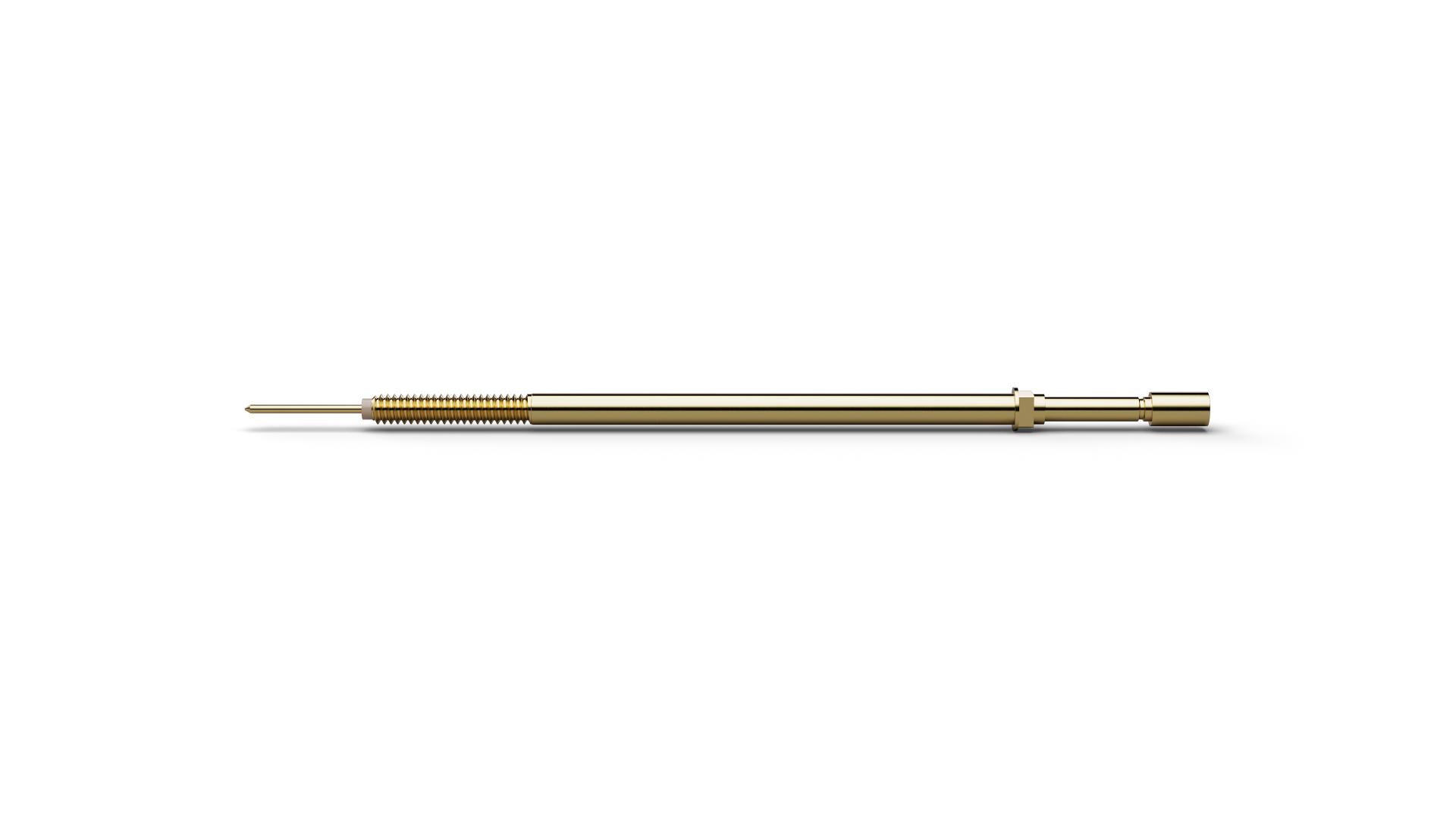

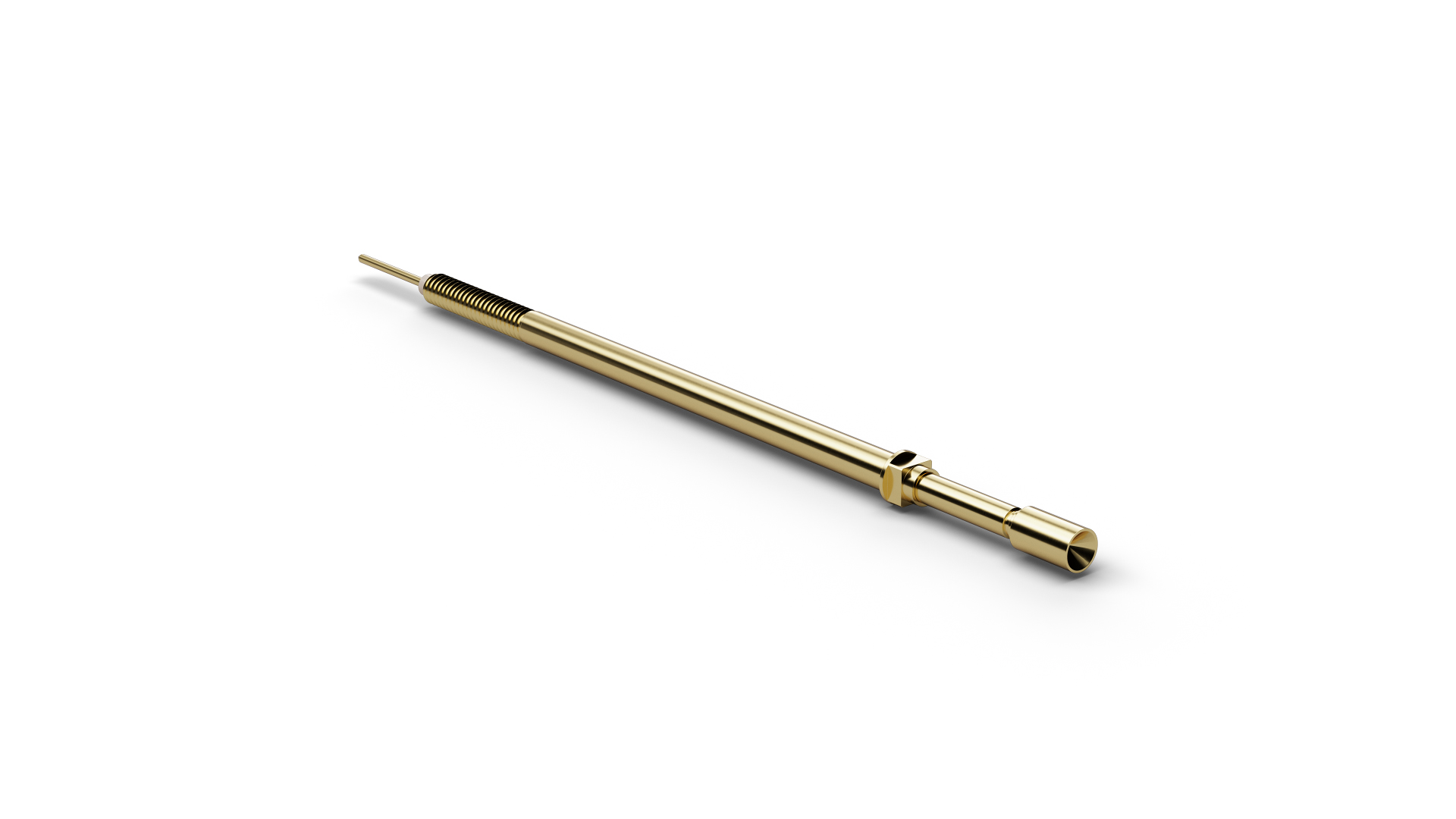

The Normally Open Switch Probe F87505B180G200 (item number 1001713) combines spring-loaded contacting with a defined switching or sensing function. F87505B180G200 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. In F87505B180G200, the normally open function closes the electrical contact at the defined actuation travel, combining contacting with presence or position information. For F87505B180G200, spring force is 200 cN at a nominal travel of 4 mm. F87505B180G200 is rated for 5 A continuous current with a typical contact resistance of 65 mΩ. F87505B180G200 combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 1.8 mm.
