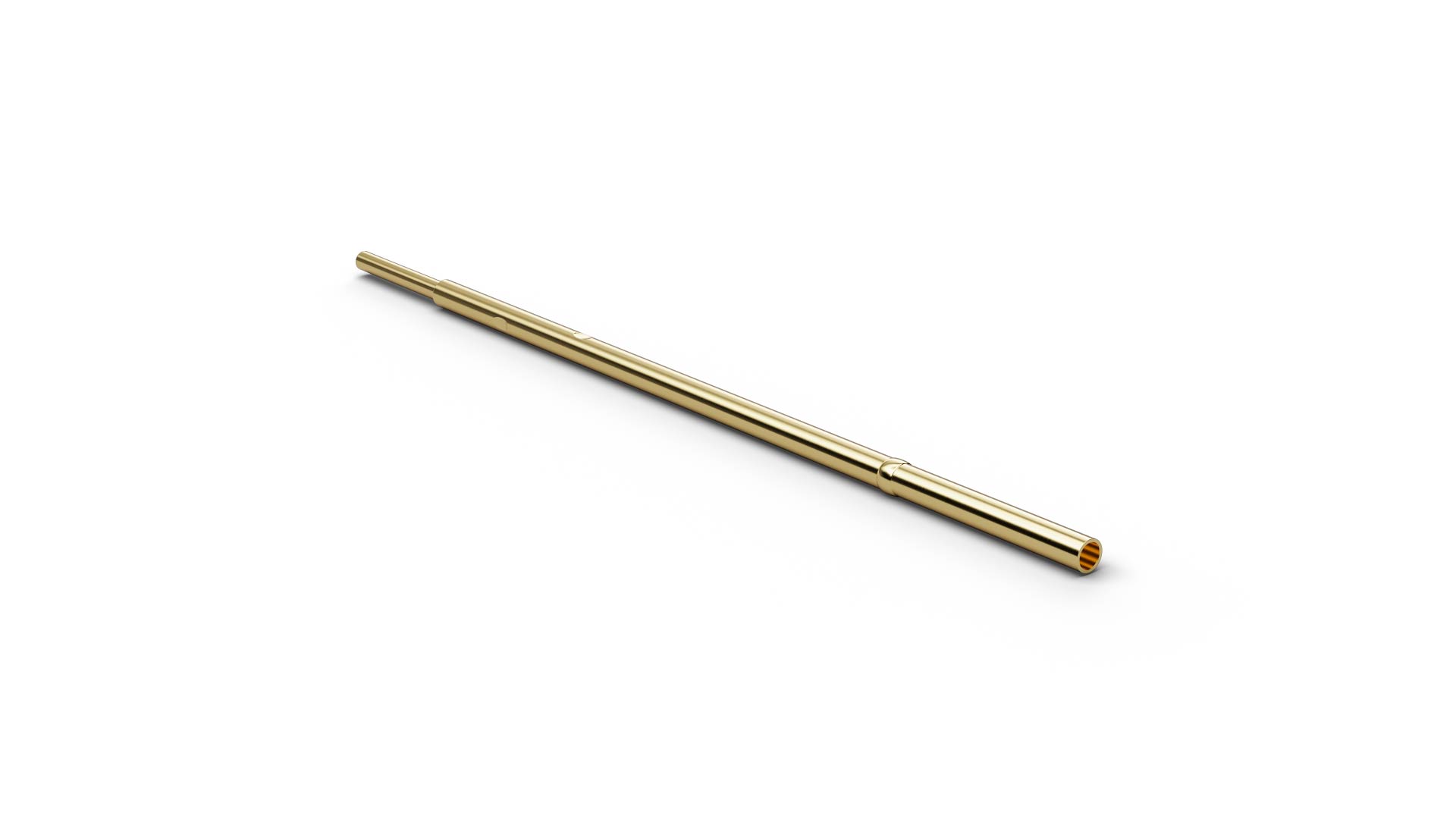

H787CR (item number 1001854) is a receptacle for the compatible Basic Contact Probe and defines its installed position in the test fixture. As a Receptacle, H787CR guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant installation data includes pitch 1.27 mm / 50 mil, outside diameter 0.98 mm, length 36.07 mm, connection type Crimp Connection. When selecting H787CR, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
