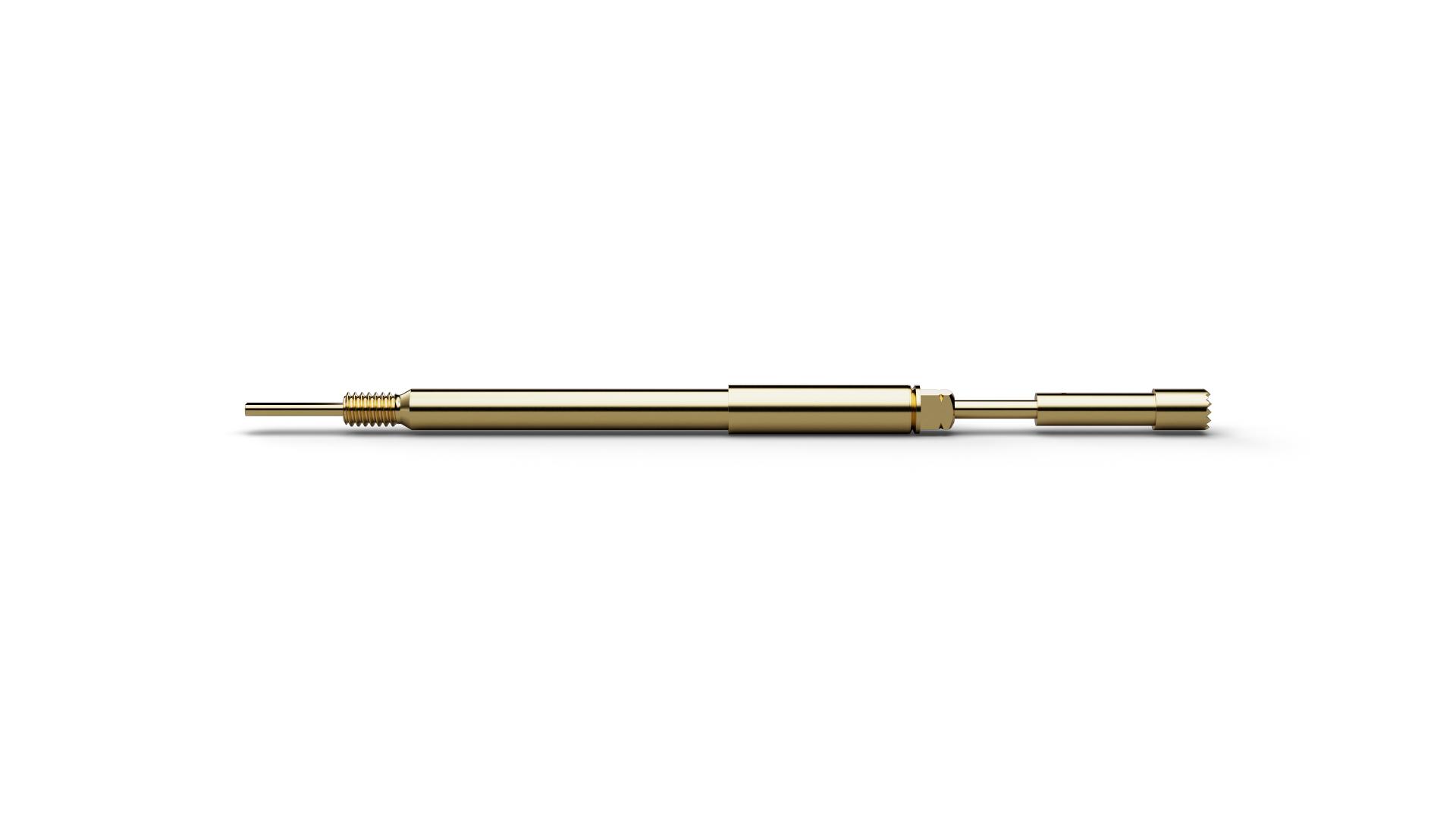

The Push Back Probe VF406B300G15 (item number 1002330) is designed to verify that terminals are correctly locked in connector housings. VF406B300G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF406B300G15, spring force is 1500 cN at a nominal travel of 5 mm. Pointing accuracy for VF406B300G15 is specified as ±0.1 mm. VF406B300G15 is rated for 10 A continuous current with a typical contact resistance of 30 mΩ. For installation, VF406B300G15 uses an M2.5 x 0.35 thread.
