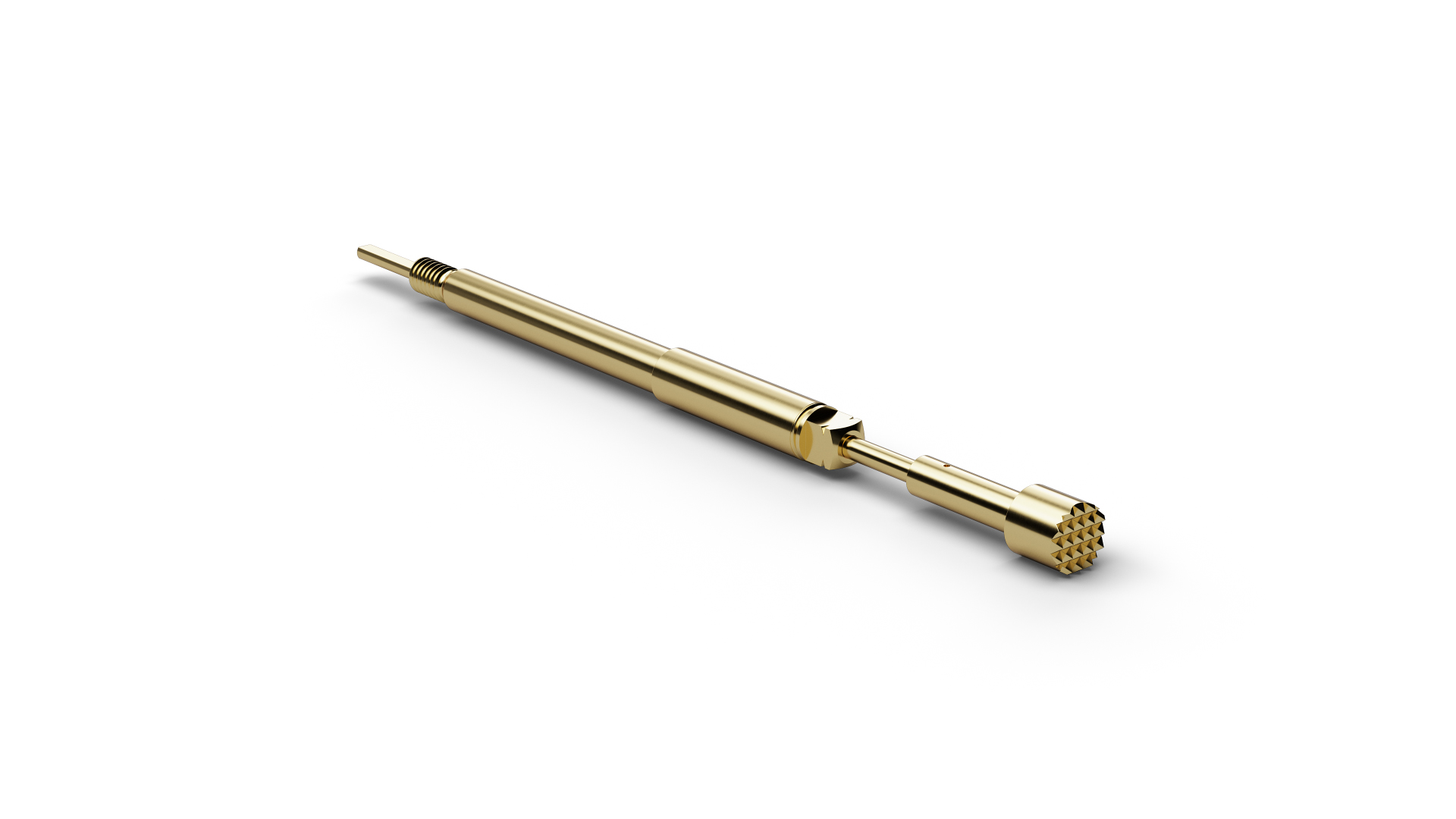

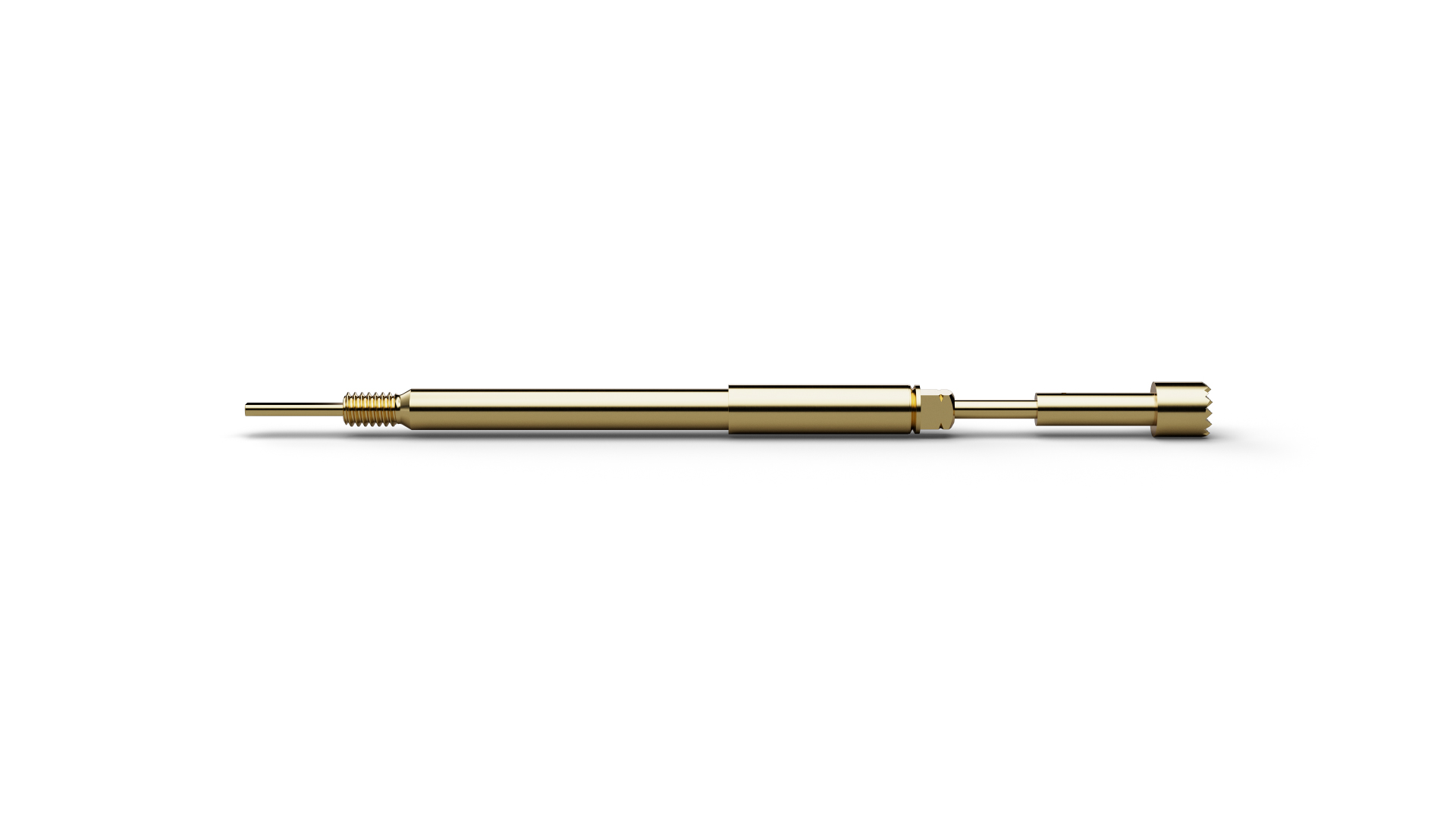

The Push Back Probe VF406B400G15 (item number 1002337) is designed to verify that terminals are correctly locked in connector housings. VF406B400G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. VF406B400G15 operates with 1500 cN spring force and 5 mm nominal travel. Pointing accuracy for VF406B400G15 is specified as ±0.1 mm. VF406B400G15 is rated for 10 A continuous current with a typical contact resistance of 30 mΩ. For installation, VF406B400G15 uses an M2.5 x 0.35 thread.
