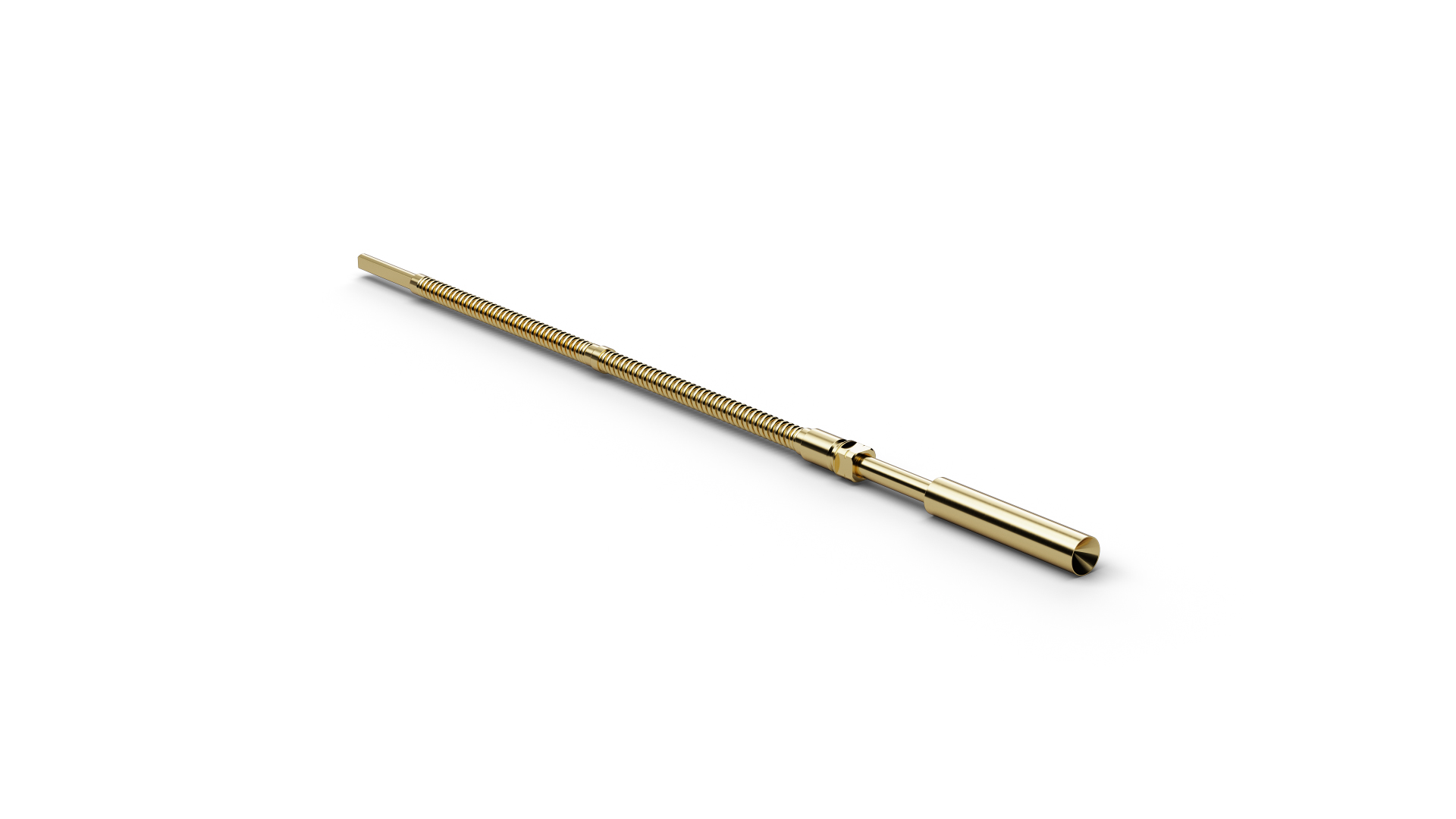

The Push Back Probe VF10005B220G15 (item number 1005144) is designed to verify that terminals are correctly locked in connector housings. VF10005B220G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF10005B220G15, spring force is 1500 cN at a nominal travel of 5 mm. Pointing accuracy for VF10005B220G15 is specified as ±0.1 mm. The electrical rating of VF10005B220G15 combines 5 A continuous current with 30 mΩ typical contact resistance. For installation, VF10005B220G15 uses an M2 x 0.25 thread.
