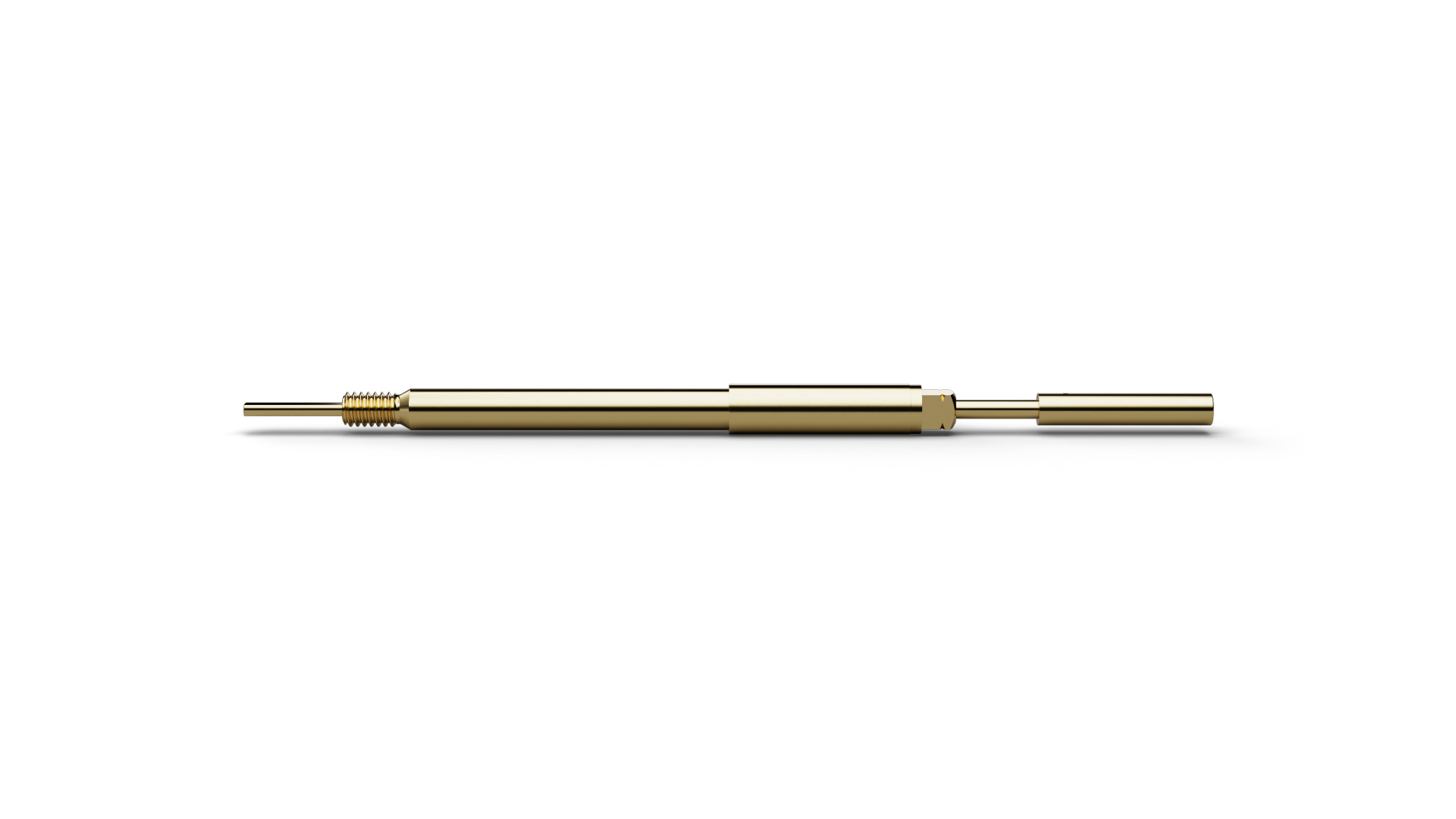

The Push Back Probe VF416B230G10 (item number 1005242) is designed to verify that terminals are correctly locked in connector housings. VF416B230G10 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. For VF416B230G10, spring force is 1000 cN at a nominal travel of 5 mm. Pointing accuracy for VF416B230G10 is specified as ±0.1 mm. VF416B230G10 is rated for 10 A continuous current with a typical contact resistance of 30 mΩ. For installation, VF416B230G10 uses an M2.5 x 0.35 thread.
