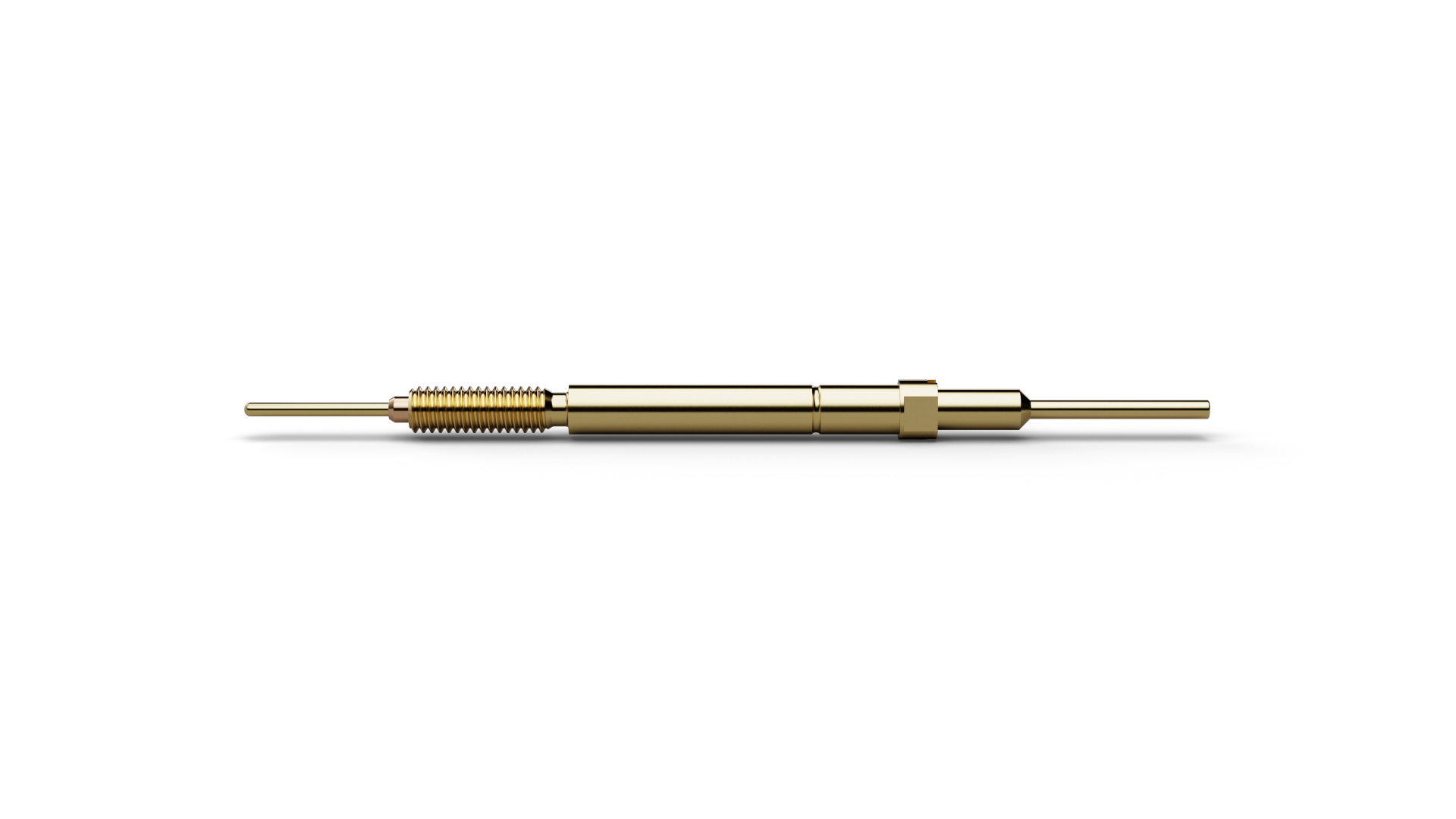

The Switch Probe F88516B100G350LM (item number 1006422) combines spring-loaded contacting with a defined switching or sensing function. F88516B100G350LM combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88516B100G350LM is NO (Normally Open). The switching travel specified for F88516B100G350LM is 1.7 mm. F88516B100G350LM combines a pitch of 3.5 mm / 138 mil with tip style 16 (Flat) and a tip diameter of 1 mm. F88516B100G350LM operates with 350 cN spring force and 4 mm nominal travel.
