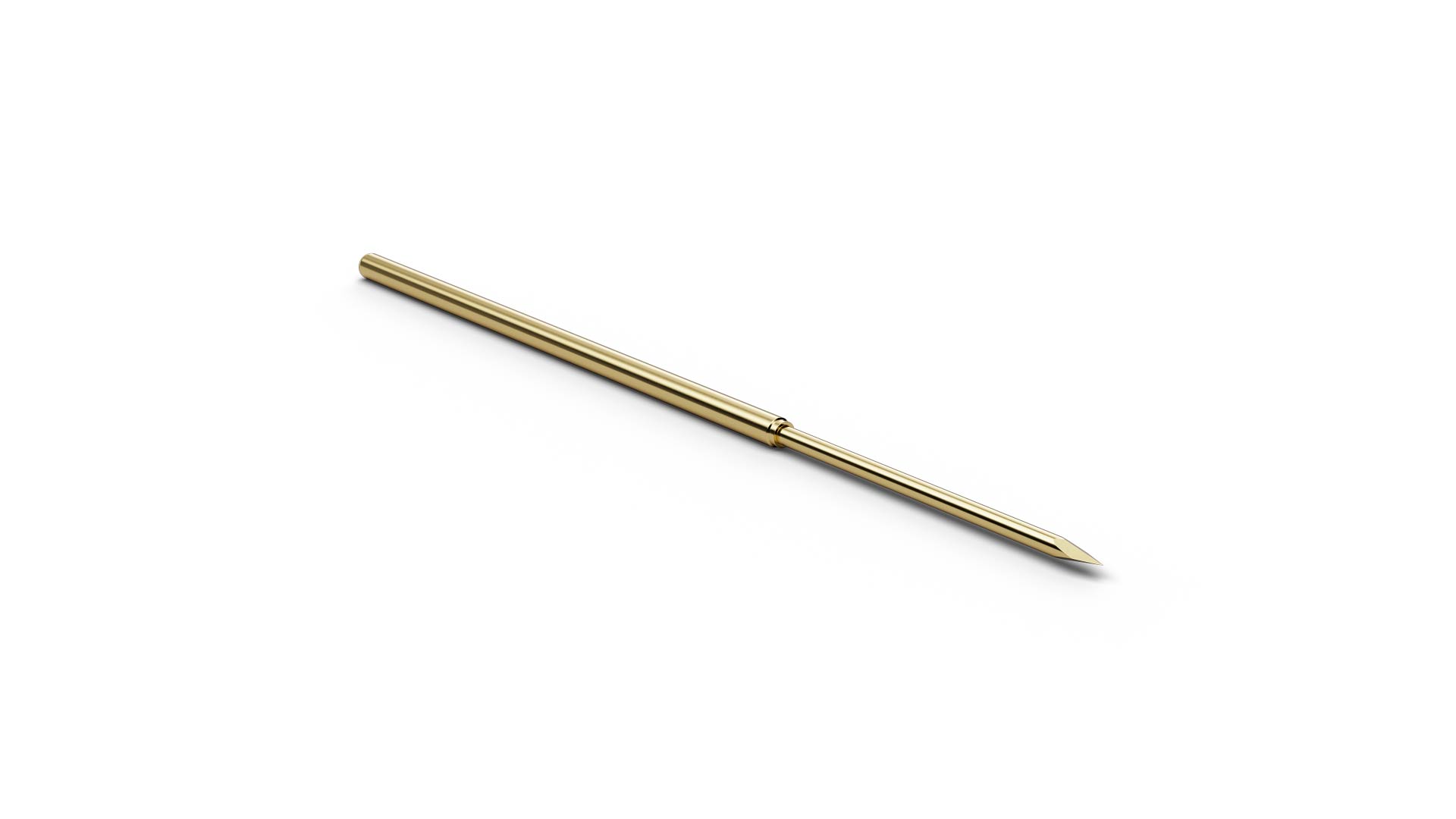

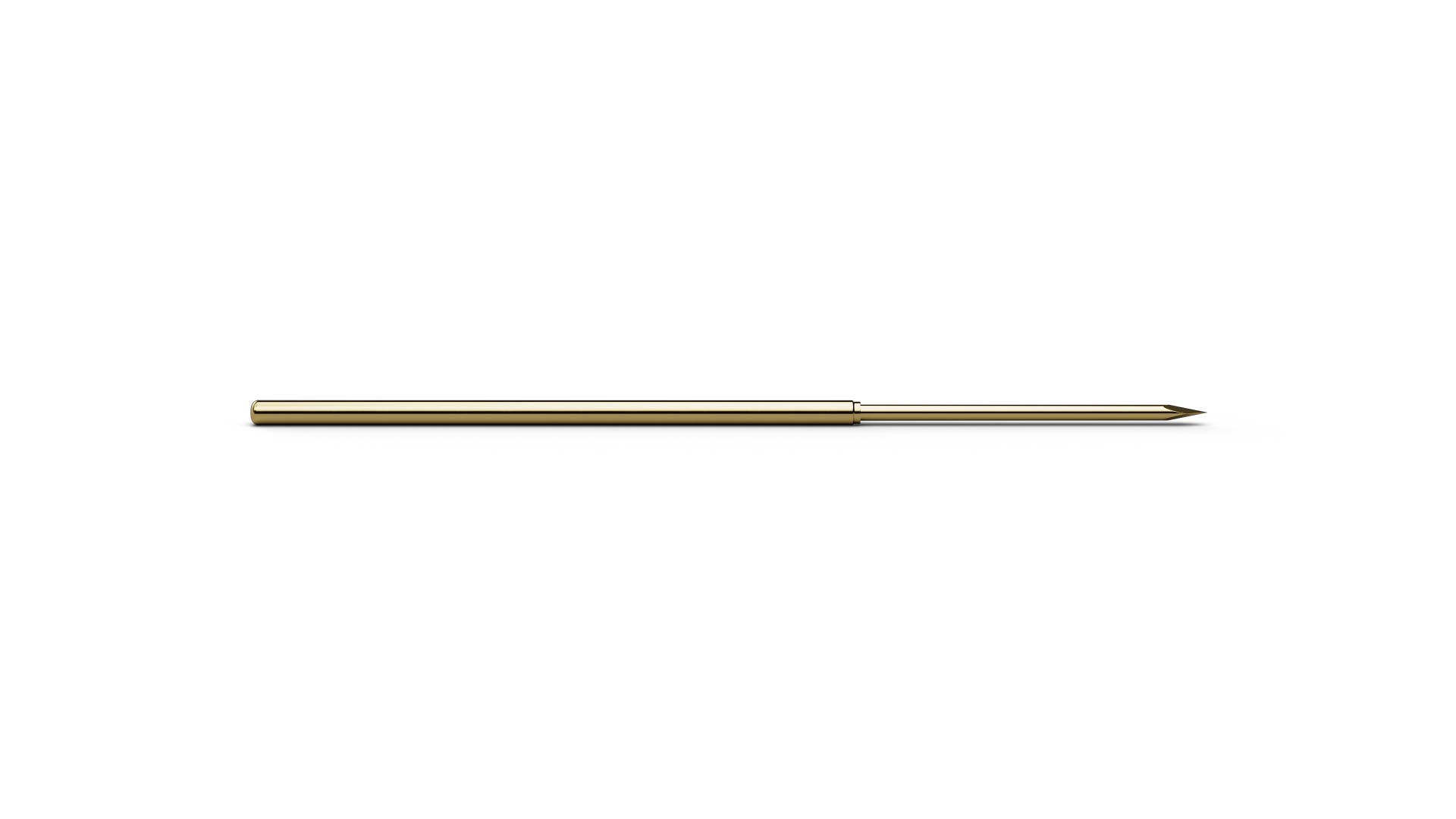

F79333S064L120L (item number 1007134) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 33 (Square lance 38°), F79333S064L120L combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F79333S064L120L combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. F79333S064L120L operates with 120 cN spring force and 8 mm nominal travel. F79333S064L120L is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F79333S064L120L is made of steel and uses Longtime Gold plating.
