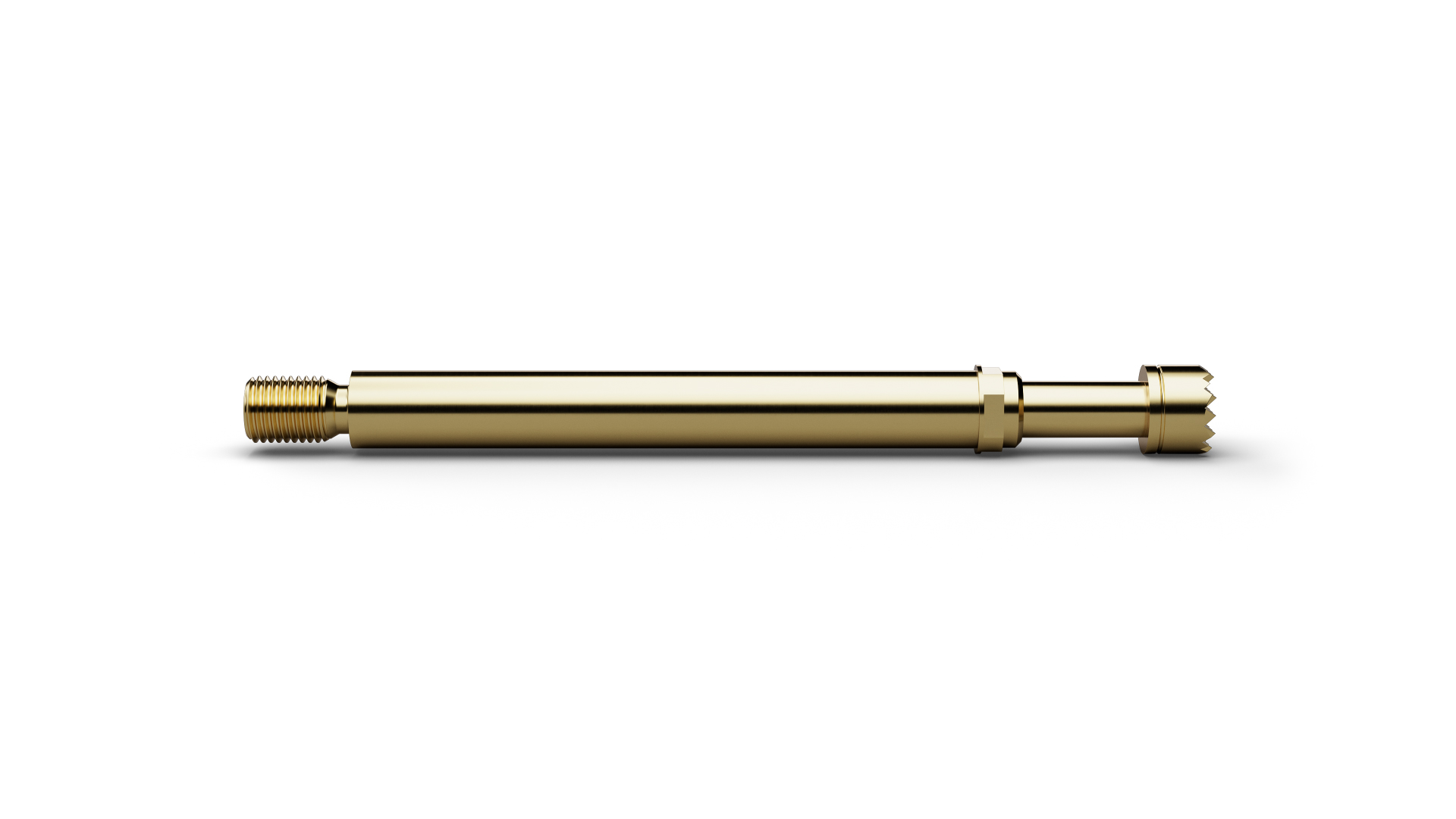

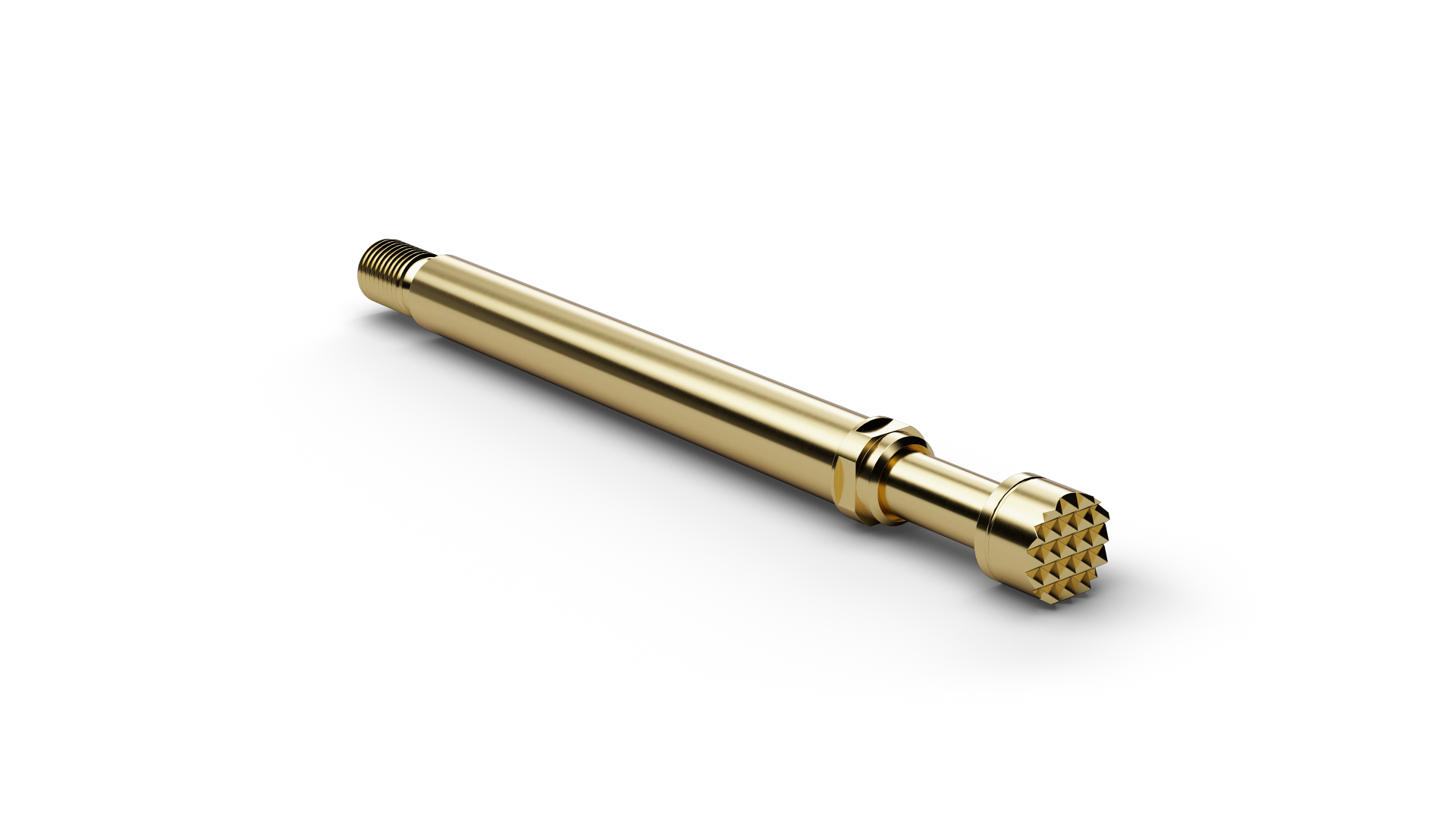

The High Current Probe HCF73506B400G500 (item number 1008625) is designed for safe transmission of high electrical currents in test and contacting applications. HCF73506B400G500 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF73506B400G500, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF73506B400G500 includes battery and power-electronics testing. The electrical rating of HCF73506B400G500 combines 50 A continuous current with 5 mΩ typical contact resistance. HCF73506B400G500 operates with 500 cN spring force and 4.4 mm nominal travel.
