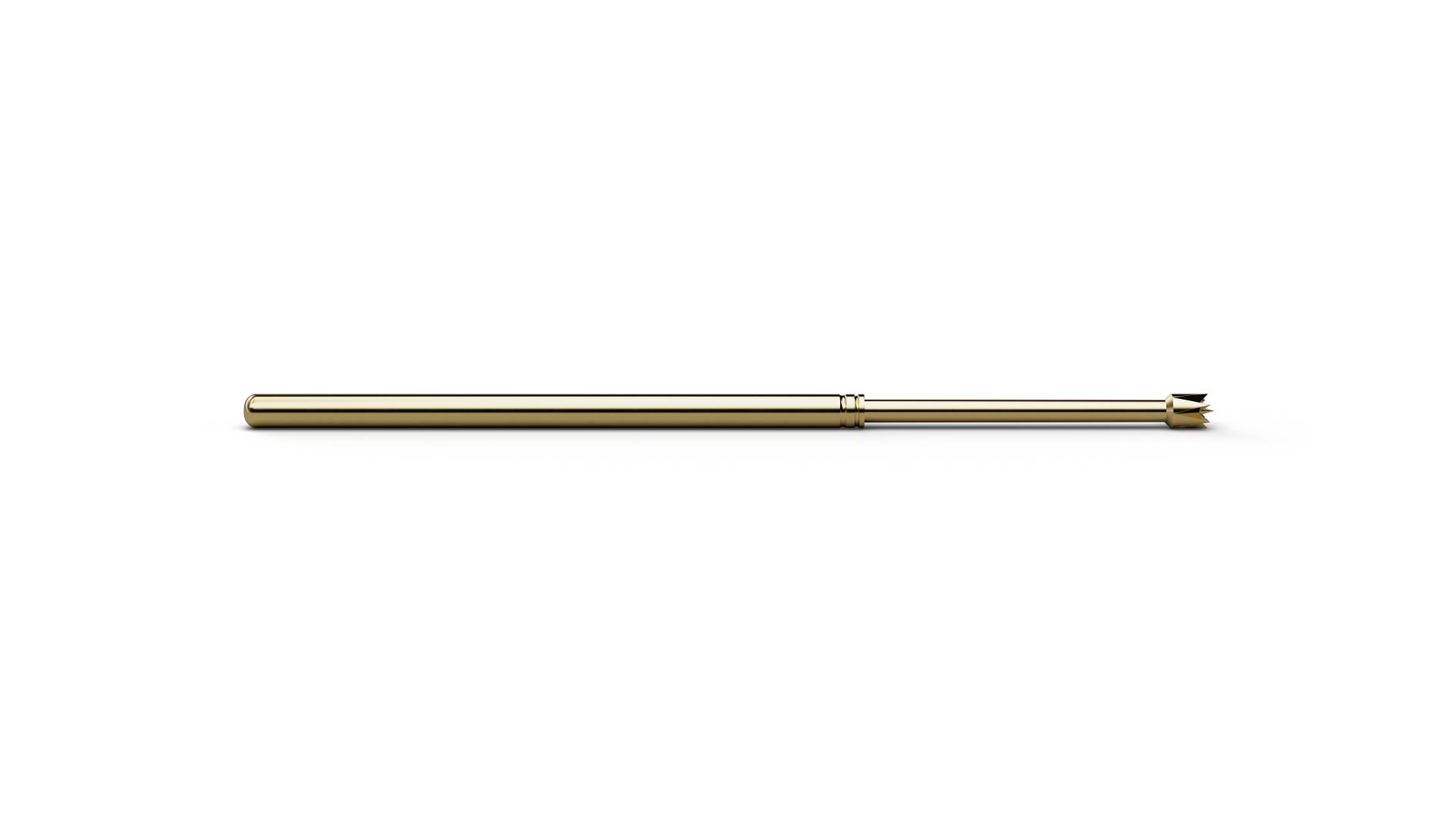

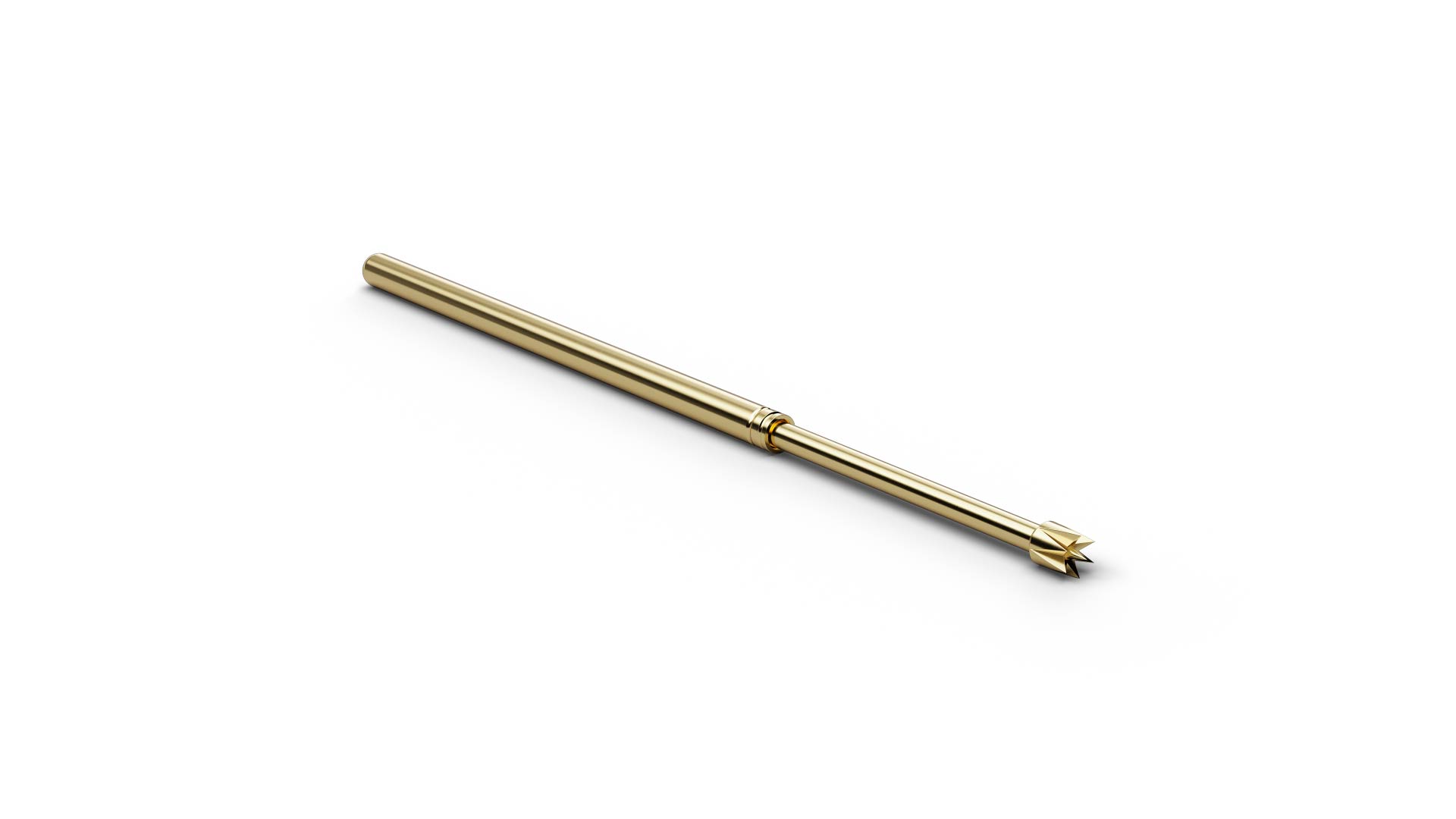

The Basic Contact Probe F58836S140L300 (item number 1008855) is a spring-loaded probe for temporary electrical contact with test points. With tip style 36 (6-point crown stepped, middle pin longer), F58836S140L300 combines ICT/FCT use with a geometry intended for plated or filled vias. F58836S140L300 combines a pitch of 2.54 mm / 100 mil with tip style 36 (6-point crown stepped, middle pin longer) and a tip diameter of 1.4 mm. F58836S140L300 operates with 300 cN spring force and 9.3 mm nominal travel. The electrical rating of F58836S140L300 combines 5 A continuous current with 30 mΩ typical contact resistance. The plunger in F58836S140L300 is made of steel and uses Longtime Gold plating.
