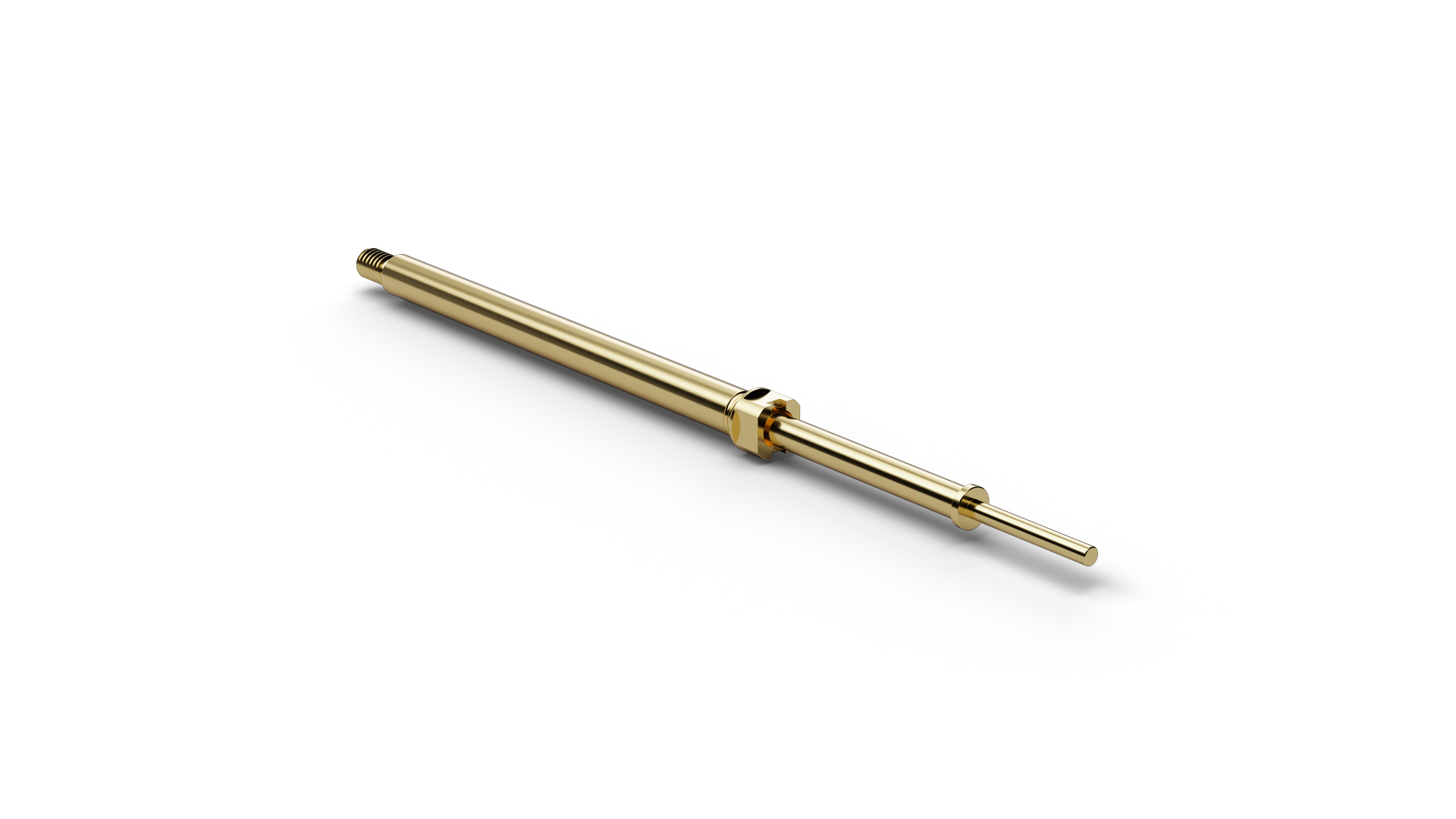

For contact points inside housings and recesses, F73716B0001G300SP (item number 1009412) uses a flat plate head at a defined penetration depth. On F73716B0001G300SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 1 mm, plate diameter 2.3 mm, pin length 8 mm. On F73716B0001G300SP, a pitch of 4 mm / 157 mil is combined with 300 cN spring force and 12 mm nominal travel. The continuous-current rating of F73716B0001G300SP is 10 A. The plunger in F73716B0001G300SP is made of beryllium copper and is gold-plated.
