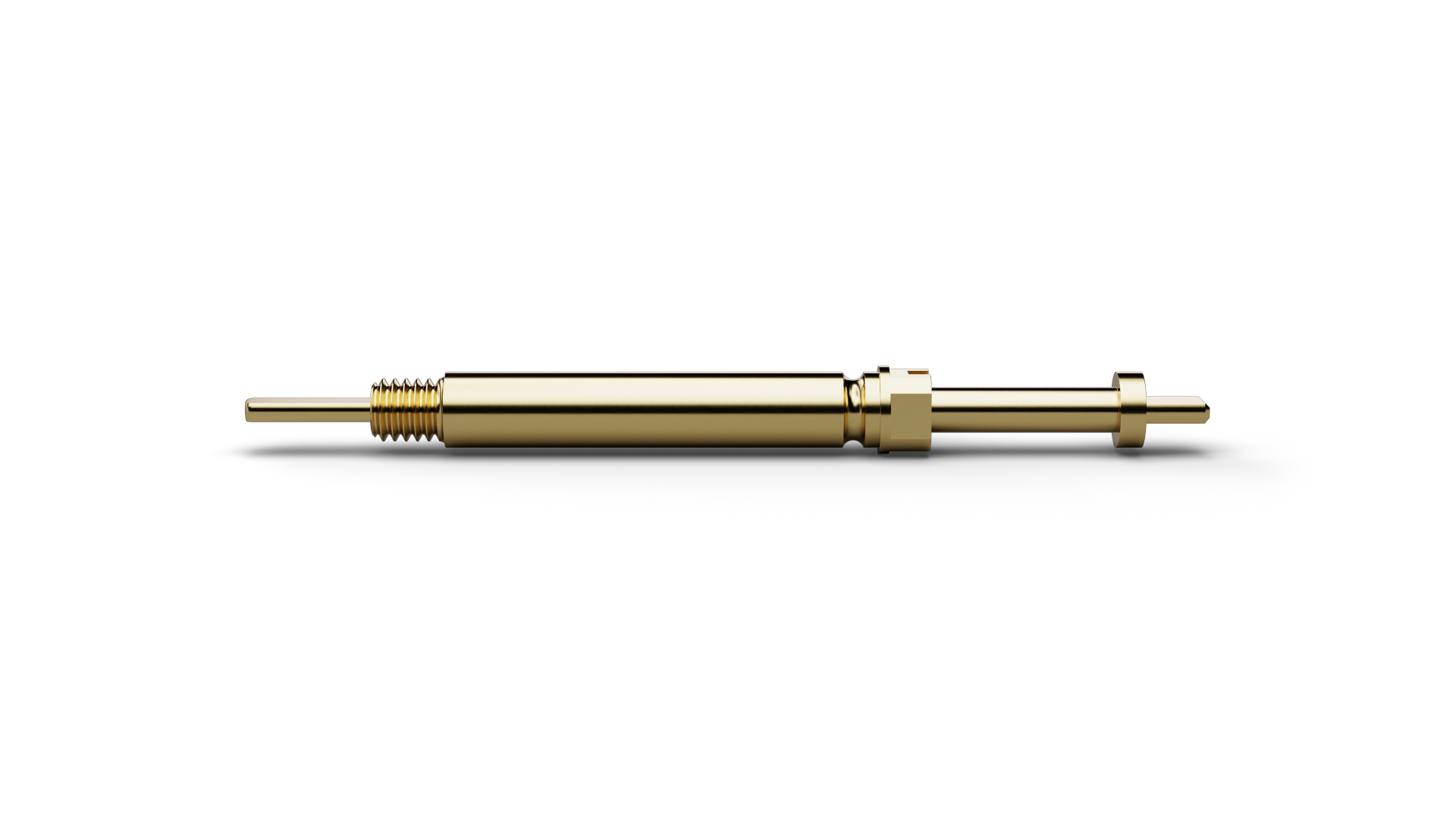

The Twist Proof Probe F75589B0001G300E13 (item number 1009861) is designed for connector tests where the orientation of the contact geometry must remain defined. On F75589B0001G300E13, tip style 89 (Special version of spade tips) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. Orientation-relevant dimensions include spade diameter 1.8 mm, spade width 0.8 mm, spade length 2.6 mm. The design combines a pitch of 4.5 mm / 177 mil with tip style 89 (Special version of spade tips) and a tip diameter of 1.8 mm. For F75589B0001G300E13, spring force is 300 cN at a nominal travel of 5.6 mm. F75589B0001G300E13 is specified for 10 A continuous current.
