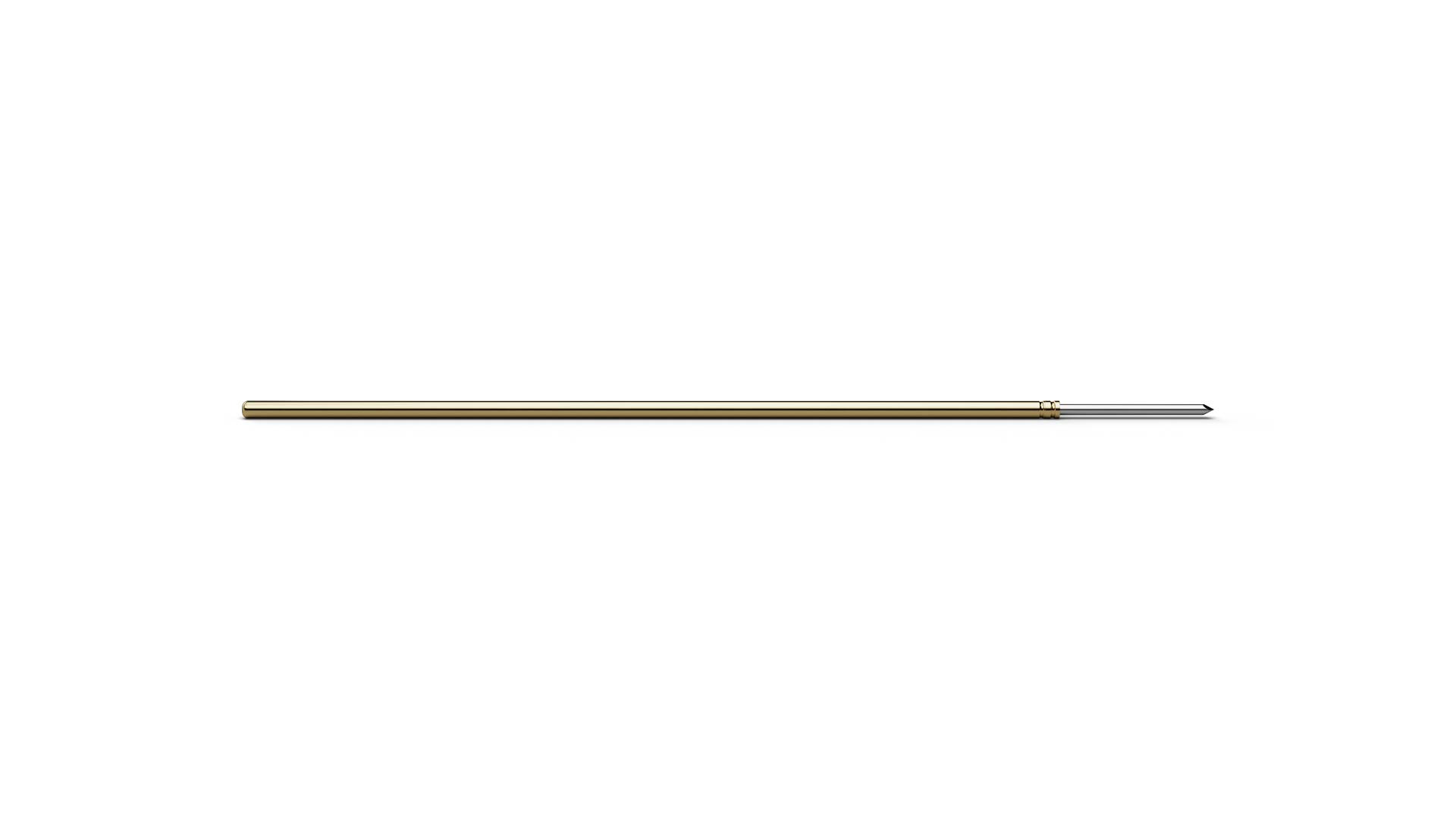

F05043S050P130HP (item number 1010345) is a Basic Contact Probe for repeatable temporary connections between the test system and a test point. With tip style 43 (Square lance 90°), F05043S050P130HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05043S050P130HP combines a pitch of 1.27 mm / 50 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.5 mm. For F05043S050P130HP, spring force is 130 cN at a nominal travel of 4.3 mm. F05043S050P130HP is rated for 3 A continuous current with a typical contact resistance of 40 mΩ. On F05043S050P130HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
