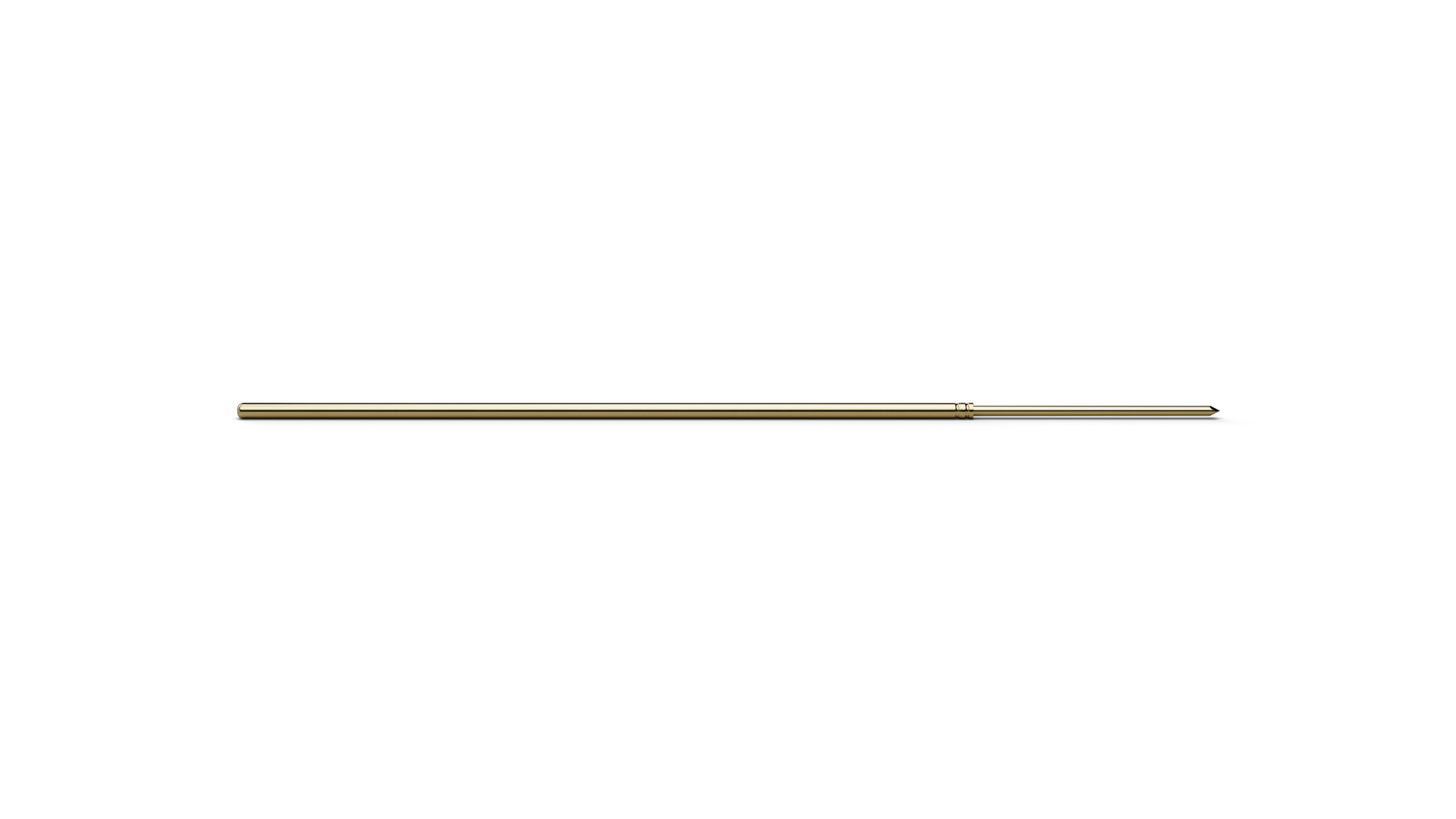

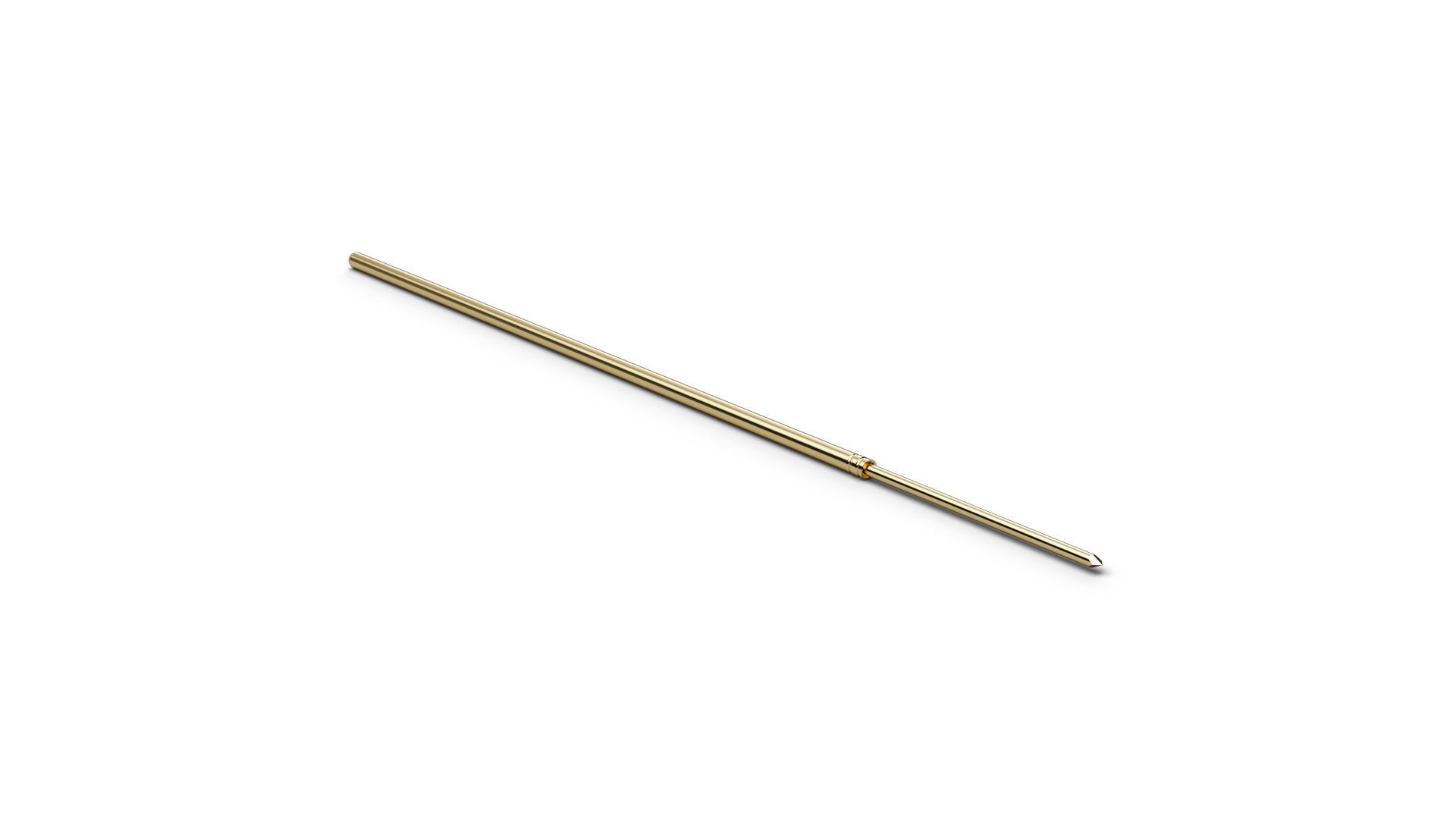

As a Basic Contact Probe, F05143S050L150 (item number 1011293) establishes a spring-loaded electrical connection to the test point. With tip style 43 (Square lance 90°), F05143S050L150 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05143S050L150 combines a pitch of 1.27 mm / 50 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.5 mm. F05143S050L150 operates with 150 cN spring force and 8 mm nominal travel. F05143S050L150 is rated for 3 A continuous current with a typical contact resistance of 40 mΩ. The plunger in F05143S050L150 is made of steel and uses Longtime Gold plating.
