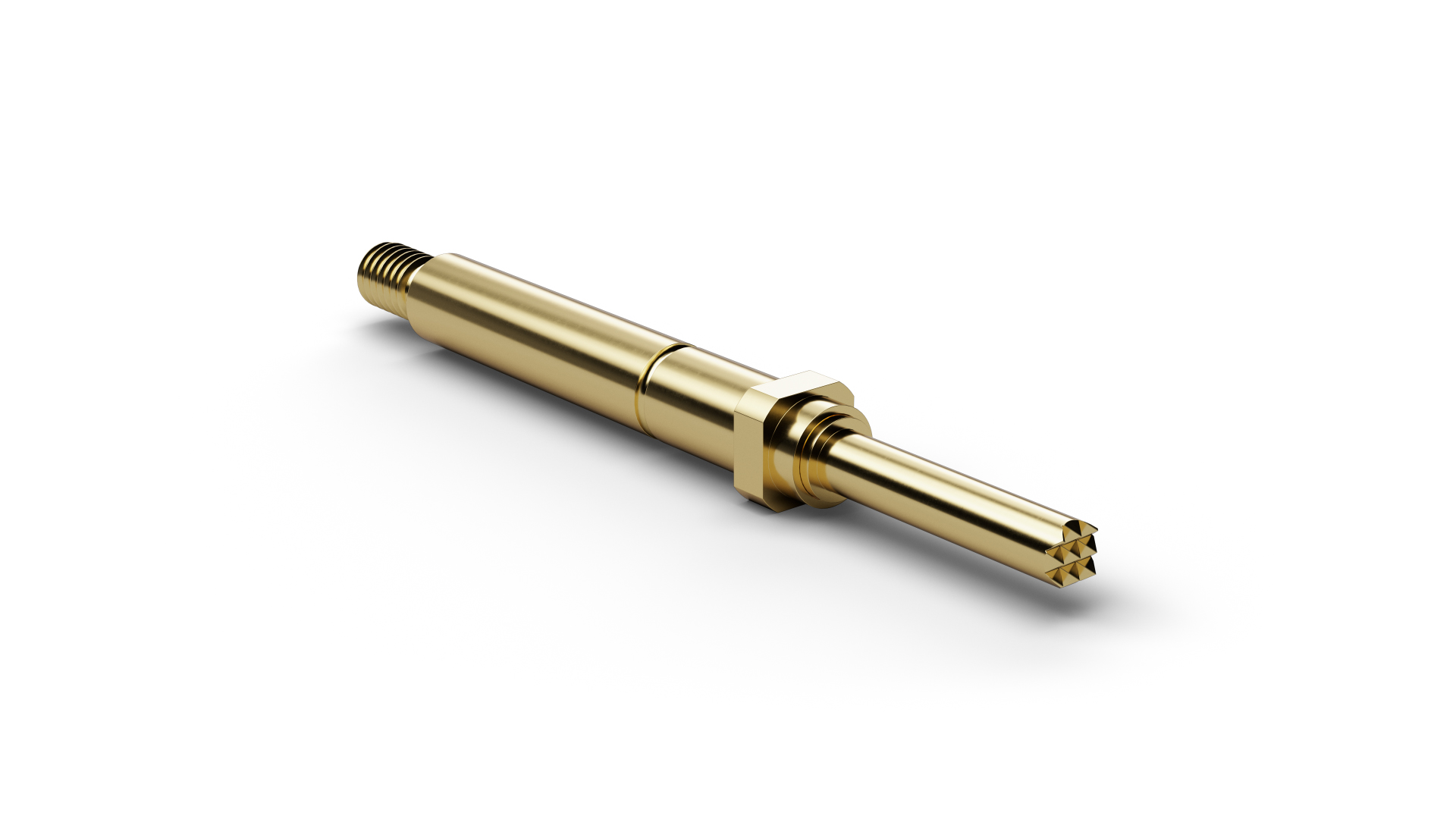

F73306B160G150 (item number 1012060) combines spring-loaded contacting with a secure threaded mounting concept. The threaded mounting of F73306B160G150 supports secure seating in wire-harness and connector tests, including setups exposed to vibration or lateral forces. The secure mechanical seat of F73306B160G150 is particularly useful in wire-harness and connector testing and in fixtures exposed to vibration or lateral forces. For installation, F73306B160G150 uses an M2 thread. On F73306B160G150, a pitch of 4 mm / 157 mil is combined with 150 cN spring force and 4 mm nominal travel. F73306B160G150 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ.
