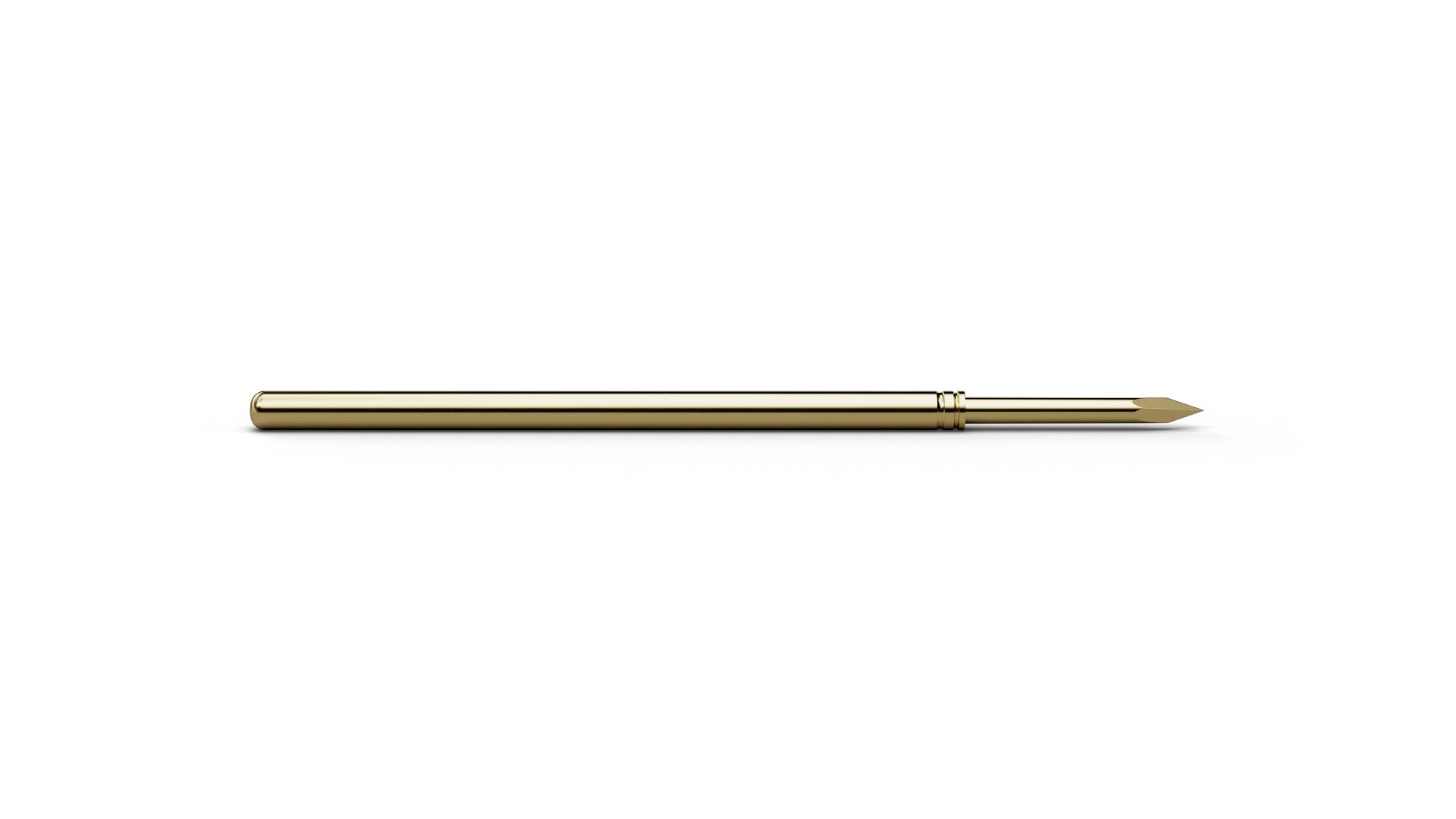

As a Basic Contact Probe, F10033S090L200H (item number 1012860) establishes a spring-loaded electrical connection to the test point. With tip style 33 (Square lance 38°), F10033S090L200H combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F10033S090L200H combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F10033S090L200H, spring force is 200 cN at a nominal travel of 4.3 mm. F10033S090L200H is rated for 5 A continuous current with a typical contact resistance of 100 mΩ. The plunger in F10033S090L200H is made of steel and uses Longtime Gold plating. As an H version, F10033S090L200H extends the operating range to high-temperature applications up to 200 °C.
