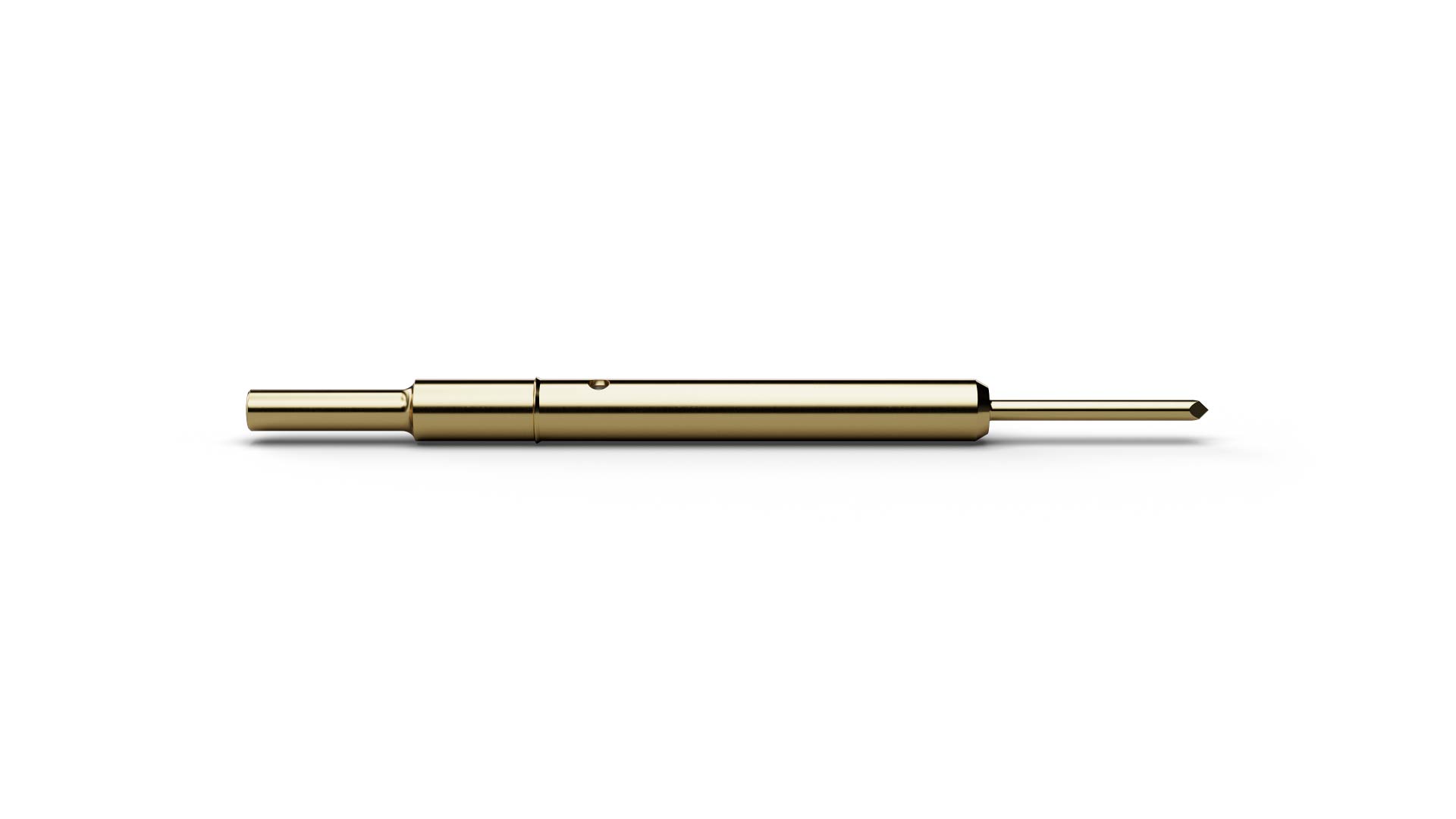

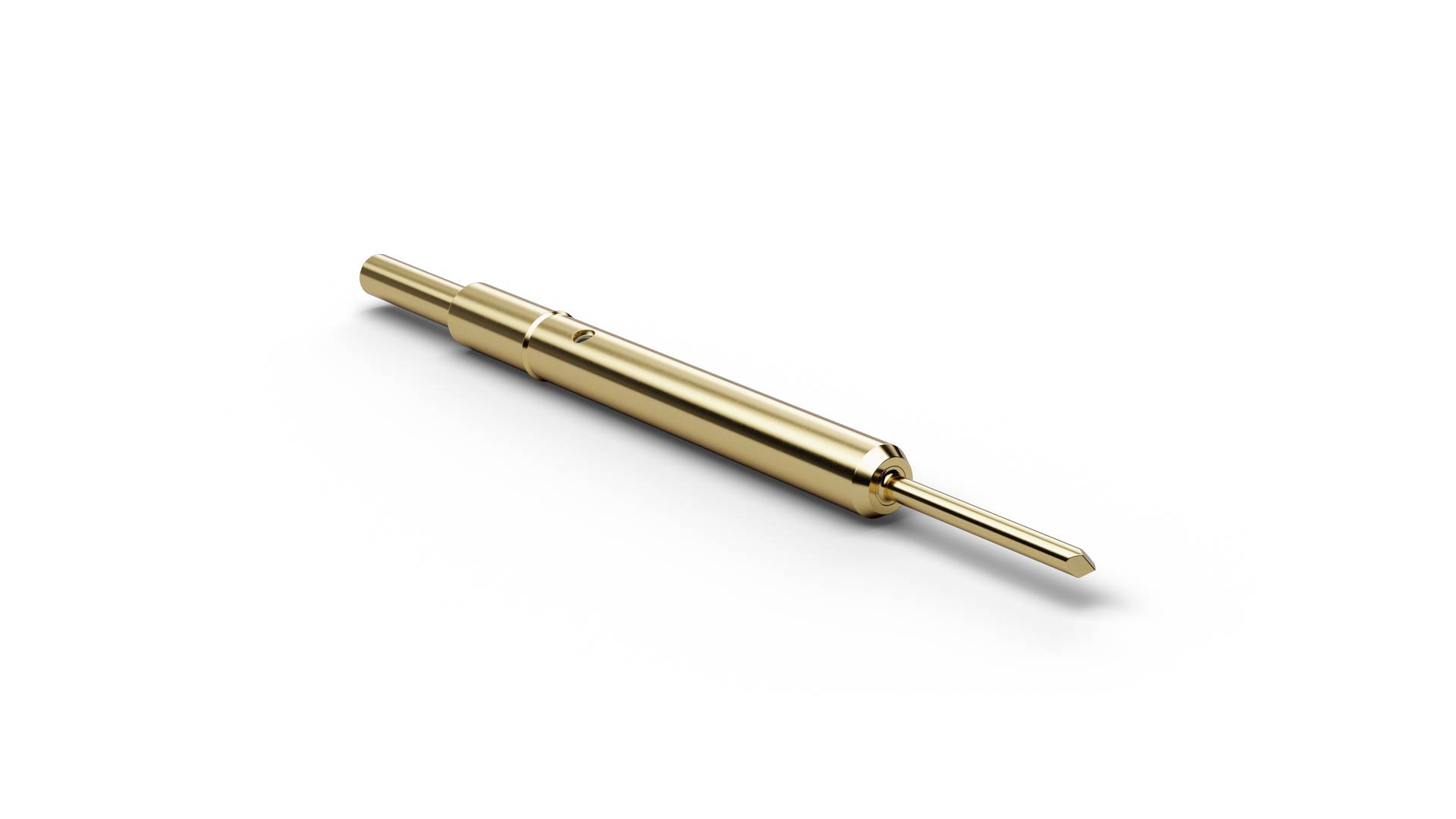

P14930B050G080L230WR (item number 1014269) belongs to the Pogo Connector range for compact, repeatedly actuated electrical contacts. As a spring-loaded detachable interface, P14930B050G080L230WR is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P14930B050G080L230WR is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. P14930B050G080L230WR combines a pitch of 1.8 mm / 71 mil with tip style 30 (Triangular 45°) and a tip diameter of 0.5 mm. P14930B050G080L230WR operates with 80 cN spring force and 3 mm nominal travel. For P14930B050G080L230WR, the specified continuous current is 5 A.
