기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H733 |
| 거리(mm/mil) | 4,0 / 157 |
| 치수 | |
|---|---|
| 전체 길이(mm) | 20.2 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Uncoated |
| 기계적 사양 | |
|---|---|
| 나사형 | 2,0 |

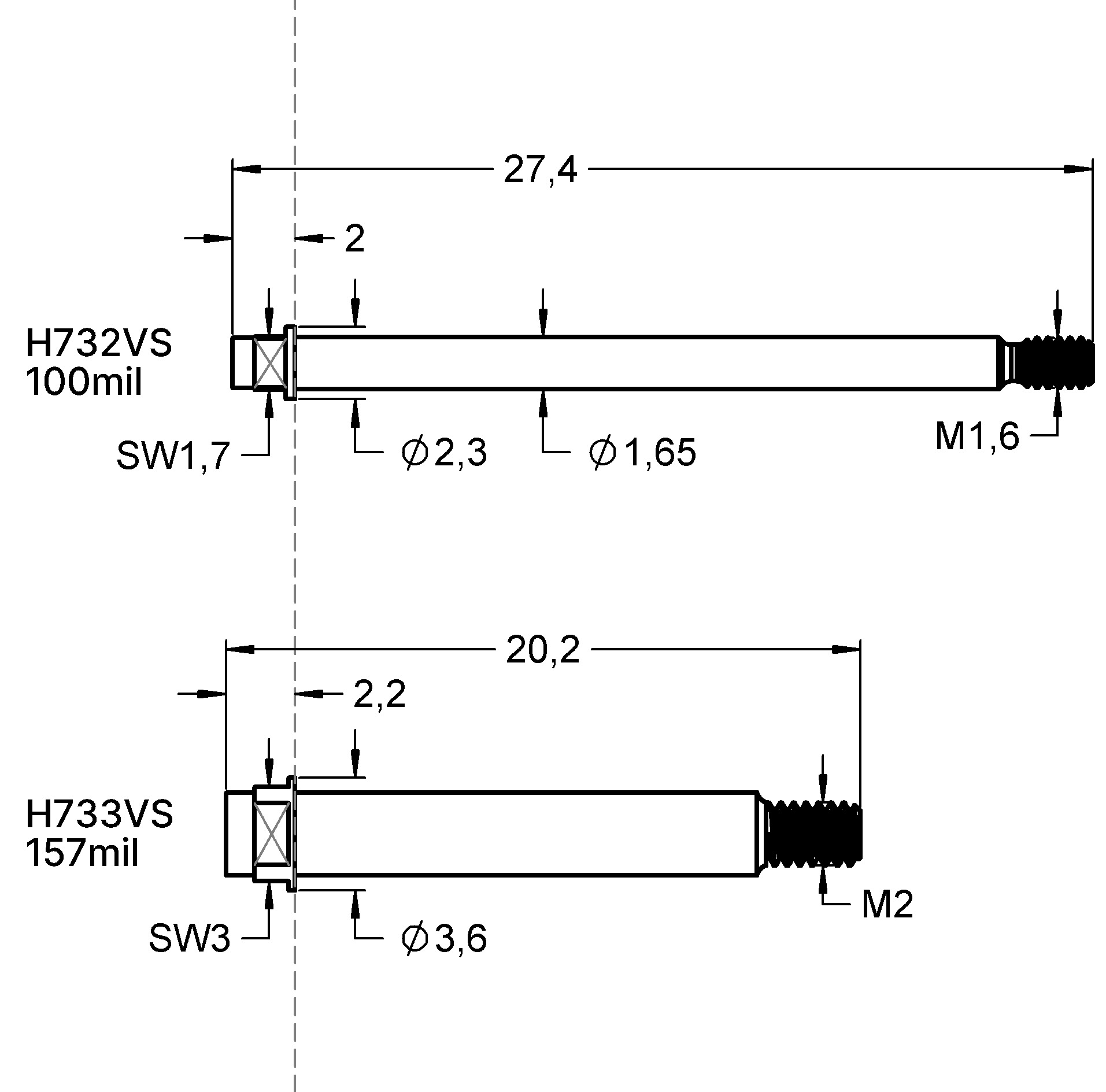

그래픽
Beschreibung des Produkts

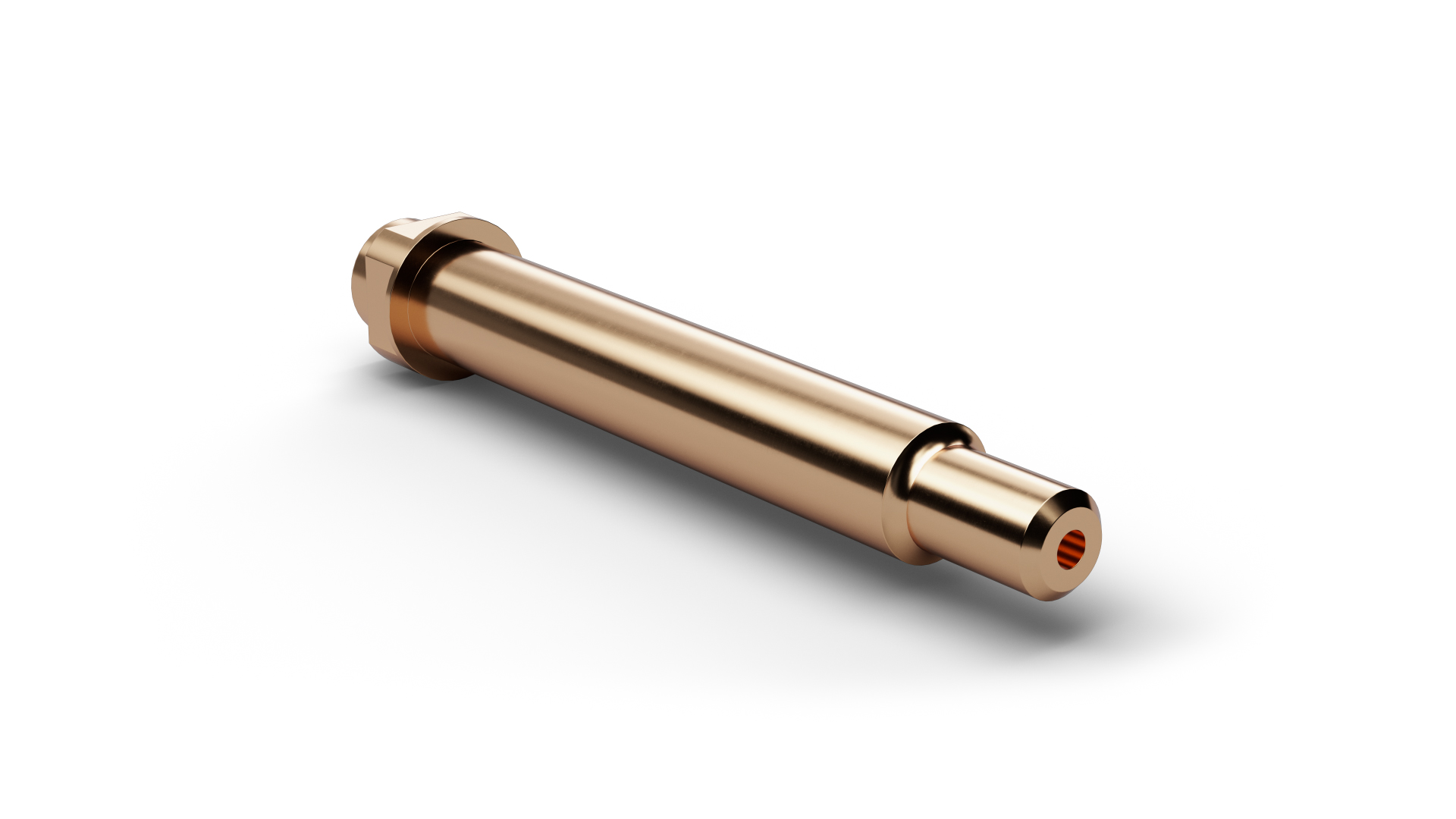

The receptacle H733VS (item number 1014605) guides and positions the compatible threaded probe in a defined location within the fixture or contacting assembly. Key installation dimensions are length 20.2 mm. The receptacle is designed for a pitch of 4 mm / 157 mil. The external thread is 2.0. The Receptacle H733VS is made of brass and is uncoated.
