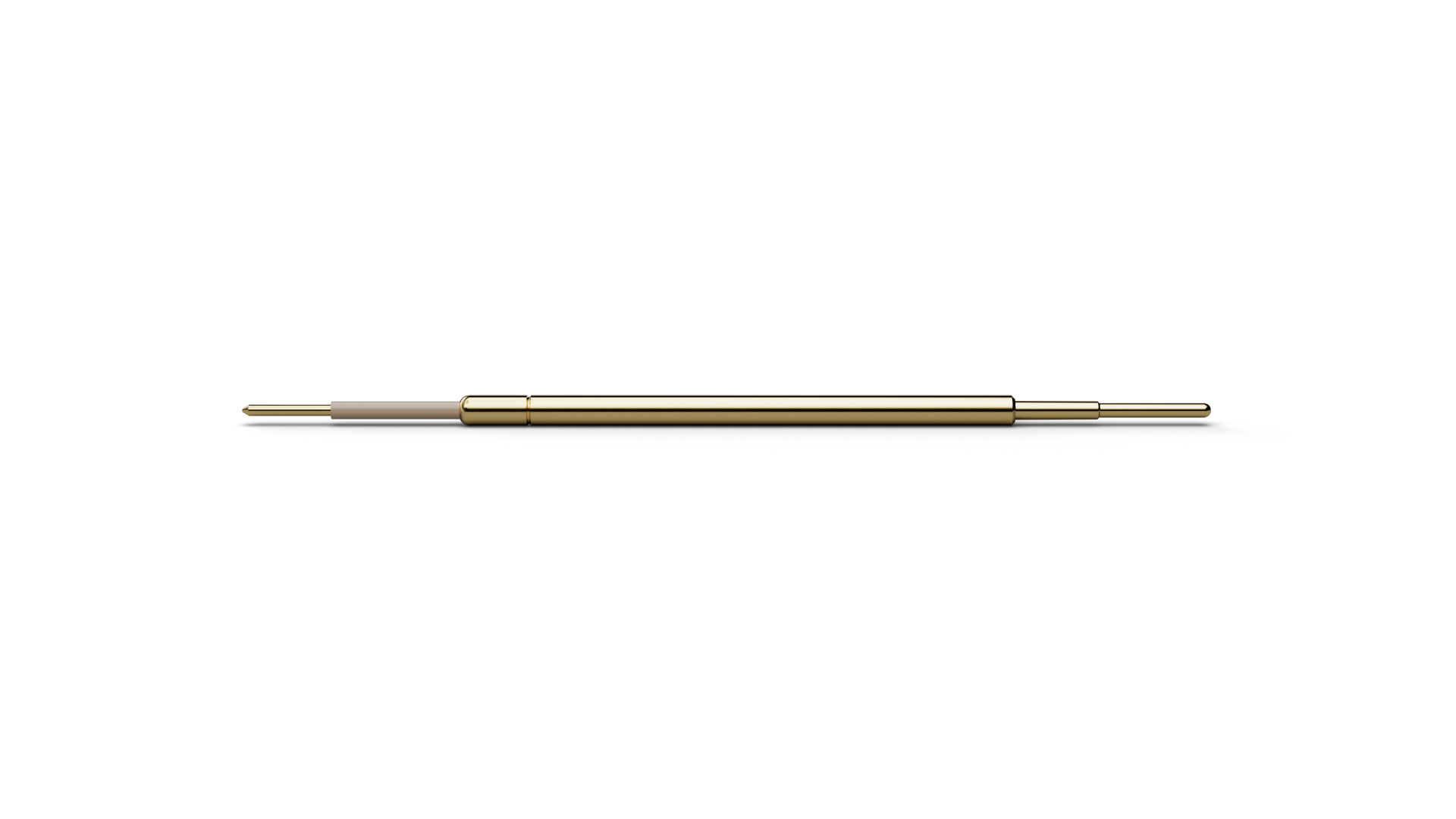

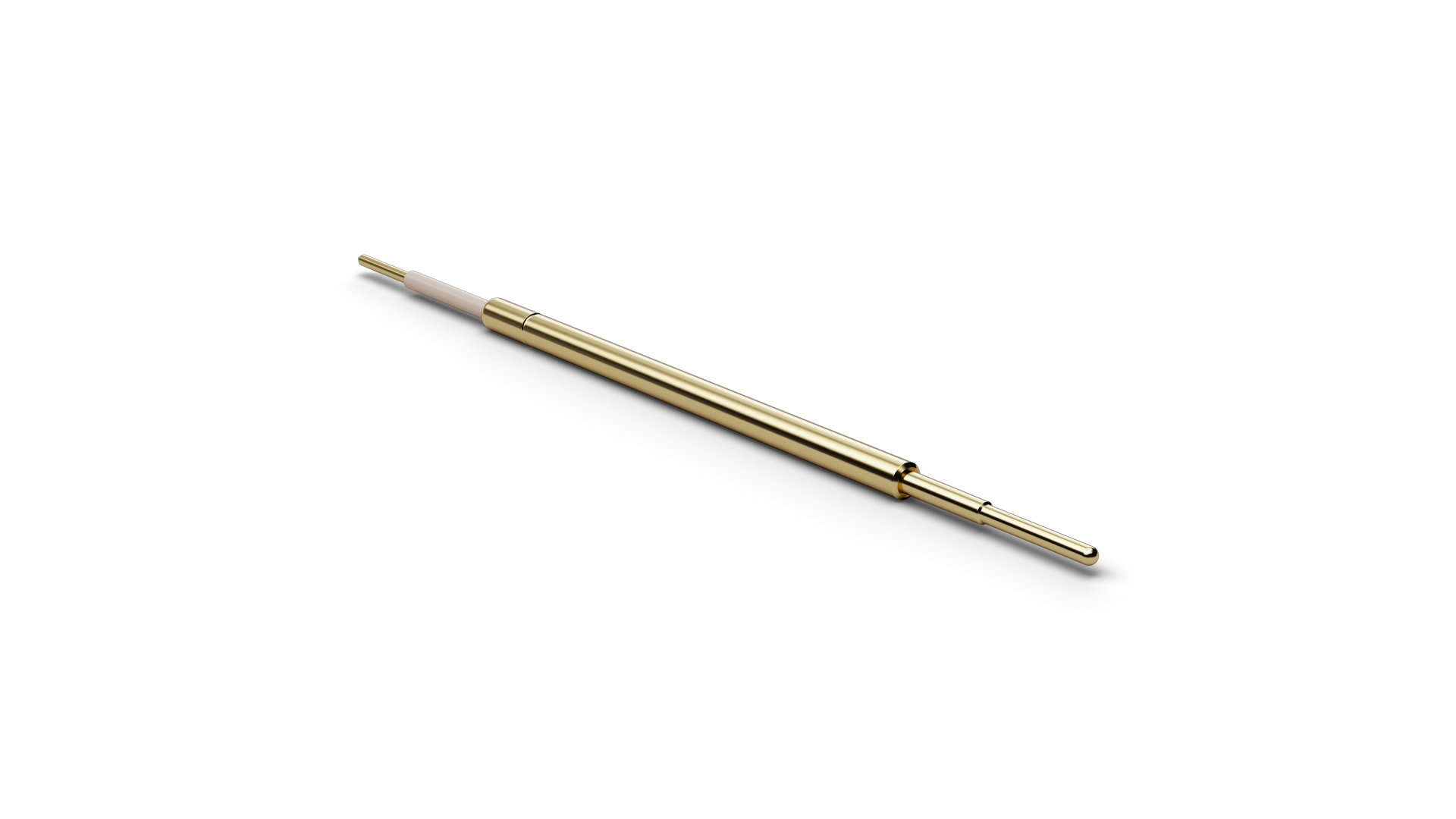

The Switch Probe F86411B065G200 (item number 1014751) combines spring-loaded contacting with a defined switching or sensing function. F86411B065G200 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F86411B065G200 is NO (Normally Open). The switching travel specified for F86411B065G200 is 4 mm. F86411B065G200 combines a pitch of 2.54 mm / 100 mil with tip style 11 (Spherical) and a tip diameter of 0.65 mm. F86411B065G200 operates with 200 cN spring force and 5 mm nominal travel.
