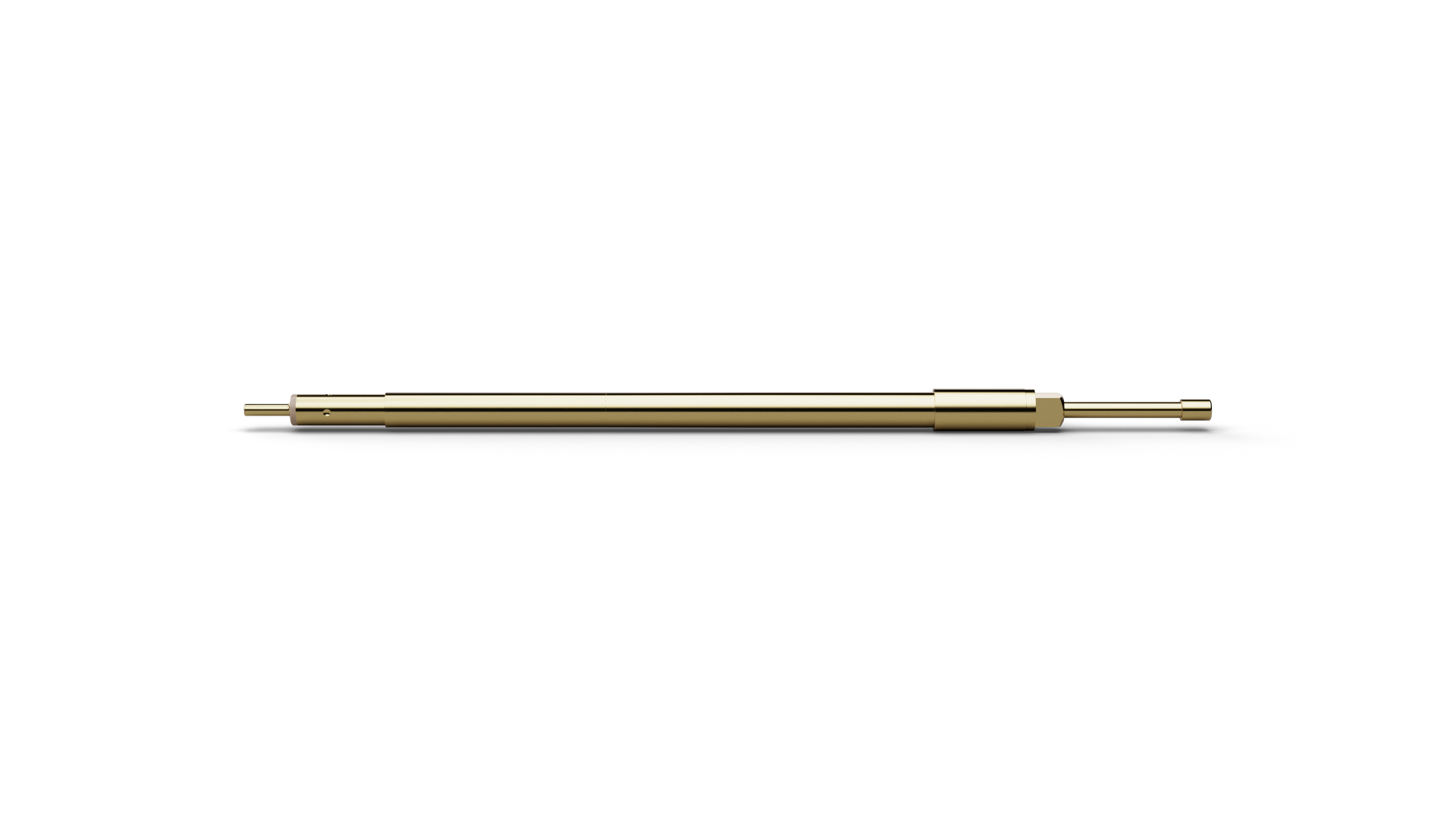

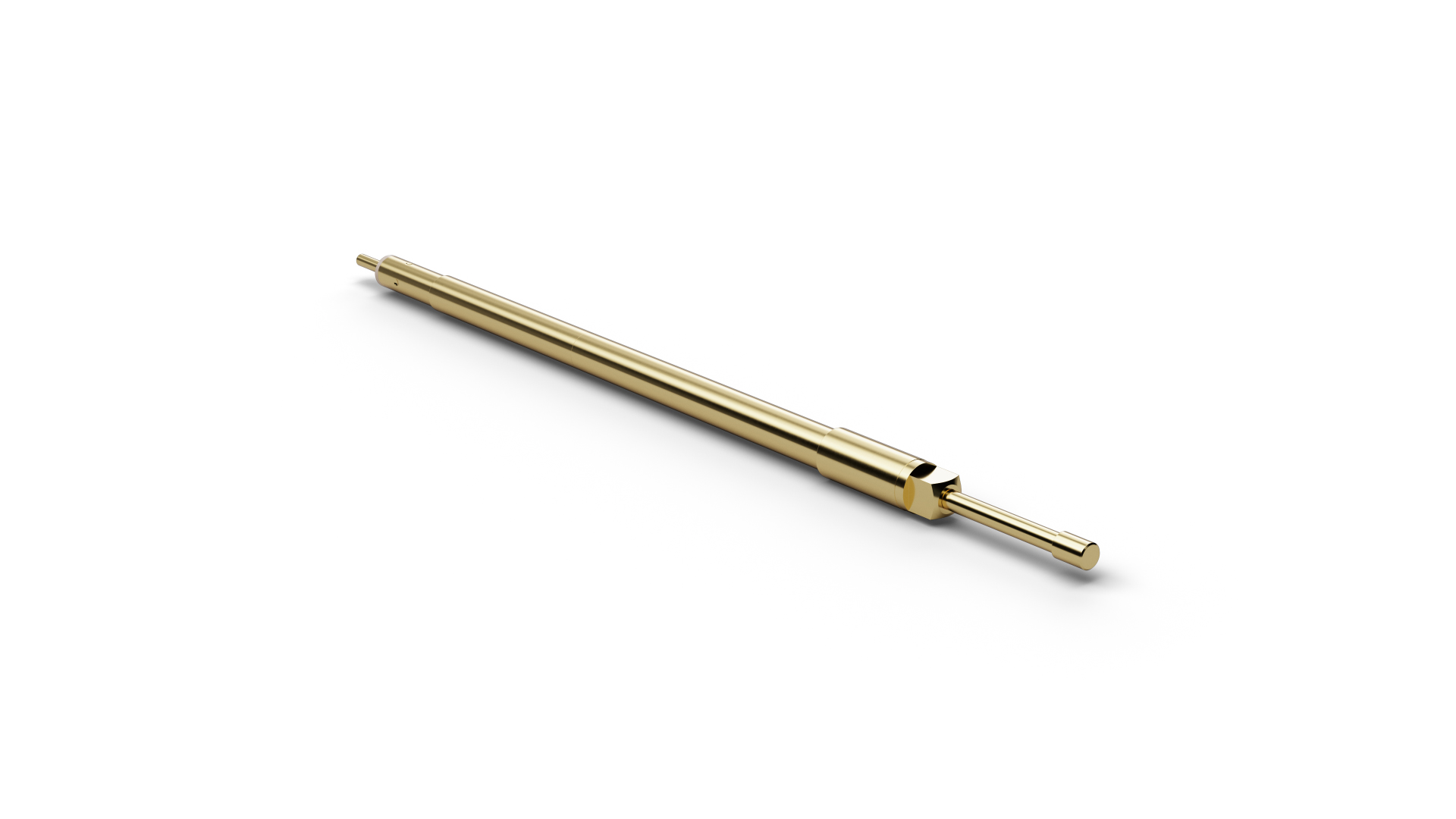

The Push Back Probe V0417B180G15 (item number 1015843) is designed to verify that terminals are correctly locked in connector housings. V0417B180G15 can verify that a terminal remains securely locked in the connector housing and is not pushed back beyond the permitted position during contacting. V0417B180G15 operates with 1500 cN spring force and 9.5 mm nominal travel. Pointing accuracy for V0417B180G15 is specified as ±0.1 mm. The electrical rating of V0417B180G15 combines 8 A continuous current with 30 mΩ typical contact resistance. The pitch of V0417B180G15 is 4 mm / 157 mil.
