기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H878 |
| 추가정의 | Knurl |
| 치수 | |
|---|---|
| 전체 길이(mm) | 16 |
| 프레스 링 직경(mm) | 2.2 |
| 외경(mm) | 2 |
| 나사산 직경 (mm) | 2.05 |
| 칼라 높이(mm) | 0.2 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Brass, Gold |

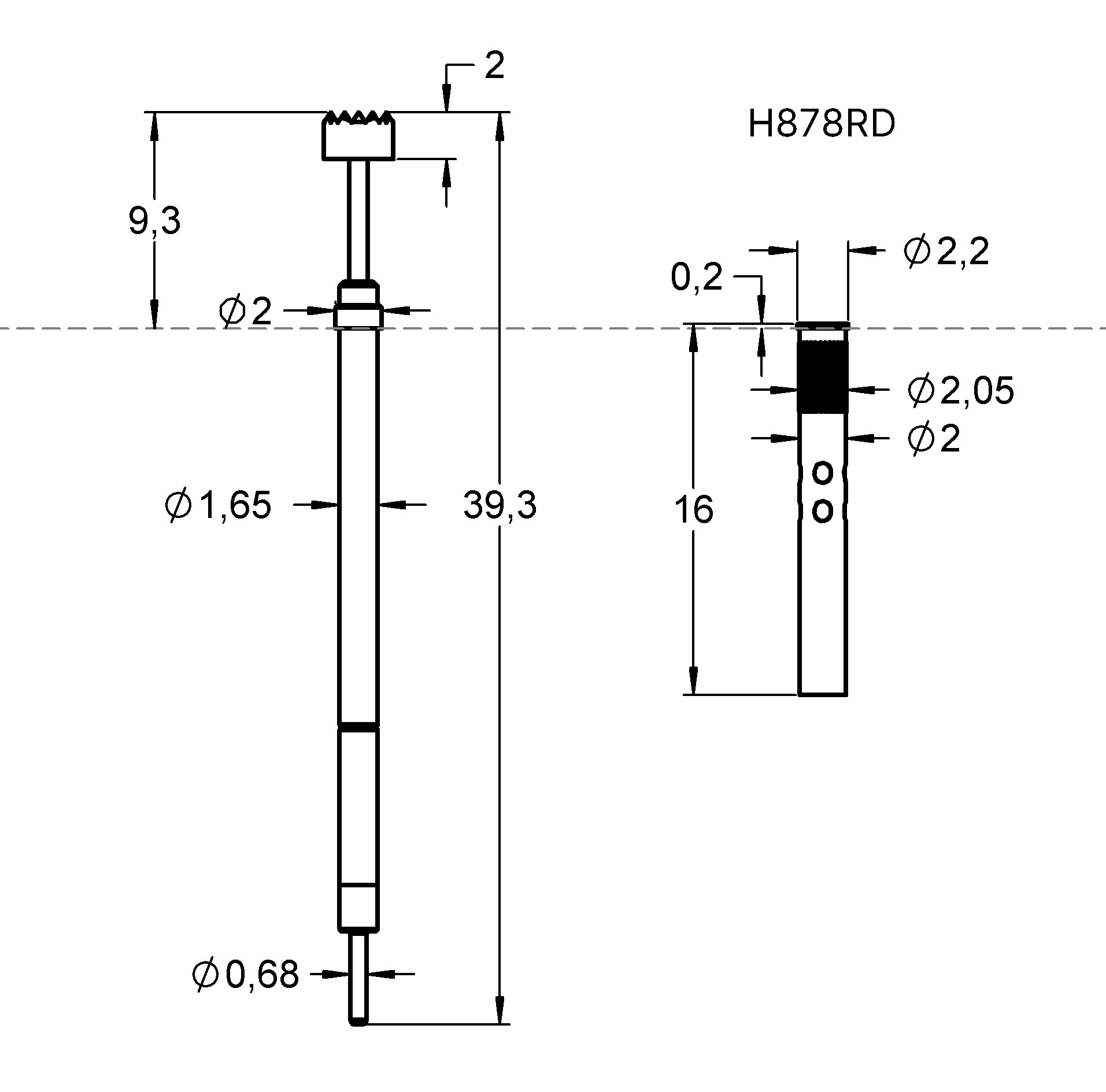

그래픽
Beschreibung des Produkts

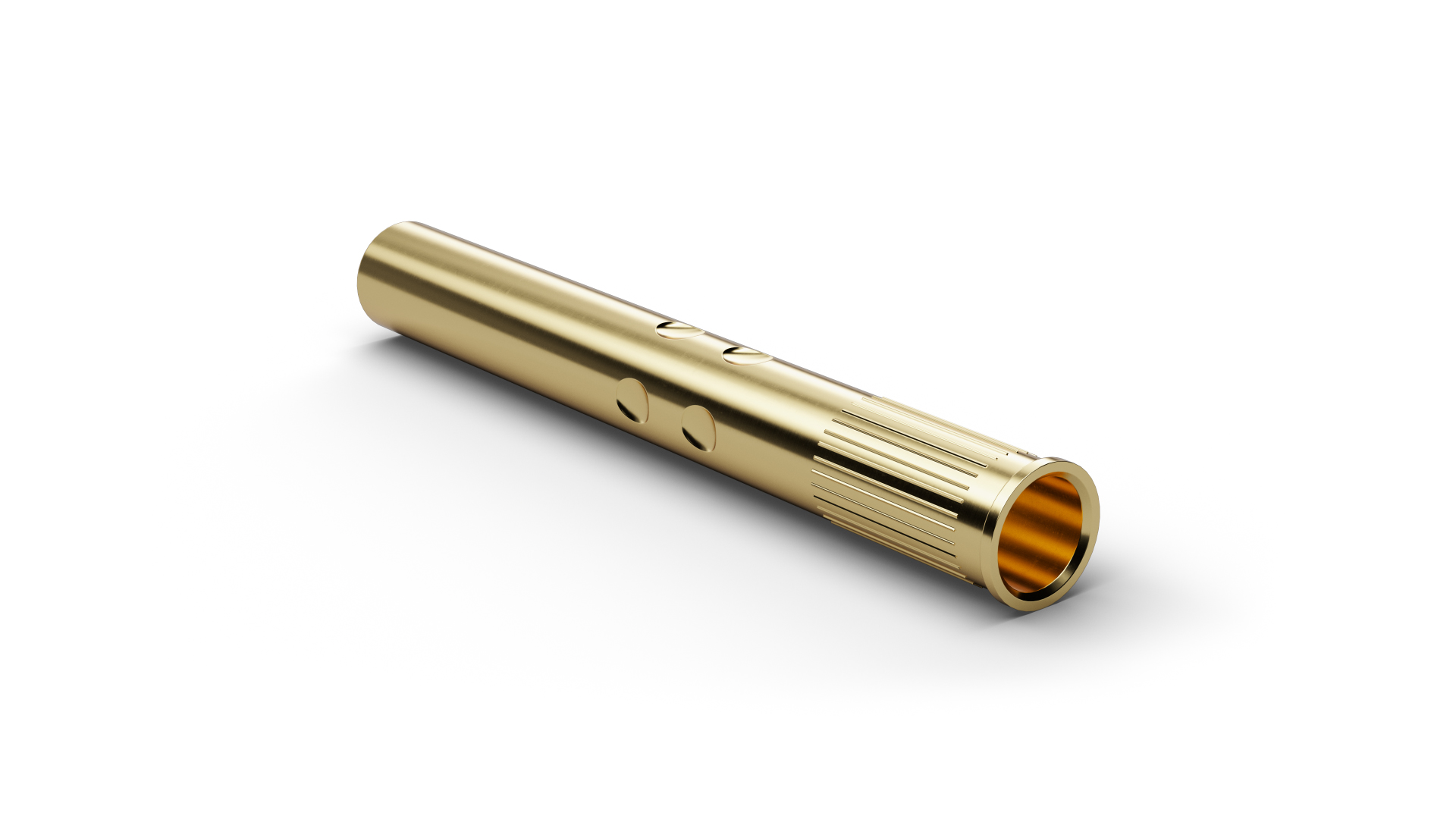

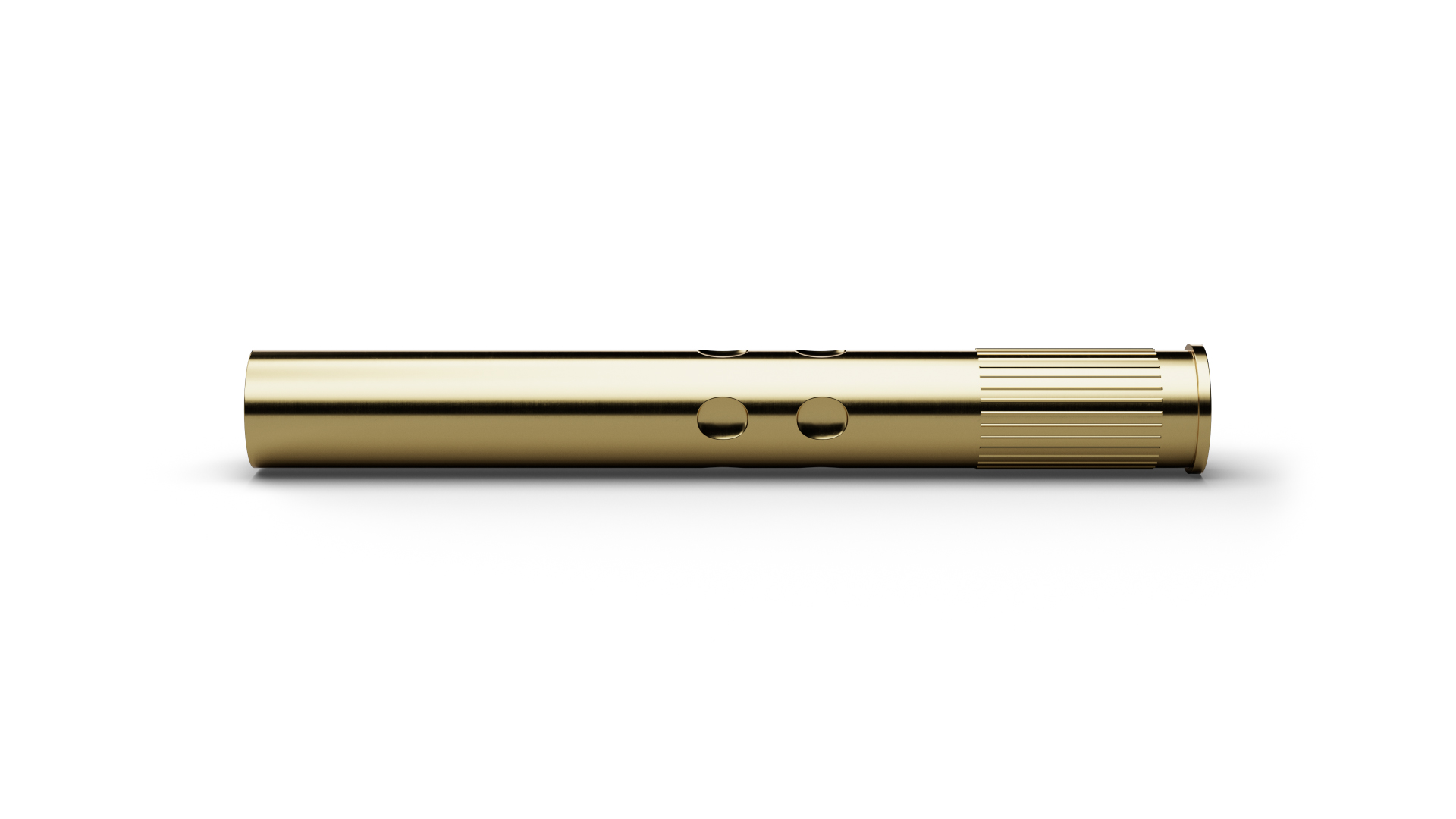

As a receptacle for a compatible Contact Probe, H878RD (item number 1016481) provides mechanical guidance and positioning within the test fixture or contacting module. The Receptacle H878RD includes a knurled section for mechanical retention in the mounting bore. Key installation dimensions are outside diameter 2 mm, length 16 mm. The Receptacle H878RD is made of brass and is gold-plated.
