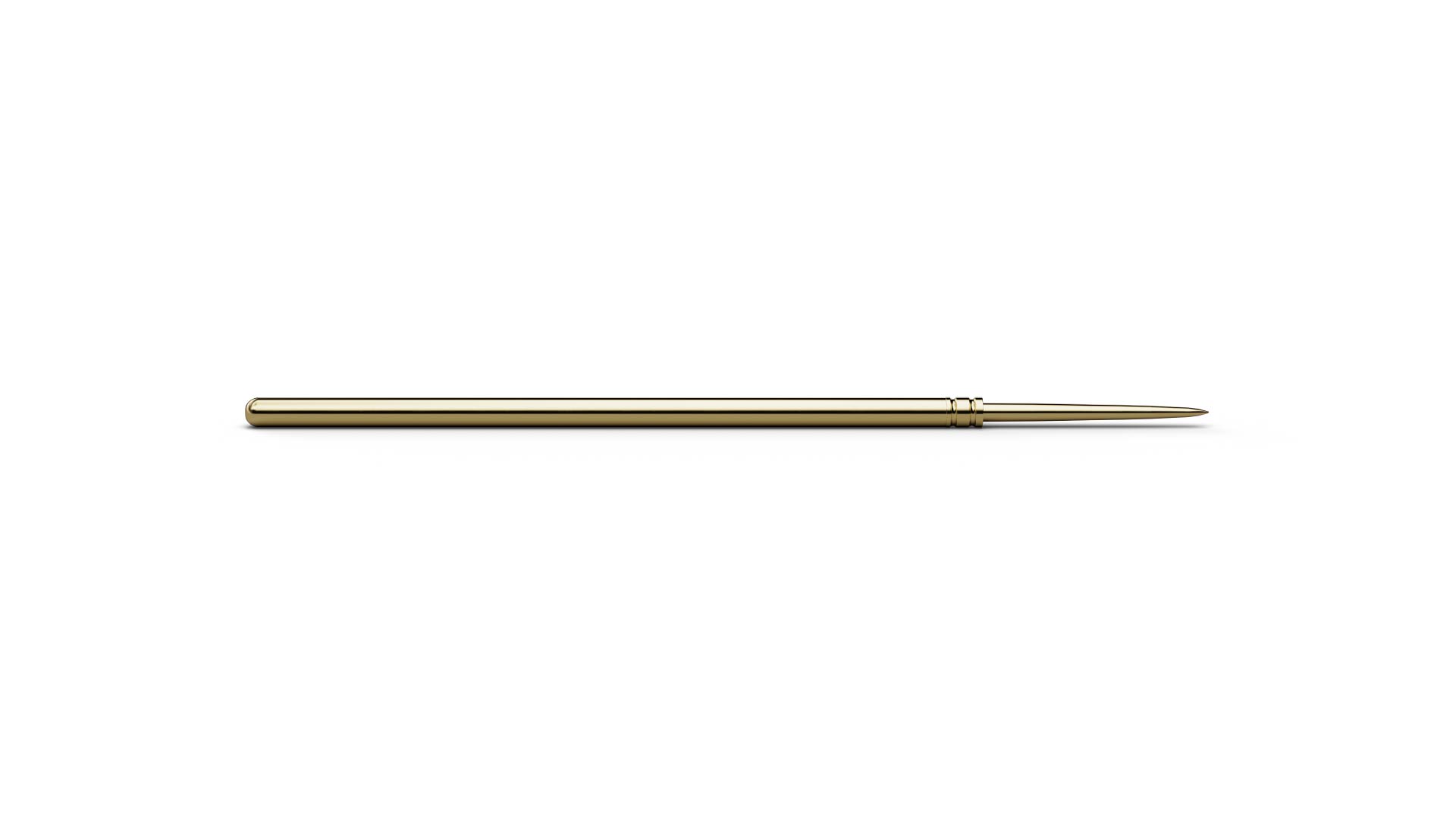

As a Basic Contact Probe, F07510S064L150 (item number 1017312) establishes a spring-loaded electrical connection to the test point. With tip style 10 (Flexible needle), F07510S064L150 combines ICT/FCT use with a geometry intended for solder pads and vias. F07510S064L150 combines a pitch of 1.9 mm / 75 mil with tip style 10 (Flexible needle) and a tip diameter of 0.64 mm. F07510S064L150 operates with 150 cN spring force and 4.3 mm nominal travel. F07510S064L150 is rated for 4 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F07510S064L150 is made of steel and uses Longtime Gold plating.
