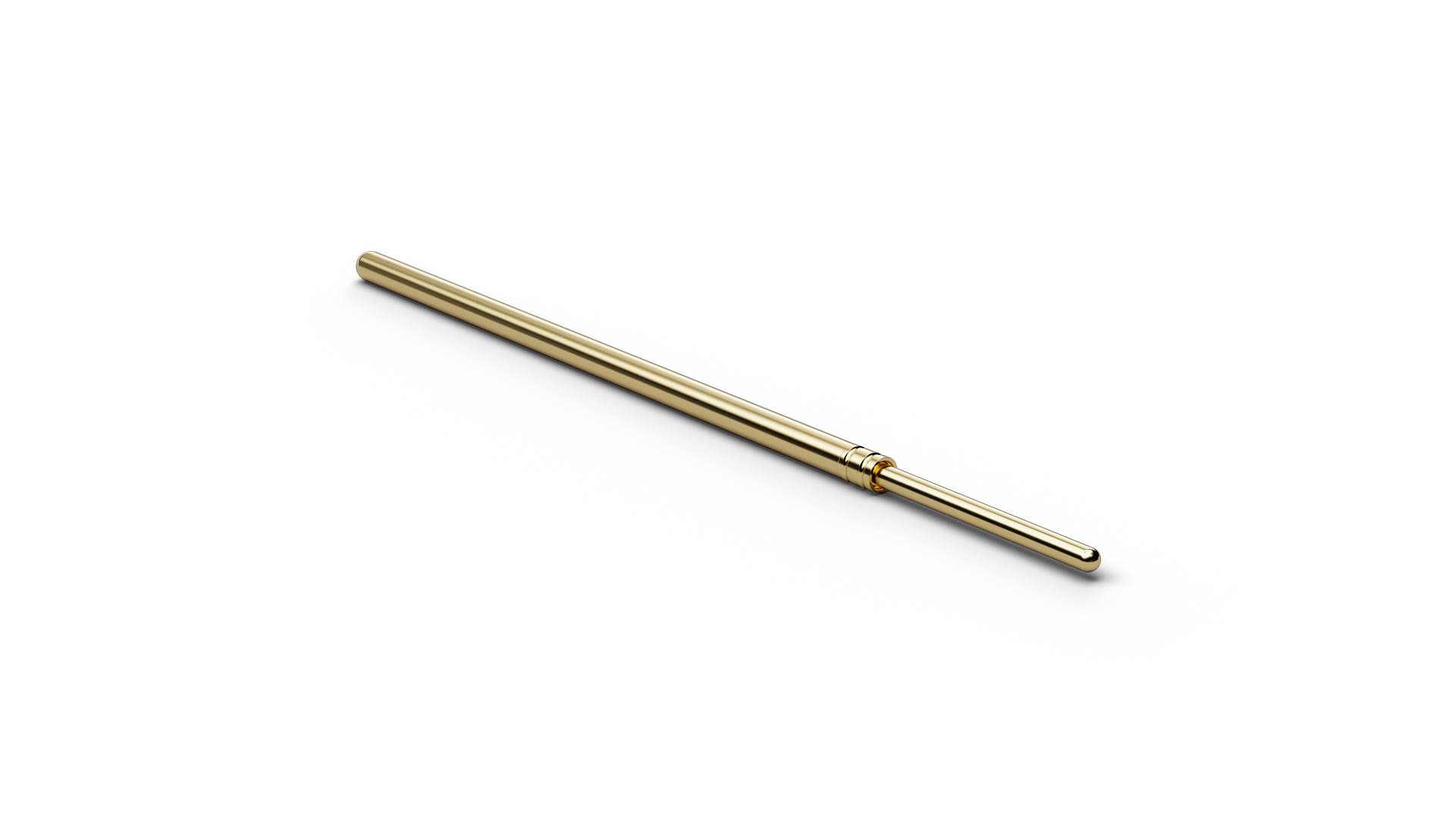

The Basic Contact Probe F07511B064G200 (item number 1017515) is a spring-loaded probe for temporary electrical contact with test points. With tip style 11 (Spherical), F07511B064G200 combines ICT/FCT use with a geometry intended for clean contact surfaces where marking or scratching should be minimized. F07511B064G200 combines a pitch of 1.9 mm / 75 mil with tip style 11 (Spherical) and a tip diameter of 0.64 mm. For F07511B064G200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F07511B064G200 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07511B064G200 is made of beryllium copper and is gold-plated.
