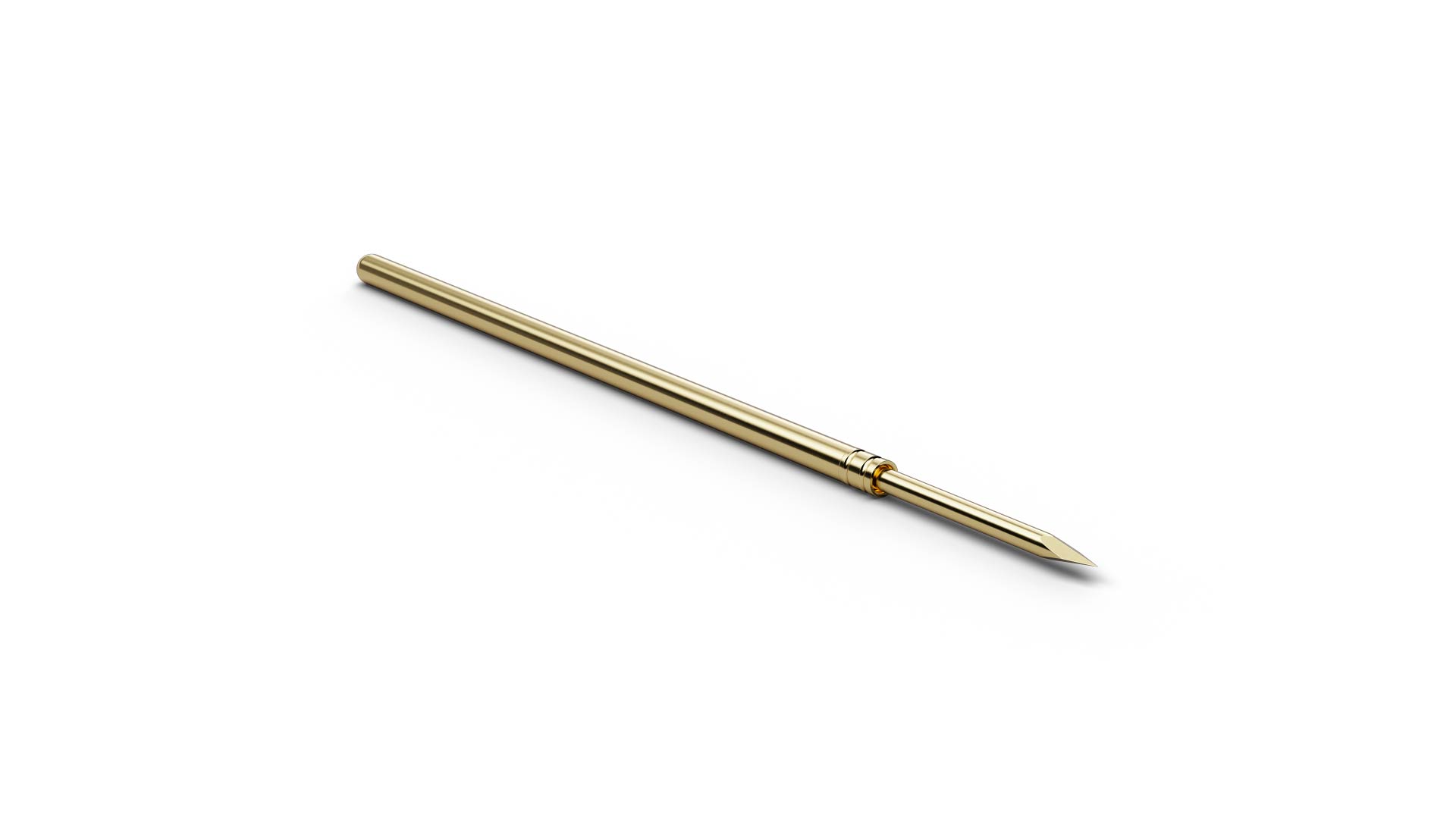

The Basic Contact Probe F07533S064L200 (item number 1017518) is a spring-loaded probe for temporary electrical contact with test points. With tip style 33 (Square lance 38°), F07533S064L200 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F07533S064L200 combines a pitch of 1.9 mm / 75 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.64 mm. For F07533S064L200, spring force is 200 cN at a nominal travel of 4.3 mm. The electrical rating of F07533S064L200 combines 4 A continuous current with 20 mΩ typical contact resistance. The plunger in F07533S064L200 is made of steel and uses Longtime Gold plating.
