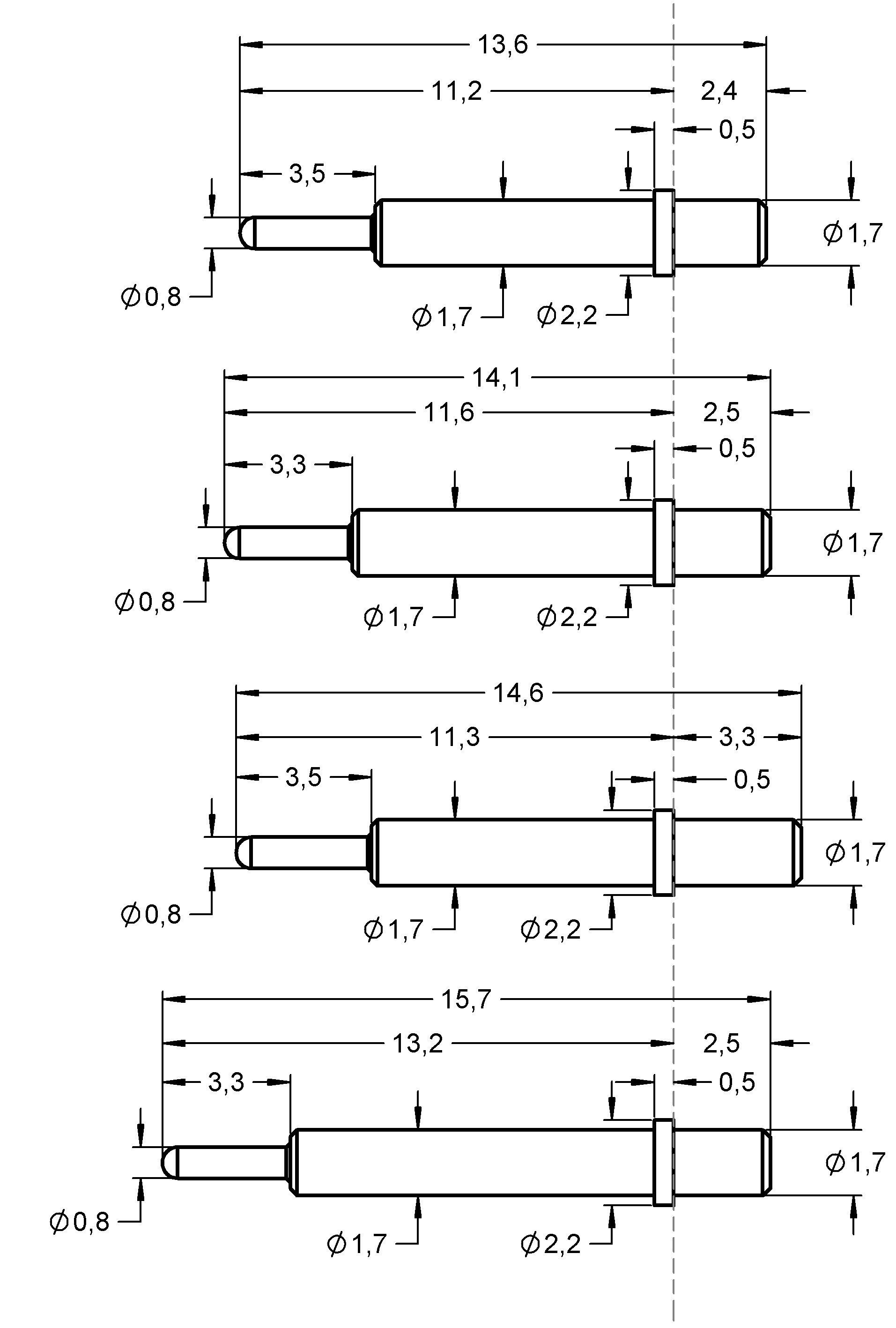

P17011B080G450ML141 (item number 1018200) is a Pogo Connector for contact points that are connected and released frequently. As a spring-loaded detachable interface, P17011B080G450ML141 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P17011B080G450ML141 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. The design combines a pitch of 2.7 mm / 106 mil with tip style 11 (Spherical) and a tip diameter of 0.8 mm. For P17011B080G450ML141, spring force is 450 cN at a nominal travel of 1.5 mm. The continuous-current rating of P17011B080G450ML141 is 5 A.
