기술 데이터
| 일반 사항 | |
|---|---|
| 형태/계열 | H561 |
| 거리(mm/mil) | 1,90 / 75 |
| 치수 | |
|---|---|
| 전체 길이(mm) | 20.5 |
| 프레스 링 직경(mm) | 1.45 |
| 외경(mm) | 1.32 |
| 재료 및 표면 | |
|---|---|
| 재료, 코팅 | Nickel silver, Gold |
| 기계적 사양 | |
|---|---|
| 연결 | Wire Round |
| 전기적 사양 | |
|---|---|
| 연속 전류(A) | 4 |

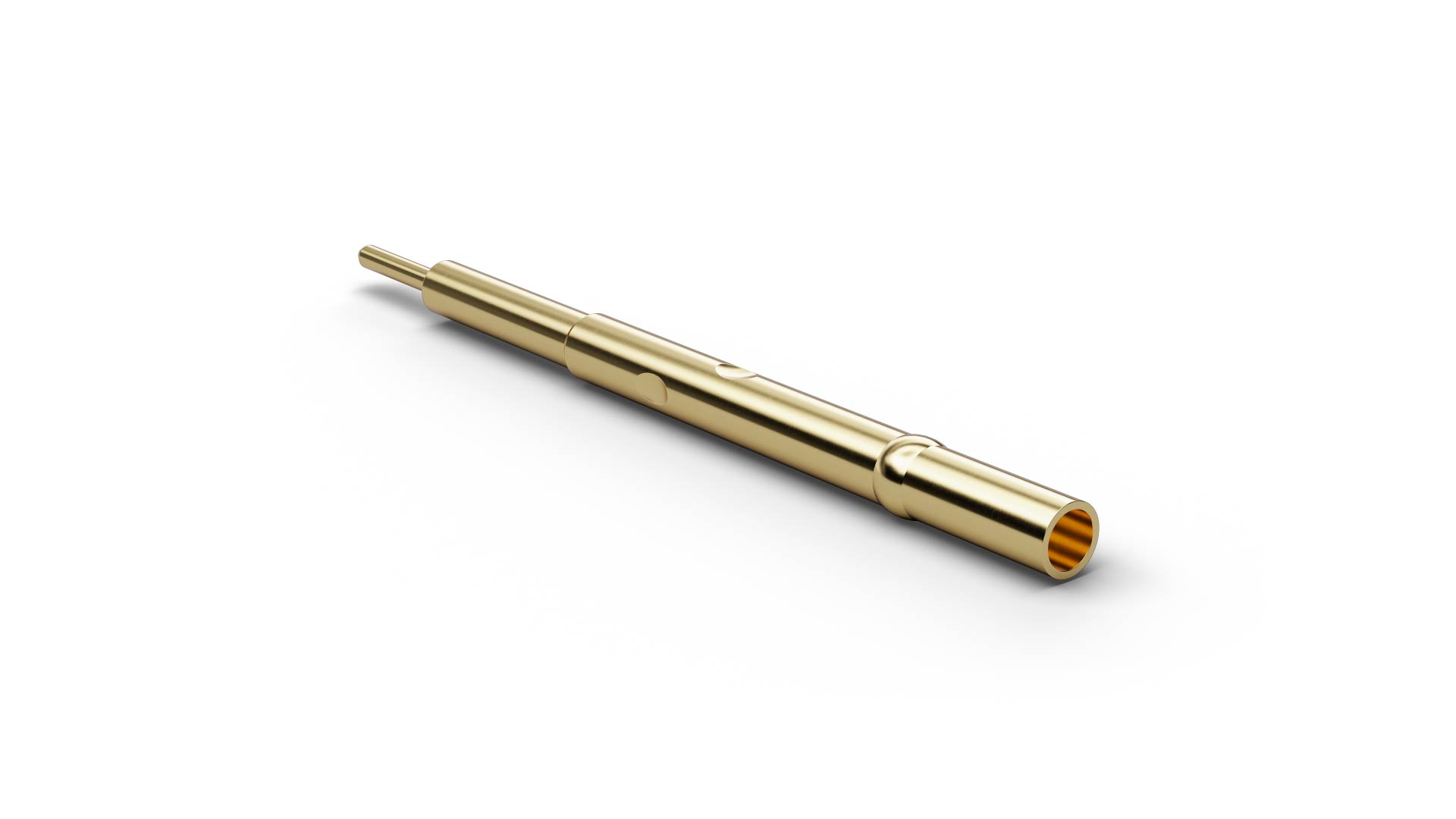

그래픽
Beschreibung des Produkts
As a receptacle for a compatible Contact Probe, H561WR-4.0 (item number 1019590) provides mechanical guidance and positioning within the test fixture or contacting module. The electrical connection of H561WR-4.0 uses a wire round. Key installation dimensions are outside diameter 1.32 mm, length 20.5 mm. The Receptacle H561WR-4.0 is designed for a pitch of 1.9 mm / 75 mil. The Receptacle H561WR-4.0 is made of nickel silver and is gold-plated. The continuous-current rating of H561WR-4.0 is 4 A.
