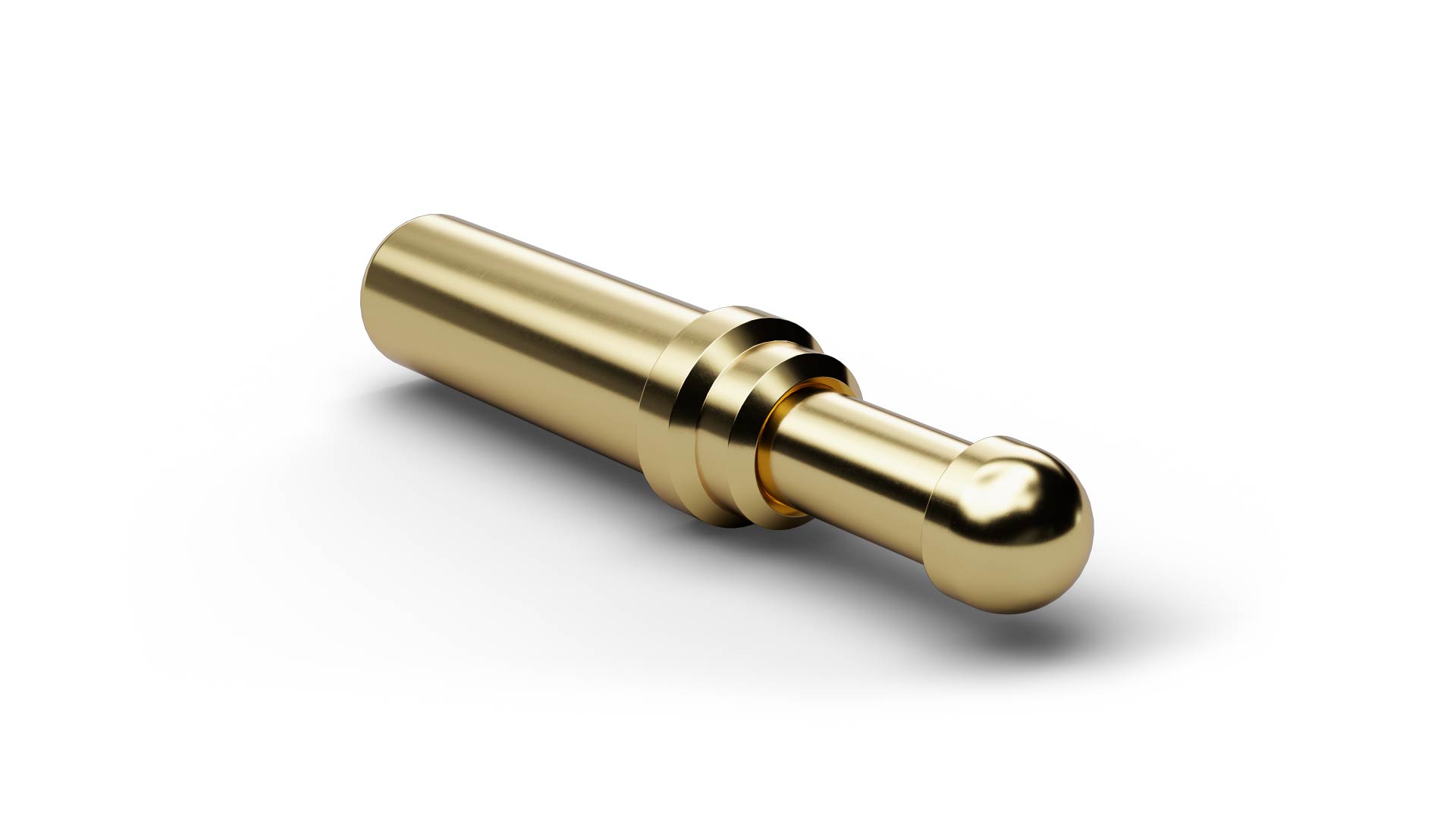

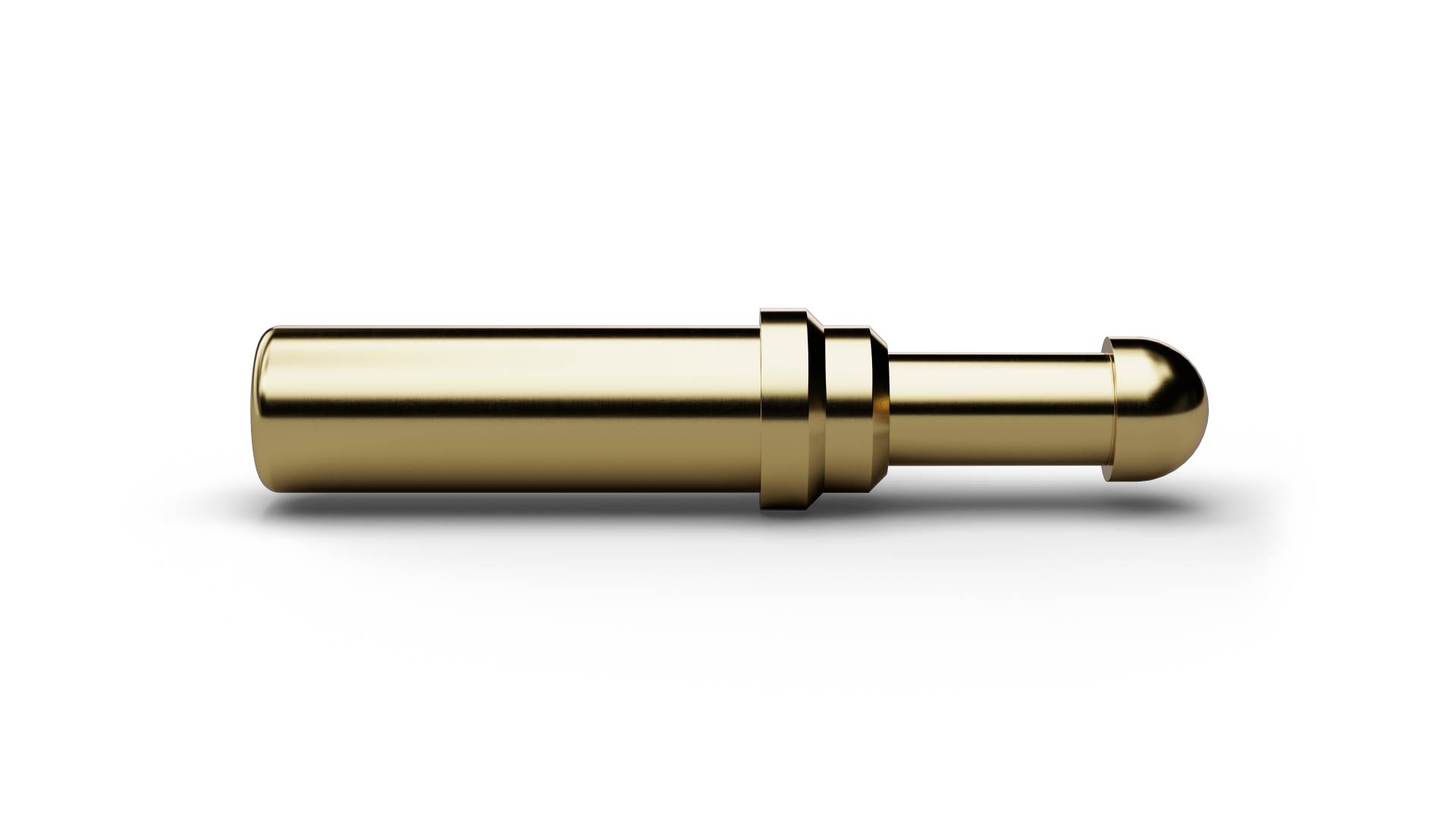

The Pogo Connector P26512E230U150TL150ST (item number 1020253) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P26512E230U150TL150ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P26512E230U150TL150ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P26512E230U150TL150ST, a pitch of 4 mm / 157 mil is combined with 150 cN spring force and 2.8 mm nominal travel. The probe is rated for 2 A continuous current with a typical contact resistance of 500 mΩ. On P26512E230U150TL150ST, tip style 12 (Spherical stepped) has a diameter of 2.3 mm.
