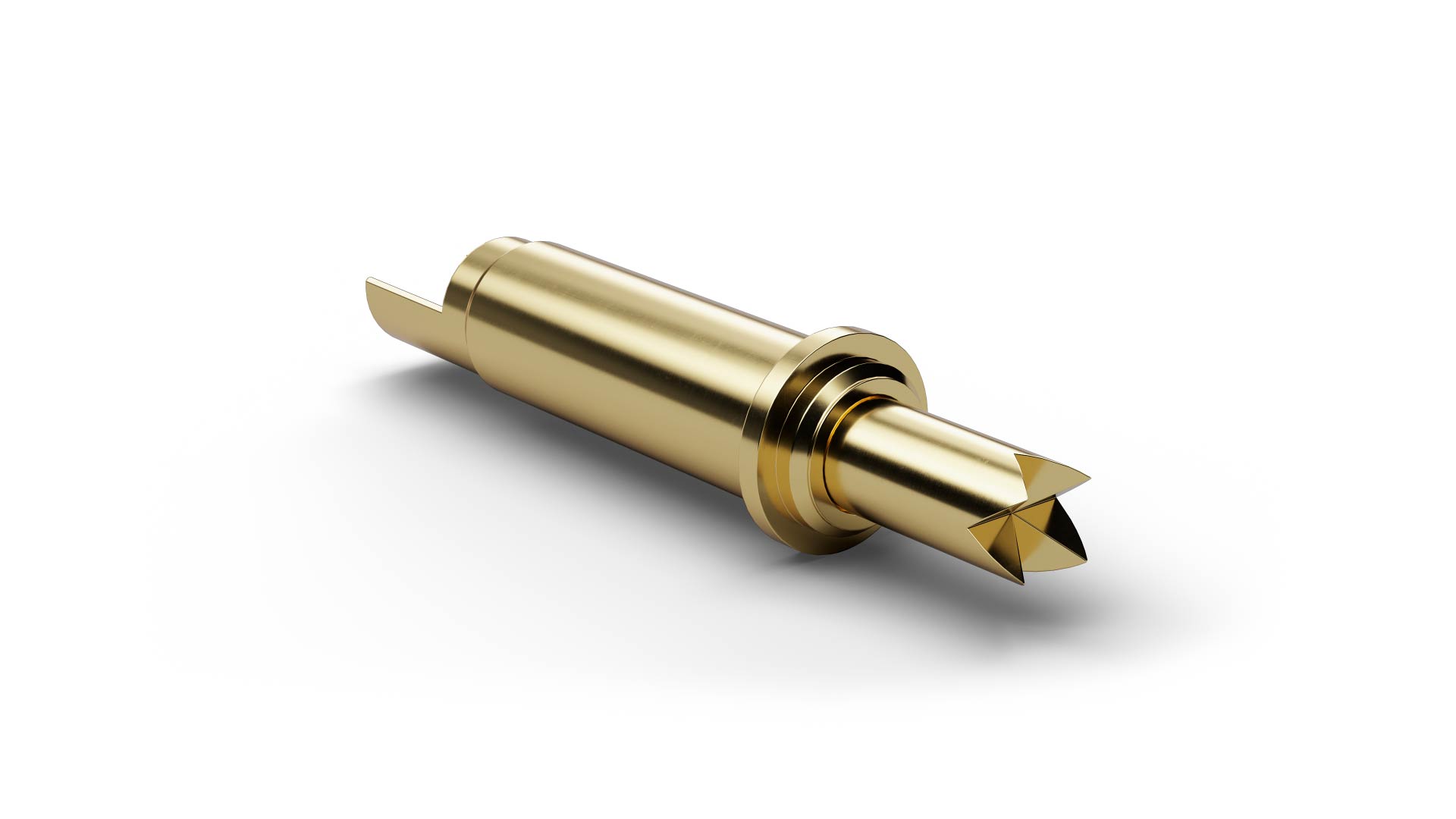

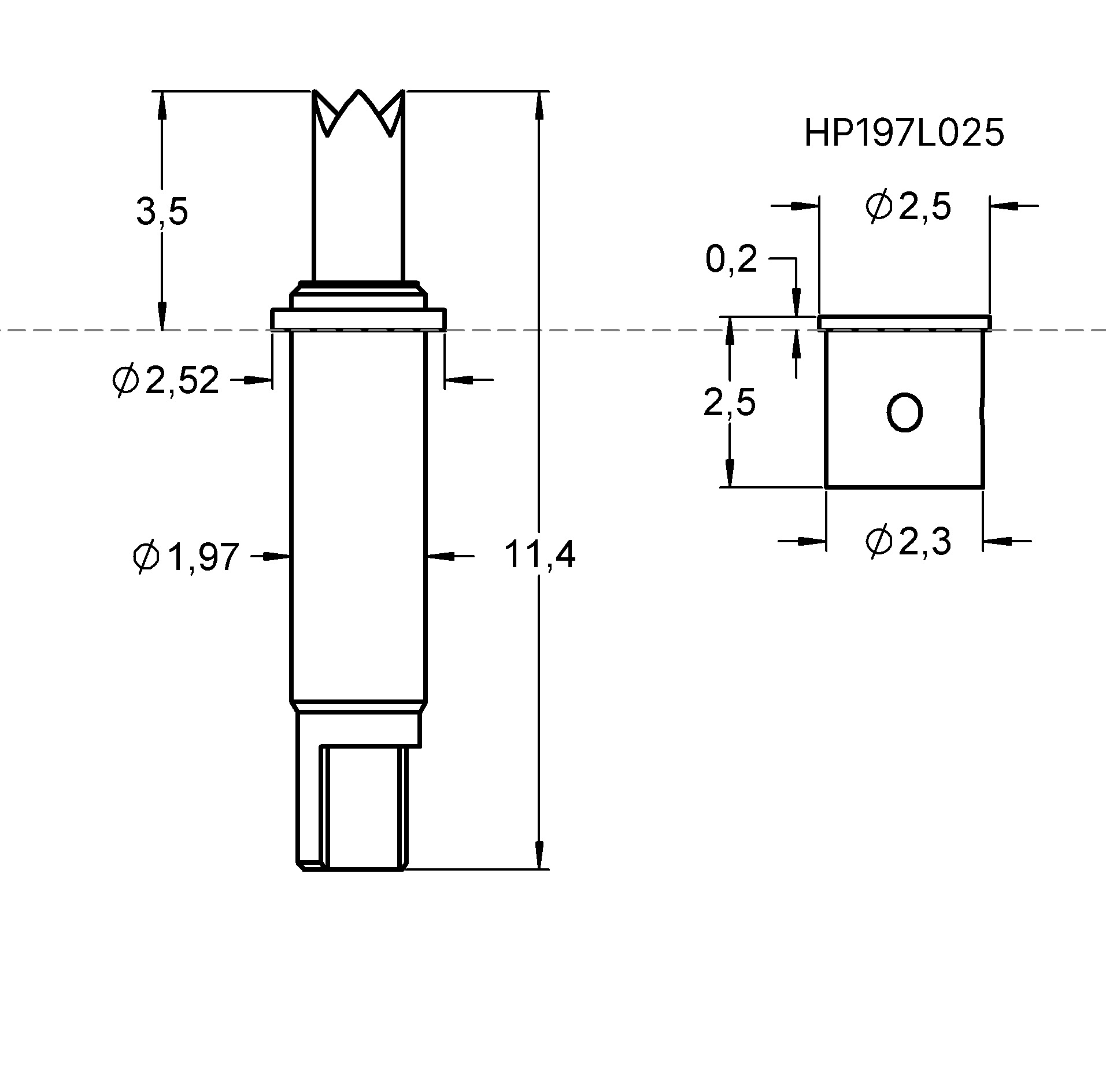

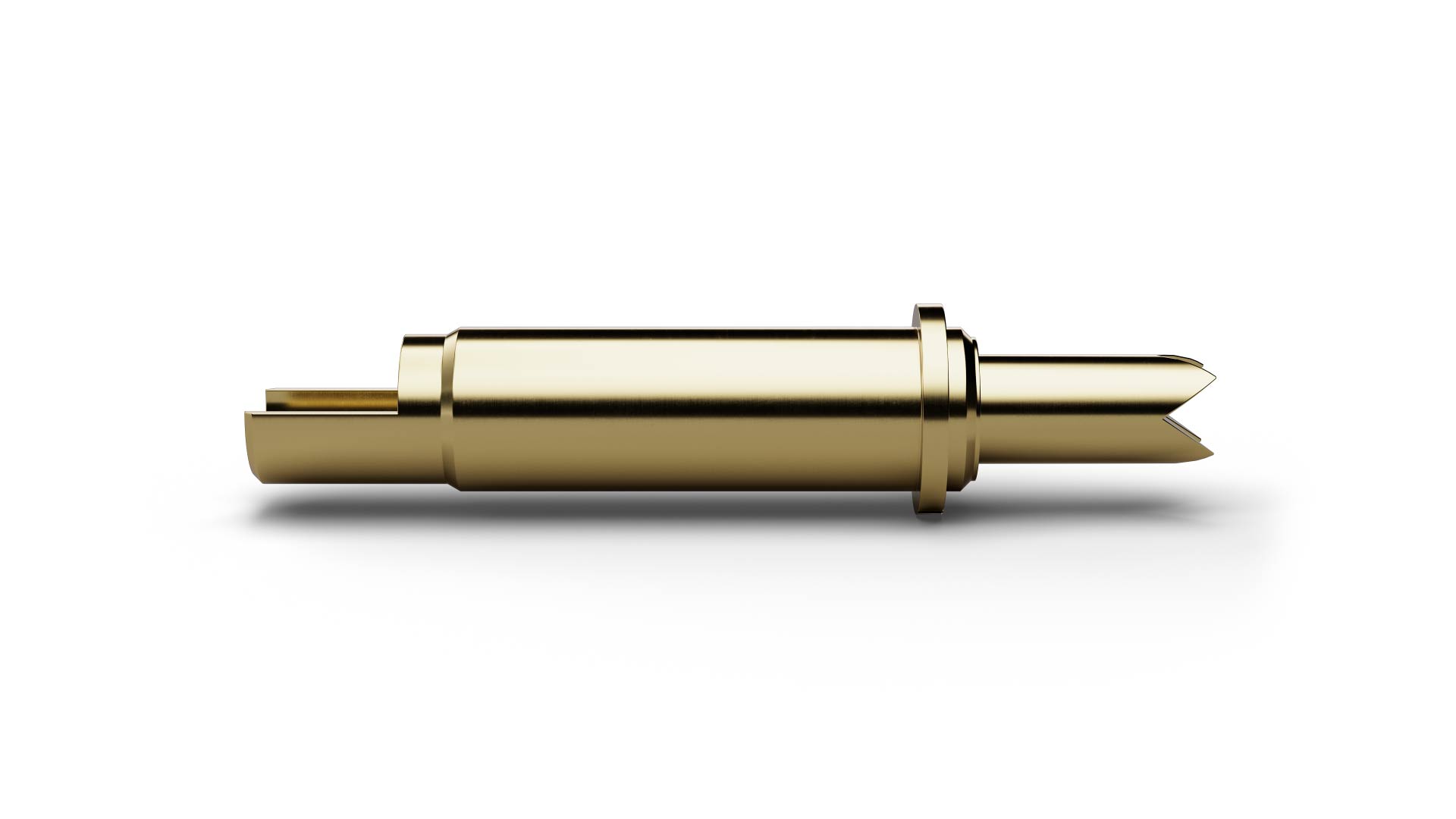

The Pogo Connector P19729B130G130TL114LA (item number 1021811) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P19729B130G130TL114LA is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P19729B130G130TL114LA is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. On P19729B130G130TL114LA, a pitch of 3 mm / 118 mil is combined with 130 cN spring force and 1.5 mm nominal travel. The electrical rating of P19729B130G130TL114LA combines 9 A continuous current with 100 mΩ typical contact resistance. On P19729B130G130TL114LA, tip style 29 (4-point crown) has a diameter of 1.3 mm.
