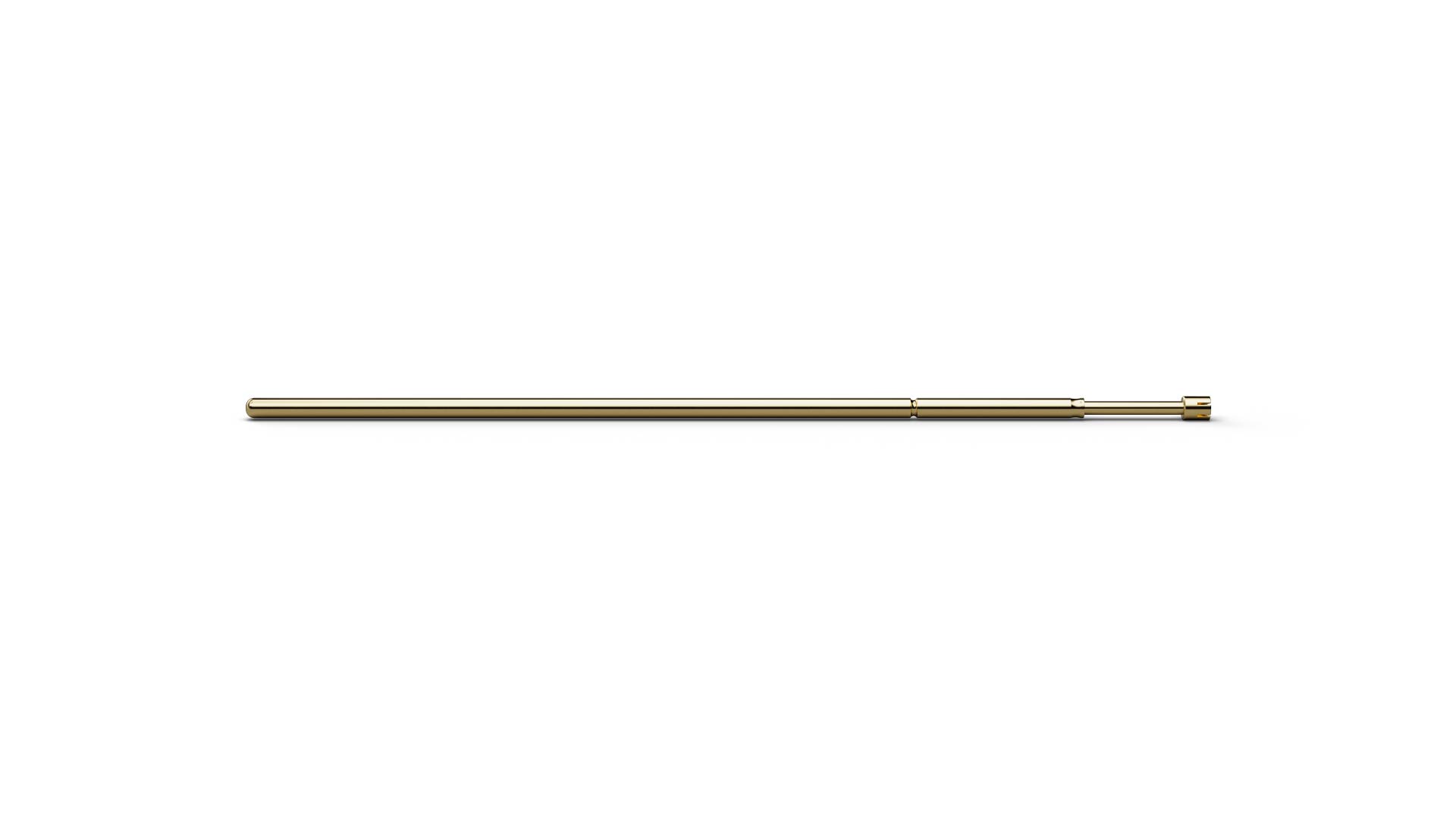

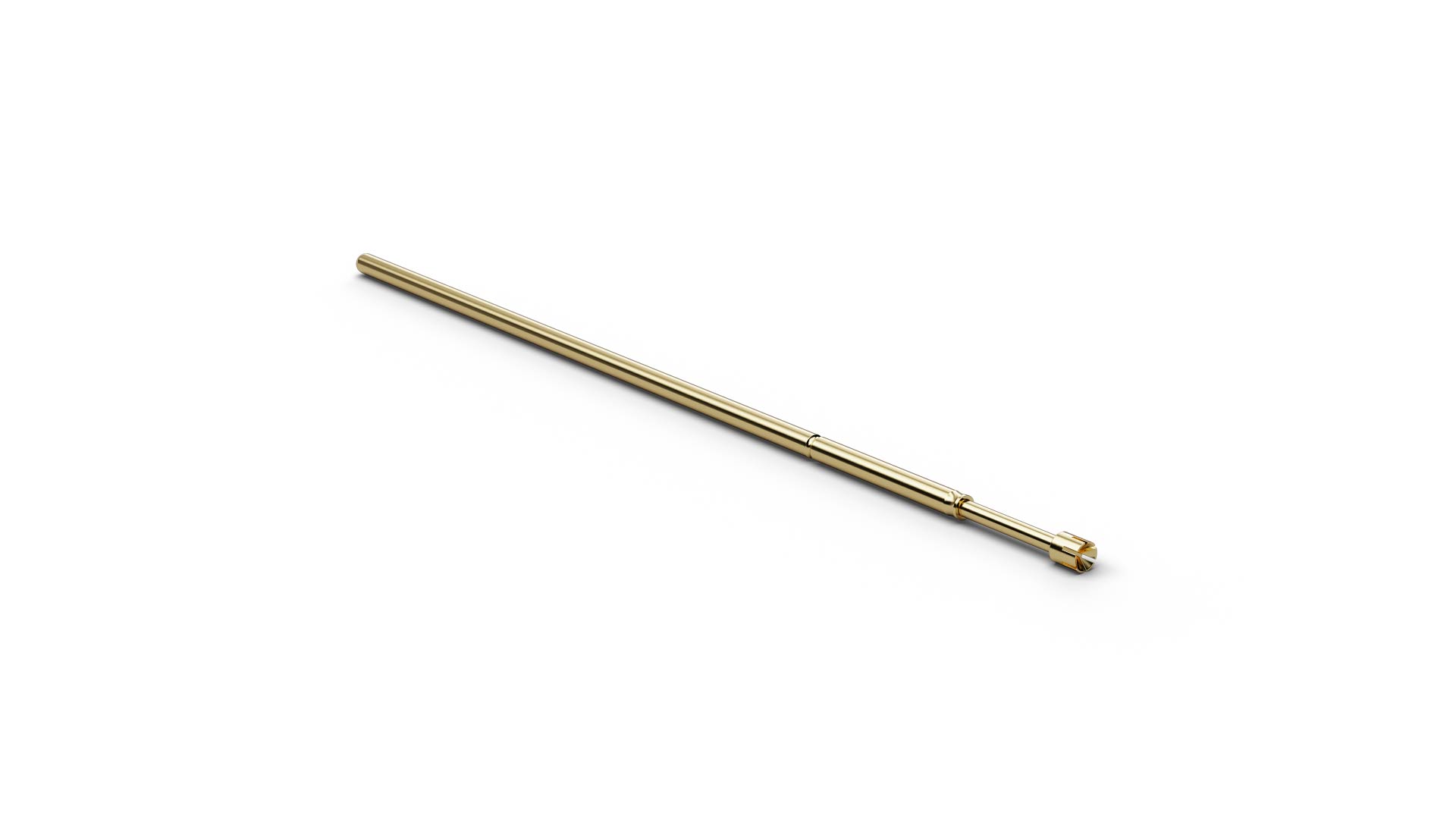

The Basic Contact Probe F08655B090G130 (item number 1022361) is a spring-loaded probe for temporary electrical contact with test points. With tip style 55 (Concave stepped (self-cleaning)), F08655B090G130 combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F08655B090G130 combines a pitch of 1.27 mm / 50 mil with tip style 55 (Concave stepped (self-cleaning)) and a tip diameter of 0.9 mm. F08655B090G130 operates with 130 cN spring force and 2 mm nominal travel. The electrical rating of F08655B090G130 combines 3 A continuous current with 25 mΩ typical contact resistance. The plunger in F08655B090G130 is made of beryllium copper and is gold-plated.
