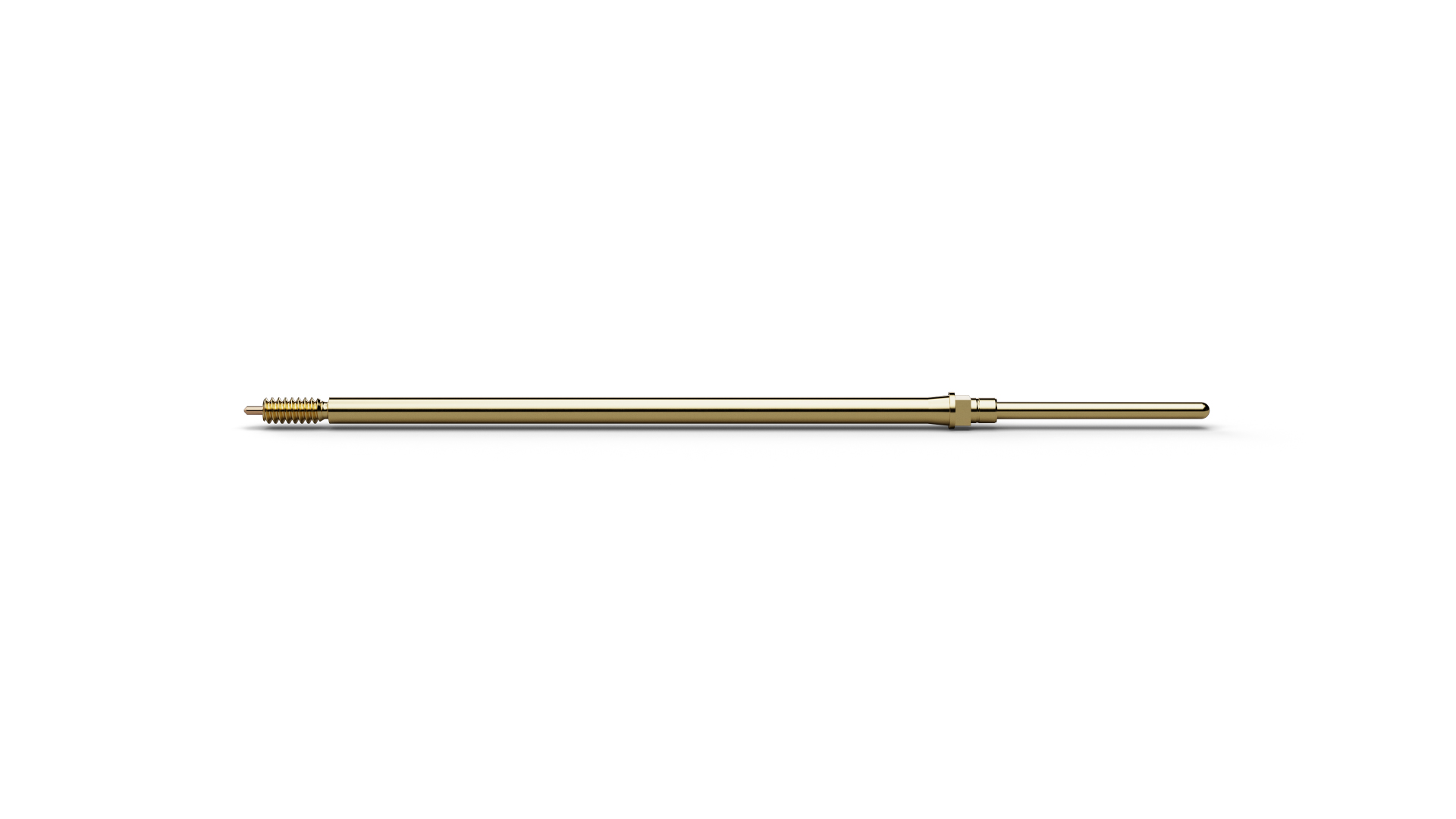

The Position Sensor Probe PS17511B064G100 (item number 1024150) combines spring-loaded contacting with a defined switching or sensing function. PS17511B064G100 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. PS17511B064G100 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For PS17511B064G100, spring force is 100 cN at a nominal travel of 4.3 mm. The electrical rating of PS17511B064G100 combines 4 A continuous current with 20 mΩ typical contact resistance. PS17511B064G100 combines a pitch of 1.9 mm / 75 mil with tip style 11 (Spherical) and a tip diameter of 0.64 mm.
